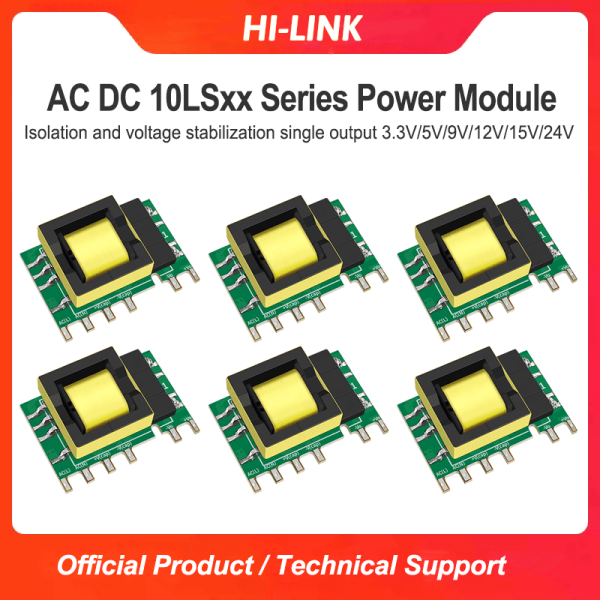

10LS03/10LS05/10LS09/10LS12/10LS15/10LS24 Hi-link AC-DC 220v to 3.3/5/9/12/15/24V 5w Step Down Mini Power Supply Converter Module

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

Quantity:

Product Details

Download files:

Product Features

Global universal input voltage(85-265VAC)
Input and output isolation voltage 3000VAC
Low power consumption, green enviroment protection, no-load loss＜0.1W
High efficiency, high power density
Long life design, continuous working time is greater then 100,000hours
High output-quality environmentally friendly waterproof thermal conductive glue potting, dustproof,moisture-proof, shockproof, flame-retardant
Meet UL/CE/EMC and safety testing requirenments
Can be used in medical, industrial control, electric power, instrumentation, communication,railway and other fields

Environment Condition

Working Temerature	-25—+60 ℃
Storage temperature	-40—+80 ℃
Relative humidity	5—95 %
Thermal methods	Natural cooling
Atmospheric pressure	80—106 Kpa
Altitude	≤2000 m
Vibration coefficient	10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes. Meets secondary road transportation requirements

Input Features( test at room temperature)

Rated input voltage	100-240Vac
Input vlotage range	85-265VAC/120-350VDC
The maximum input CURRENT	≤0.2A
Input inrush current	≤10A
Input low start	≤50mS
Long-term reliablity	MTBF≥100000H
External fuse recommended	1A/250Vac or 10Ω wire wound resistance, Slow blow

Output Features(3.3V/2000mA)

No-load rated output voltage	3.3±0.2Vdc
Full-load rated output voltage	3.3±0.2Vdc
Short term maximum output current	≥2400mA
Rated output current	2000mA
Voltage regulation rate	±0.2%
Load regulation rate	±0.5%
Switching on/off overshoot amplitude	（Rated input voltage, output with 10% load) ≤5%VO

Output Features(5V/2000mA)

No-load rated output voltage	5±0.1Vdc
Full-load rated output voltage	5±0.1Vdc
Short term maximum output current	≥1200mA
Rated output current	1000mA
Voltage regulation rate	±0.2%
Load regulation rate	±0.5%
Switching on/off overshoot amplitude	（Rated input voltage, output with 10% load) ≤5%VO

Output Features(12V/830mA)

No-load rated output voltage	12±0.3Vdc
Full-load rated output voltage	12±0.3Vdc
Short term maximum output current	≥1100mA
Rated output current	830mA
Voltage regulation rate	±0.3%
Load regulation rate	±0.5%
Switching on/off overshoot amplitude	（Rated input voltage, output with 10% load) ≤5%VO

Output Features(24V/420mA)

No-load rated output voltage	24±0.6Vdc
Full-load rated output voltage	24±0.6Vdc
Short term maximum output current	≥620mA
Rated output current	420mA
Voltage regulation rate	±0.6%
Load regulation rate	±0.5%
Switching on/off overshoot amplitude	（Rated input voltage, output with 10% load) ≤5%VO

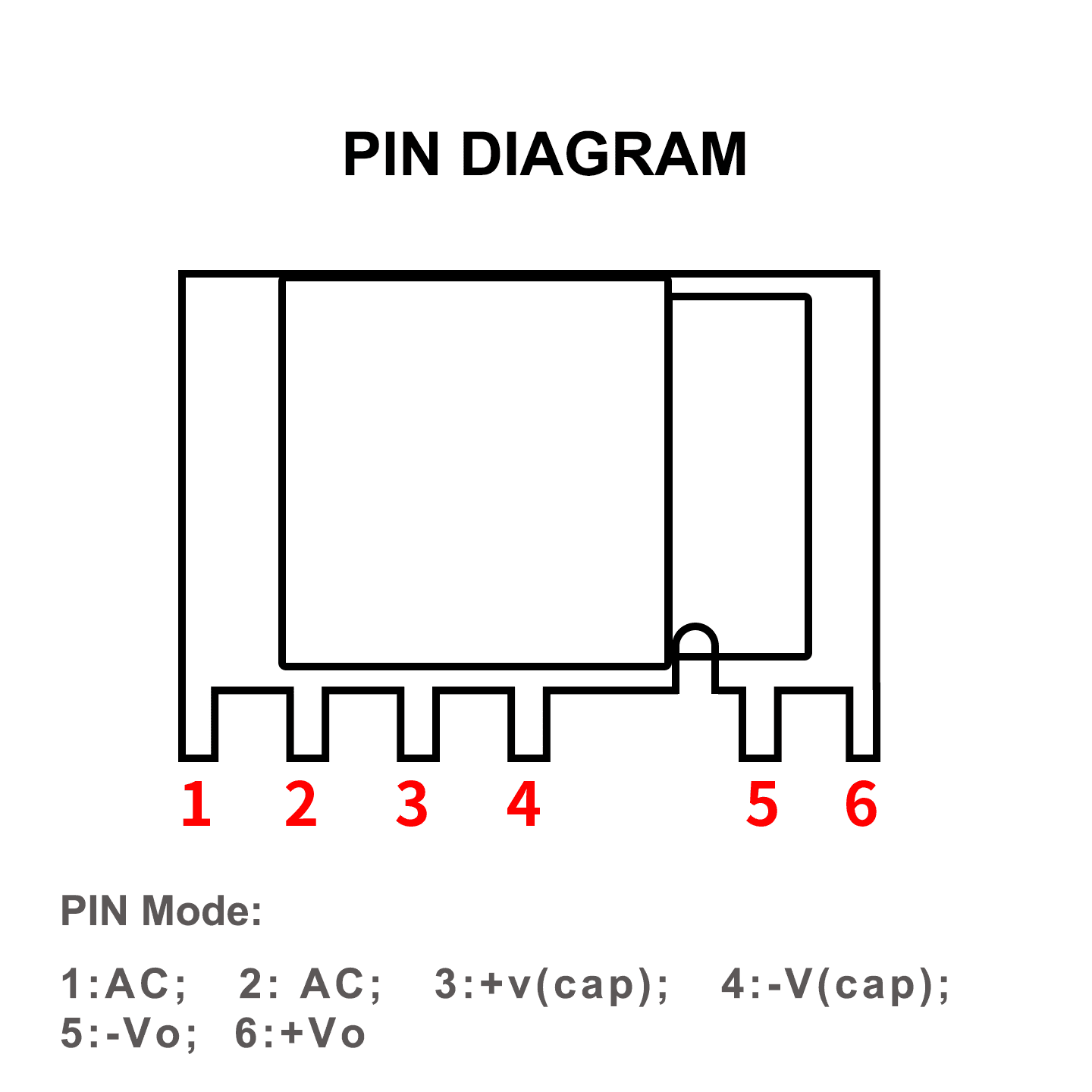

10LS-3 拷贝

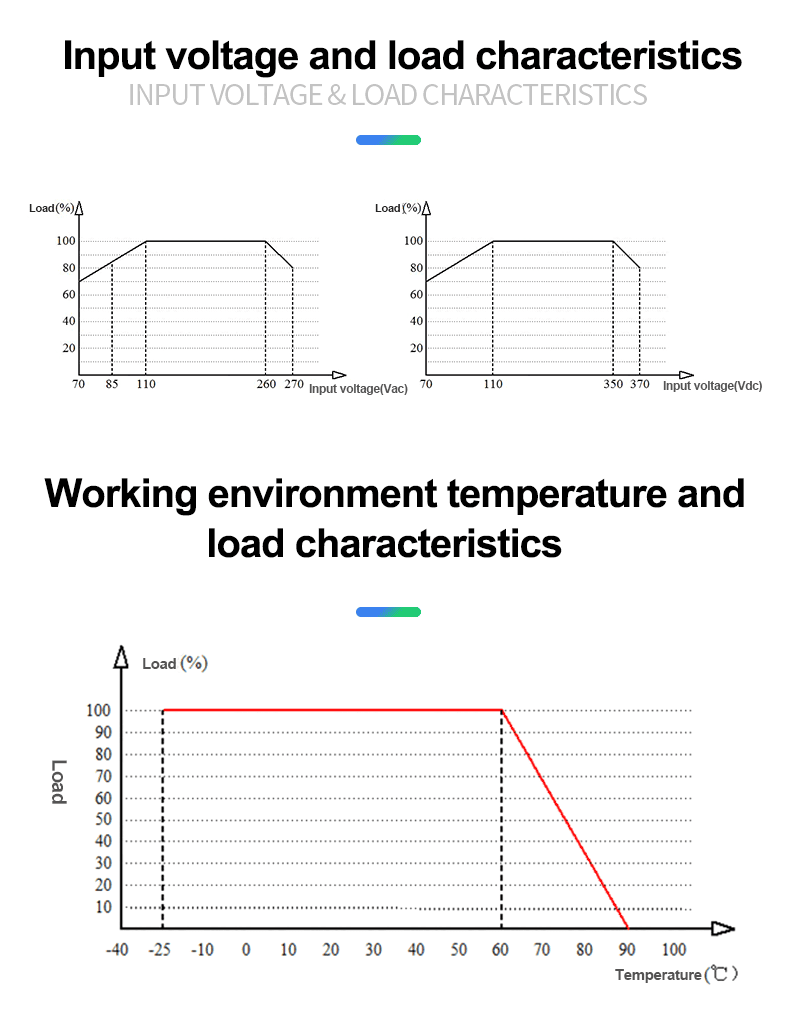

10W-LS-3 拷贝
