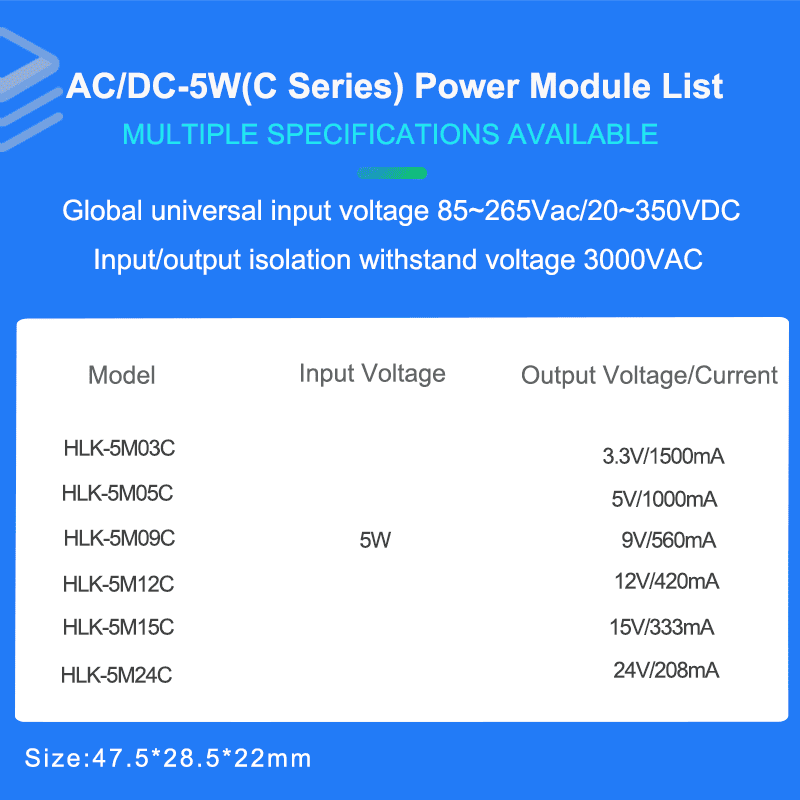

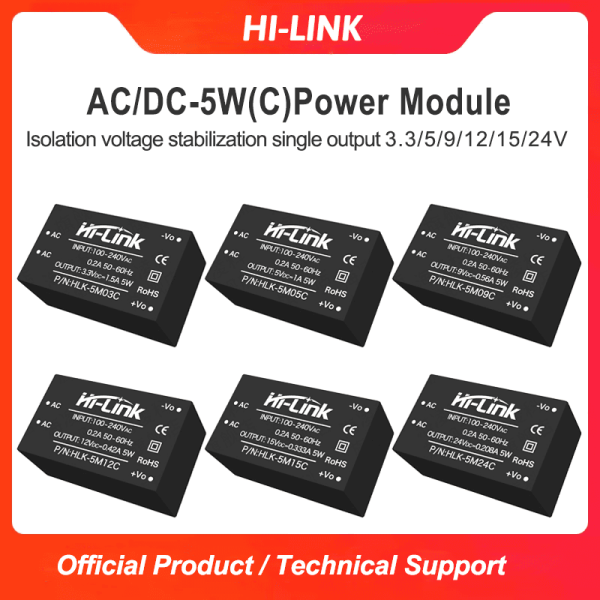

Product Features
-
Global universal input voltage(85-265VAC)
-
Input and output isolation voltage 3000VAC
-
Low power consumption, green enviroment protection, no-load loss＜0.1W
-
High efficiency, high power density
-
Long life design, continuous working time is greater then 100,000hours
-
High output-quality environmentally friendly waterproof thermal conductive glue potting, dustproof,moisture-proof, shockproof, flame-retardant
-
Meet UL/CE/EMC and safety testing requirenments
-
Can be used in medical, industrial control, electric power, instrumentation, communication,railway and other fields
Environment Condition
| Working Temerature |
-25—+60 ℃ |
| Storage temperature |
-40—+80 ℃ |
| Relative humidity |
5—95 % |
| Thermal methods |
Natural cooling |
| Atmospheric pressure |
80—106 Kpa |
| Altitude |
≤2000 m |
| Vibration coefficient |
10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes. Meets secondary road transportation requirements |
Input Features( test at room temperature)
| Rated input voltage |
100-240Vac |
| Input vlotage range |
85-265VAC/120-350VDC |
| The maximum input CURRENT |
≤0.2A |
| Input low start |
≤200mS |
| Long-term reliablity |
MTBF≥100000H |
| External fuse recommended |
1A/250Vac or 10Ω wire wound resistance, Slow blow |
Output Features(3.3V/1500mA)
| No-load rated output voltage |
3.3±0.1Vdc |
| Full-load rated output voltage |
3.3±0.1Vdc |
| Short term maximum output current |
≥1900mA |
| Rated output current |
1500mA |
| Voltage regulation rate |
±0.1% |
| Load regulation rate |
±0.5% |
| Switching on/off overshoot amplitude |
（Rated input voltage, output with 10% load) ≤5%VO |
|
Output ripple and noise
(mVp-p)
|
≤100
Rated input voltage, output at full load. Using a 20MHz bandwidth oscilloscope,
Test the load end with 10uF and 0.1uF capacitors.
|
Output Features(5V/1000mA)
| No-load rated output voltage |
5±0.1Vdc |
| Full-load rated output voltage |
5±0.1Vdc |
| Short term maximum output current |
≥1260mA |
| Rated output current |
1000mA |
| Voltage regulation rate |
±0.1% |
| Load regulation rate |
±0.5% |
| Switching on/off overshoot amplitude |
（Rated input voltage, output with 10% load) ≤5%VO |
|
Output ripple and noise
(mVp-p)
|
≤100
Rated input voltage, output at full load. Using a 20MHz bandwidth oscilloscope,
Test the load end with 10uF and 0.1uF capacitors.
|
Output Features(12V/420mA)
| No-load rated output voltage |
12±0.1Vdc |
| Full-load rated output voltage |
12±0.1Vdc |
| Short term maximum output current |
≥520mA |
| Rated output current |
420mA |
| Voltage regulation rate |
±0.1% |
| Load regulation rate |
±0.5% |
| Switching on/off overshoot amplitude |
（Rated input voltage, output with 10% load) ≤5%VO |
|
Output ripple and noise
(mVp-p)
|
≤100
Rated input voltage, output at full load. Using a 20MHz bandwidth oscilloscope,
Test the load end with 10uF and 0.1uF capacitors.
|
Output Features(24V/208mA)
| No-load rated output voltage |
24±0.1Vdc |
| Full-load rated output voltage |
24±0.1Vdc |
| Short term maximum output current |
≥260mA |
| Rated output current |
208mA |
| Voltage regulation rate |
±0.1% |
| Load regulation rate |
±0.5% |
| Switching on/off overshoot amplitude |
（Rated input voltage, output with 10% load) ≤5%VO |
|
Output ripple and noise
(mVp-p)
|
≤100
Rated input voltage, output at full load. Using a 20MHz bandwidth oscilloscope,
Test the load end with 10uF and 0.1uF capacitors.
|

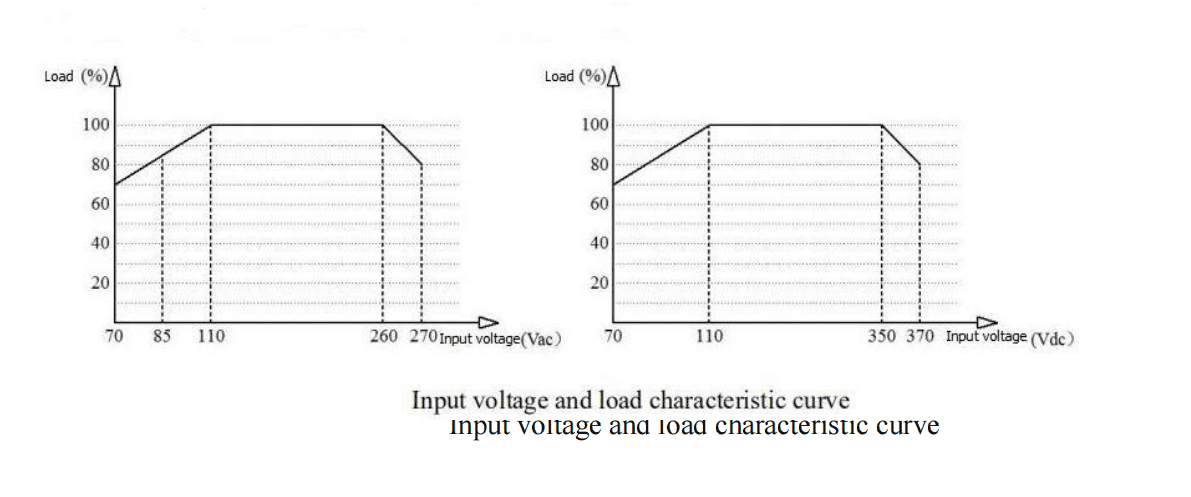

Input Voltage & Load Characteristics

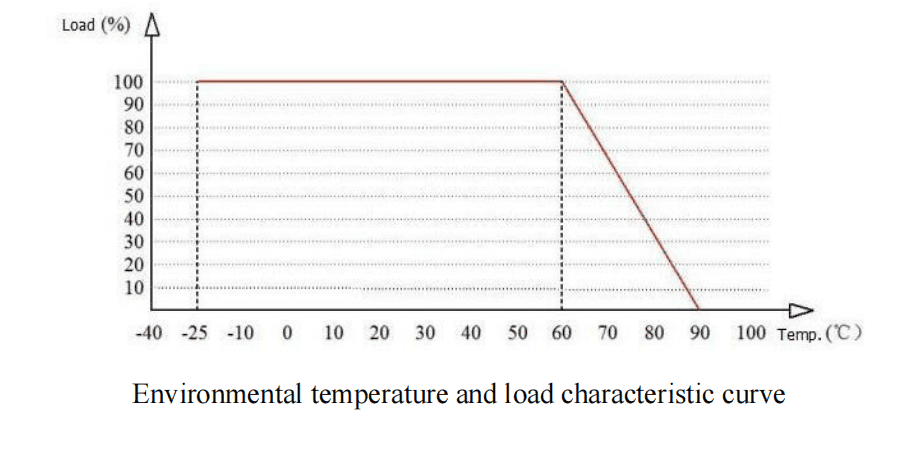

Working Environment Temperature & Load Characteristics

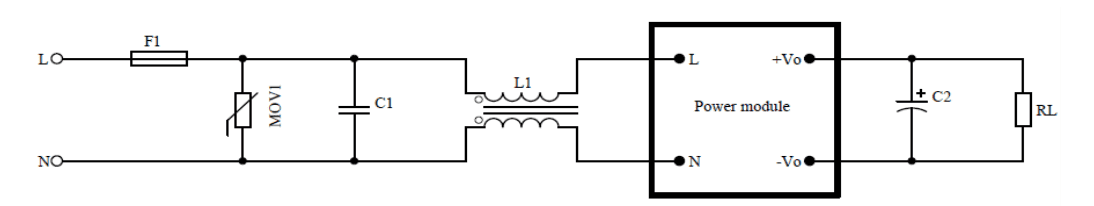

Typical Application Circuit
Parameter Recommendation
| Recommended Component |
Function
|
Recommended Parameters |
| F1/fuse |
When the module is abnormal, protect the circuit from damage |
1A/250Vac, slow fuse |
| MOV1/Varistor |
The cumulative surge is to protect the module from damage |
10D561K |
| C1/Safety capacitance |
Filtering/safety protection/EMC certification |
0.1uF/275VAC |
| L1/Common-mode inductance |
EMI filtering |
Sensible value 10-30mH(testing requirements 1KHZ/0.3V current:100-500mA) |
Safety Characteristics
Meet UL/CE requirements(UL/CE certification requires customers to self-certify)
Safe compatible with battery
The input end design adopts UL certification 1A insurance
The fire ration of PCB board is 94-V0
Safety standards comply with UL1012,EN60950,UL60950
Insulation voltage I/P-O/P＞2500Vac
Insulation resistance I/P-O/P＞100M 0hms/500Vdc 25℃ 70%RH
Conforms to radiation EN55011, EN55022(CISPR22)
Electrostatic discharge IEC/EN 61000-4--2 level4 8KV/15KV
Temperature rise safety design
Under normal conditons, the maximum temperature rise of the inner surface of the power supply capacitor,
main converter, etc. does not exceed 90℃，and the maximum temperature rise of the shell surface does not exceed 60℃
