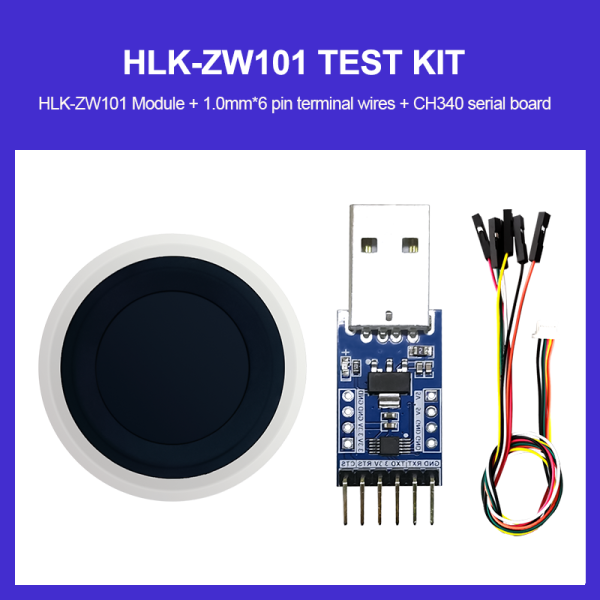

Hi-link fingerprint recognition module ZW101 test kit/development board low-power finger detection capacitive semiconductor fingerprint sensor

Product introduction

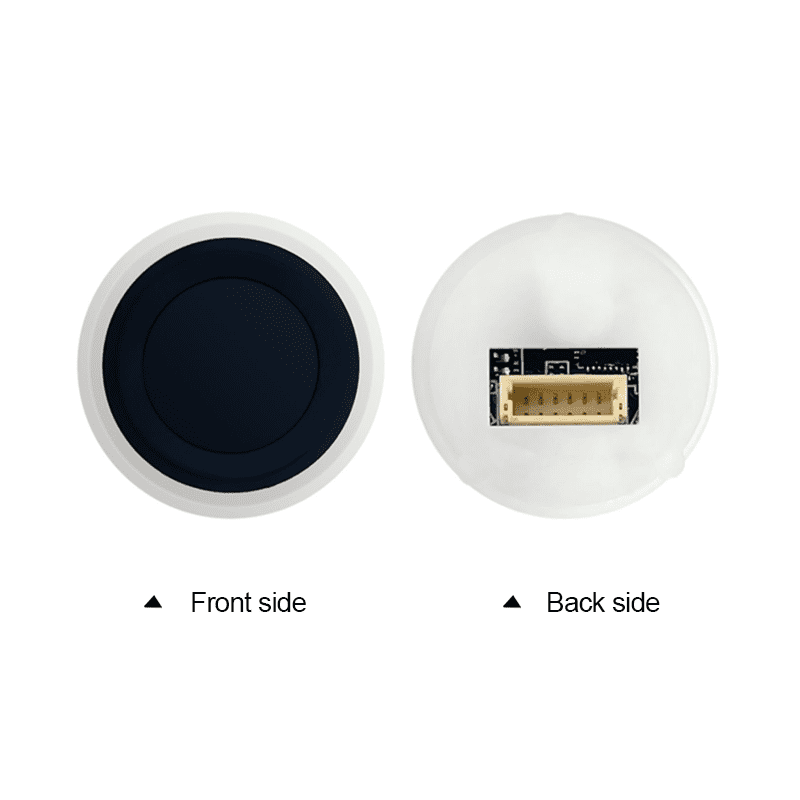

HLK-ZW101 is an all-in-one semiconductor fingerprint processing module, which consists of an active semiconductor fingerprint capture SENSOR and a fingerprint identification processing chip. Fingerprint identification algorithm chip adopts high-performance, low-power riscv core, running 360-degree adaptive self-learning algorithm. Semiconductor Sensor adopts active RF acquisition method, supports low-power finger detection, eliminates the need for external finger touch detection chip, high integration, simple product structure, improves product stability and consistency. At the same time to provide seven-color light effect, can be customized according to user needs of different colors as well as display mode.

Specifications

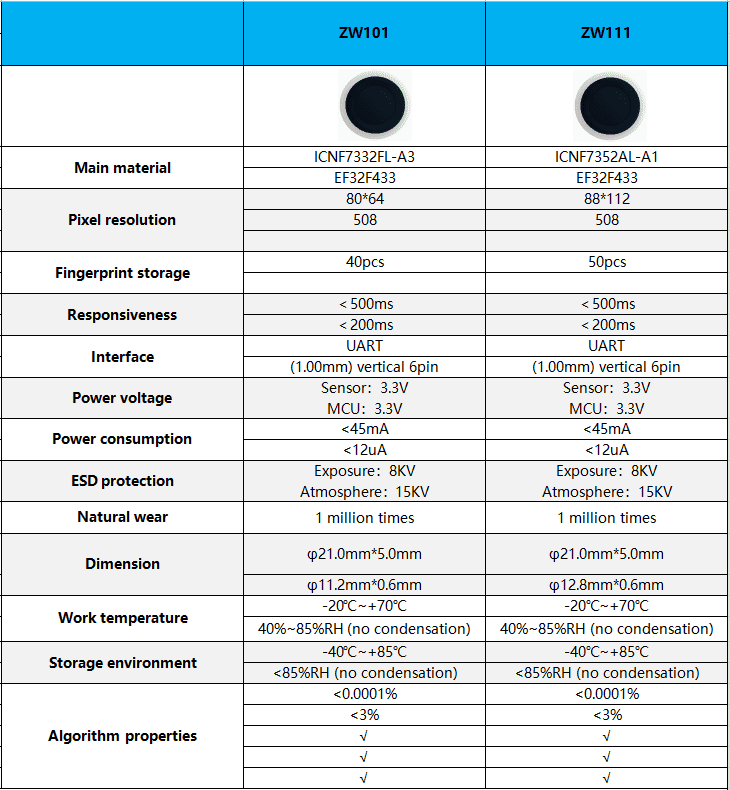

 Please check the following product parameters conpare list
