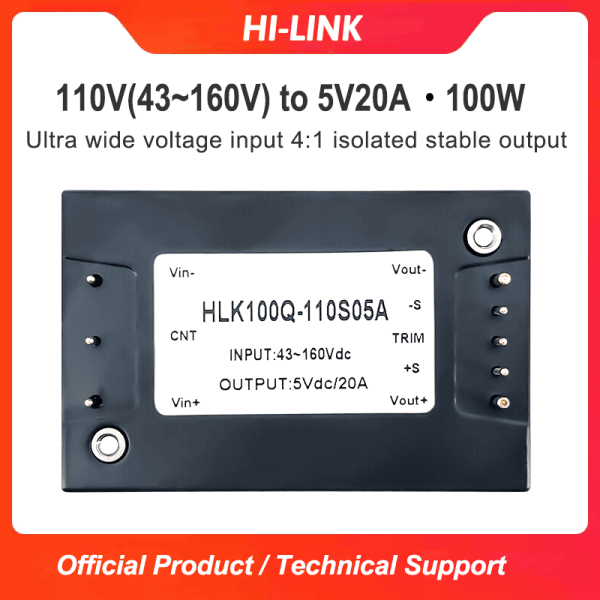

DC/DC half-brick power module 100Q-110S05A isolated and stabilized 110V to 5V single circuit 100W

DC/DC half-brick power module 100Q-110S05A isolated and stabilized 110V to 5V single circuit 100W

{{ product.price_format }}
{{ product.origin_price_format }}
Stock:
SKU:{{ product.sku }}
Model: {{ product.model }}
weight: {{ product.weight }} Kilogram

{{ variable.name }}

{{ value.name }}

Quantity:

Product Details

Input Characteristic

Project  Working condition Min. Typ. Max. Unit

Maximum input current

 18V input voltage, full load output -- -- 2 A
No-load input current

Rated input voltage

 -- 6 10 mA

Input impulse voltage (1sec. max)

beyond this range input may cause permanent damage

 -0.7 -- 185 VDC
Starting voltage   -- -- 43
Under voltage protect No load test, full load test will provide overcurrent protection in advance -- -- 40
Remote control foot (CNT) Positive logic: CNT suspended or connected to 3.5-15V for startup, connected to 0-1.2V for shutdown Reference voltage - VIN
Negative logic: CNT suspended or powered off when connected to 3.5-15V, powered on when connected to 0-1.2V voltage



Output Characteristic

Project  Working condition Min. Typ. Max. Unit

Output voltage accuracy

 Nominal input voltage, 10% load -- ±0.5 ±1.0 %
Linear regulation rate

Full load, input voltage changes from low voltage to high voltage

 -- ±0.2 ±0.2

Load regulation rate

Nominal input voltage, ranging from 10% to 100% load

 -0.7 ±0.2 ±0.2
Transient Recovery Time 25% load step change (step rate 1A/50uS) -- 200 250 uS
Transient response deviation -5 -- 5 %
Temperature drift coefficient Positive logic: CNT suspended or connected to 3.5-15V for startup, connected to 0-1.2V for shutdown -0.02 -- +0.02 %/℃
Ripple&Noise 20M bandwidth, external 470uF or above capacitor test -- 80 100 mVp-p
Adjustable output voltage (TRIM)   -20 -- 10 %
Remote compensation of output voltage (Sense)   -- -- 5 %
Over Temperature Protection The highest temperature on the surface of the metal substrate of the product 105 115 125 ℃
Output overvoltage protection   120 -- 130 %
Output overcurrent protection   22 -- 28 A
Short Circuit Protection   Hiccup style, sustainable, self-healing



General Characteristic

sProject  Working condition Min. Typ. Max. Unit
Isolation Voltage Input-output Test time 1 minute, leakage current less than 3mA -- -- 3000 VDC
Input - Shell Test time 1 minute, leakage current less than 3mA -- -- 2100 VDC
Output - Shell Test time 1 minute, leakage current less than 3mA -- -- 500 VDC
Insulation resistance Input-output Insulation voltage 500VDC -- -- 10 MΩ
Switching frequency     -- 180 -- KHz
mean time between failures     -- -- 150 K hours

推荐电路图-110S-1 拷贝
