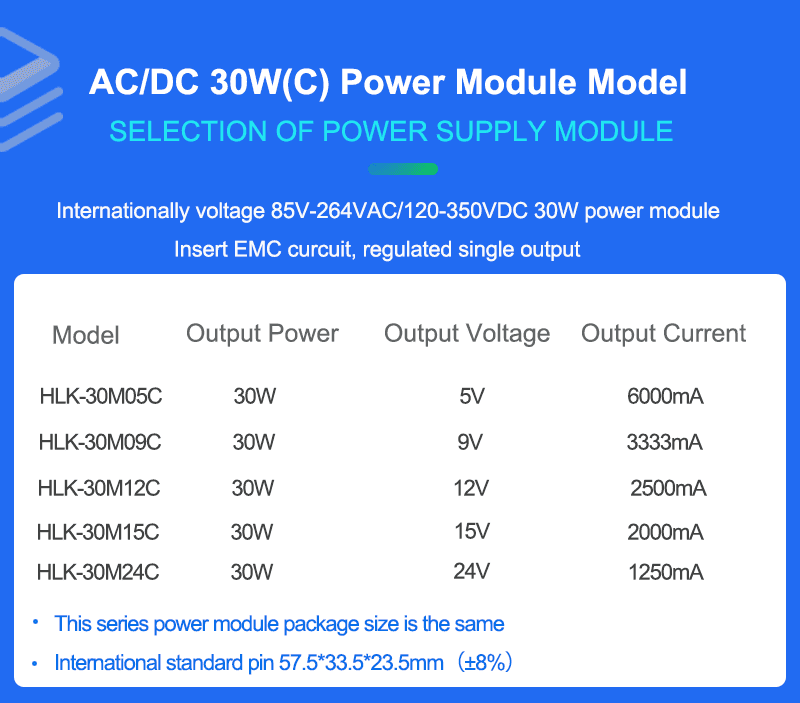

Brief Introduction
The 30W ultra-small series module power supply is a small, high-efficiency power supply module designed by Hi-link Electronics for customers. It has the advantages of global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability, and high safety isolation. It has been widely used in industries such as smart home, automation control, communication equipment, and instrumentation.
Product Features
1. Ultra-thin, ultra-small, smallest volume;
2. Global universal input voltage (90~265Vac)
3. Low power consumption, green environmental protection, no-load loss<0.2W 4. Low ripple, low noise
5. High output short circuit and over-current protection and self recovery
6. High efficiency, high power density
7. Input and output isolation voltage 3000Vac
8. 100% full load aging and testing
9. High reliability, long life design, continuous working time is greater than 100,000 hours;
10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;
11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards
12. Economic solutions, cost-effective
13. Work without external circuit
14. 1 year quality guarantee period
Enviroment Condition
| Project name |
Qualification |
Unit |
Notes |
| Working enviroment temperature |
-40—+85 |
℃ |
|
| Storage temperture |
-40—+80 ℃ |
℃ |
|
| Relative humidity |
5—95 |
% |
|
| Heat dissipation mode |
natural cooling |
|
|
| Atmospheric pressure |
80—106 Kpa |
Kpa |
|
| Vibrate |
Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes |
|
Meet the requirements of secondary road transportation |
Input Characteristics
| Project name |
Working conditions |
Unit |
Notes |
| Related input voltage |
100-240 |
Vac |
|
| Input voltage range |
85-264 |
Vdc |
or 120-350V dc |
| Maximum input current |
≤0.7 |
A |
|
| Input inrush current |
≤50 |
A |
|
| Input low start |
≤50 |
mS |
|
| Long-term reliability |
MTBF≥100000 |
H |
|
| external fuse recommended |
2A/250Vac |
Vdc |
Slow blow |
Output Characteristics(5V/6000mA)
| Project name |
Technical requirement |
Unit |
Notes |
| No load rated output voltage |
5V±0.1 |
Vdc |
|
| Full load rated output voltage |
5V±0.2 |
Vdc |
|
| Short-time maximum output current |
≥6100 |
mA |
|
| Rated output current |
6000 |
mA |
|
| Voltage regulation |
±0.2 |
% |
|
| Load regulation |
±0.5 |
% |
|
| Input low voltage efficiency |
Vin=115Vac, output full load ≥85 |
% |
|
| Input high voltage efficiency |
Vin=230Vac, output full load ≥87 |
% |
|
| Output ripple and noise (mVp-p) |
≤100 Pure resistance load, 20MHz bandwidth，Load side 10uF and 0.1uF capacitance test |
mV |
|
| Switching on/off overshoot amplitude |
(Rated input voltage, output plus 10% load)≤5 |
%Vo |
|
| Output over-current protection |
Output maximum load 110-150% |
A |
|
| Output short circuit protection |
Direct short circuit in normal output and automatic return to normal operation after removal of short circuit |
|
No-damage to the whole device |
Output Characteristics(9V/3300mA)
| Project name |
Technical requirement |
Unit |
Notes |
| No load rated output voltage |
9V±0.1 |
Vdc |
|
| Full load rated output voltage |
9V±0.2 |
Vdc |
|
| Short-time maximum output current |
≥3400 |
mA |
|
| Rated output current |
3300 |
mA |
|
| Voltage regulation |
±0.3 |
% |
|
| Load regulation |
±0.5 |
% |
|
| Input low voltage efficiency |
Vin=115Vac, output full load ≥86 |
% |
|
| Input high voltage efficiency |
Vin=230Vac, output full load ≥87 |
% |
|
| Output ripple and noise (mVp-p) |
≤100 Pure resistance load, 20MHz bandwidth，Load side 10uF and 0.1uF capacitance test |
mV |
|
| Switching on/off overshoot amplitude |
(Rated input voltage, output plus 10% load)≤5 |
%Vo |
|
| Output over-current protection |
Output maximum load 110-150% |
A |
|
| Output short circuit protection |
Direct short circuit in normal output and automatic return to normal operation after removal of short circuit |
|
No-damage to the whole device |
Output Characteristics(12V/2500mA)
| Project name |
Technical requirement |
Unit |
Notes |
| No load rated output voltage |
12V±0.1 |
Vdc |
|
| Full load rated output voltage |
12V±0.2 |
Vdc |
|
| Short-time maximum output current |
≥2600 |
mA |
|
| Rated output current |
2500 |
mA |
|
| Voltage regulation |
±0.4 |
% |
|
| Load regulation |
±0.5 |
% |
|
| Input low voltage efficiency |
Vin=115Vac, output full load ≥86 |
% |
|
| Input high voltage efficiency |
Vin=230Vac, output full load ≥87 |
% |
|
| Output ripple and noise (mVp-p) |
≤100 Pure resistance load, 20MHz bandwidth，Load side 10uF and 0.1uF capacitance test |
mV |
|
| Switching on/off overshoot amplitude |
(Rated input voltage, output plus 10% load)≤5 |
%Vo |
|
| Output over-current protection |
Output maximum load 110-150% |
A |
|
| Output short circuit protection |
Direct short circuit in normal output and automatic return to normal operation after removal of short circuit |
|
No-damage to the whole device |
Output Characteristics(15V/2000mA)
| Project name |
Technical requirement |
Unit |
Notes |
| No load rated output voltage |
15V±0.1 |
Vdc |
|
| Full load rated output voltage |
15V±0.2 |
Vdc |
|
| Short-time maximum output current |
≥2100 |
mA |
|
| Rated output current |
2000 |
mA |
|
| Voltage regulation |
±0.4 |
% |
|
| Load regulation |
±0.5 |
% |
|
| Input low voltage efficiency |
Vin=115Vac, output full load ≥86 |
% |
|
| Input high voltage efficiency |
Vin=230Vac, output full load ≥87 |
% |
|
| Output ripple and noise (mVp-p) |
≤100 Pure resistance load, 20MHz bandwidth，Load side 10uF and 0.1uF capacitance test |
mV |
|
| Switching on/off overshoot amplitude |
(Rated input voltage, output plus 10% load)≤5 |
%Vo |
|
| Output over-current protection |
Output maximum load 110-150% |
A |
|
| Output short circuit protection |
Direct short circuit in normal output and automatic return to normal operation after removal of short circuit |
|
No-damage to the whole device |
Output Characteristics(24V/1250mA)
| Project name |
Technical requirement |
Unit |
Notes |
| No load rated output voltage |
24V±0.1 |
Vdc |
|
| Full load rated output voltage |
24V±0.2 |
Vdc |
|
| Short-time maximum output current |
≥1350 |
mA |
|
| Rated output current |
1250 |
mA |
|
| Voltage regulation |
±0.4 |
% |
|
| Load regulation |
±0.5 |
% |
|
| Input low voltage efficiency |
Vin=115Vac, output full load ≥86 |
% |
|
| Input high voltage efficiency |
Vin=230Vac, output full load ≥87 |
% |
|
| Output ripple and noise (mVp-p) |
≤100 Pure resistance load, 20MHz bandwidth，Load side 10uF and 0.1uF capacitance test |
mV |
|
| Switching on/off overshoot amplitude |
(Rated input voltage, output plus 10% load)≤5 |
%Vo |
|
| Output over-current protection |
Output maximum load 110-150% |
A |
|
| Output short circuit protection |
Direct short circuit in normal output and automatic return to normal operation after removal of short circuit |
|
No-damage to the whole device |

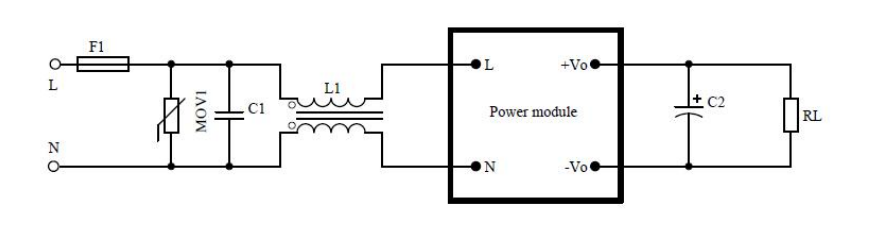

Typical Application Circuits
EMC parameter recommendation
| Component No. |
Function |
Recommended value |
| Fuse |
Protest the circuit from damage when the module is abnormal |
2A/250Vac, Slow fuse |
| Varistor |
The cumulative surge is to protect the module from damage |
10D561K |
| C1/Safety capacitance |
Filtering, safety protection(EMC certification) |
0.1uF/275Vac |
| L1/Common-mode inductance |
EMI filtering |
Sensible value 10-20mH, current 1-2A |
Notes：
* Fuses and varistors are basic parts of protection circuits (required).
* If the certification is required, the safety capacitor and common mode inductance cannot be omitted.

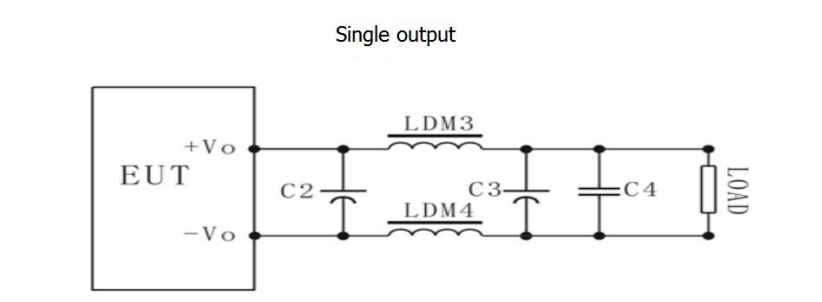

Output filtering
For usual requirements of ripple and noise, the peripheral recommendation is only C2; For strict requirements of ripple and noise, the above circuit is recommended. Notes:
(1) C2, C3 use high frequency low resistance electrolytic capacitor, and the total capacity can not exceed the maximum capacitive load indicated in the manual, otherwise the module will not start normally. (2) When the capacitive load is used, the minimum load of 3% must be guaranteed, otherwise the module output will be abnormal.
| Component No. |
Function |
Recommended value |
| LDM3/Common mode inductance |
Adjust the output ripple voltage |
Inductance: 0.47-4.7uH according to the debugging result |
| LDM4/Common mode inductance |
Adjust the output ripple voltage |
Inductance: 0.47-4.7uH according to the debugging result |
| C2,C3 Electrolytic capacitor |
Ripple voltage filtering |
68-220uF/50V |
| C4 Ceramic capacitors |
Ripple voltage filtering |
1uF/50V |

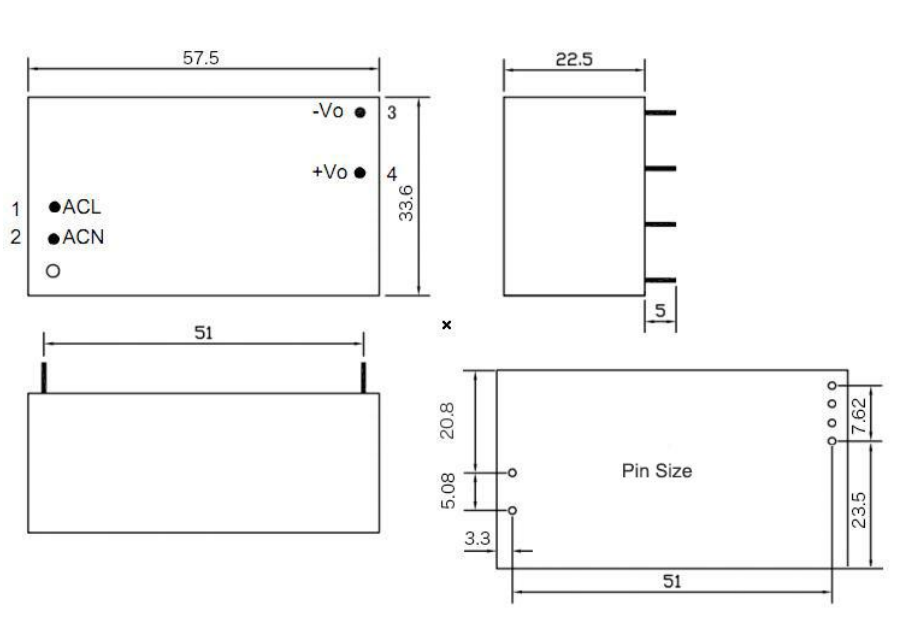

Dimension and Weight
Dimension error:
-
Length, width, height and lead pitch error ±8%
-
Lead length error ±1mm
-
Lead diameter error ±0.2mm
-
Weight ≤80g
