AC-DC 22W series 220V to 5V power supply stable output isolated power converter module HLK-22M05Z

Download files:

https://d.hlktech.net/Mobile/Download

Product Feature

The HLK-22M05Z bare board power module is a small-sized, high-efficiency module power supply designed by Hi-link Electronics for customers. Having global input voltage

Advantages include range, low temperature rise, low power consumption, high efficiency, high reliability, and high safety isolation. Widely used in smart homes, automation control, and communication in industries such as telecommunications equipment and instrumentation.

Product Specifications

Ultra thin, compact, and small volume in the industry
Global universal input voltage (100~240Vac)
Low power consumption, green environmental protection, no-load loss<0.5W
Low ripple and low noise
Good output short-circuit and overcurrent protection and self recovery
Input/output isolation withstand voltage 4000Vac, surge resistance 4KV
100% full load aging and testing
High reliability and long-life design, with continuous working time greater than 70000 hours
Meet the circuit requirements of UL and CE; Product design meets EMC and safety testing requirements
Adopting high-quality environmental protection, moisture resistance, and vibration resistance to meet various requirements and standards
Economic solutions with high cost-effectiveness
Can work without external circuits
High efficiency and high power density

Environment condition

Item name	technical index	Unit	Remark
Working Temerature	-25—+60	℃
Storage Temerature	-40—+80	℃
Relative humidity	5—95	%
Thermal methods	natual cooling
Atmospheric pressure	80—106	Kpa
Altitude	≤2000	m
Vibration coefficient	10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes		Meets requirements for secondary road transportation

Input Features(test at room temperature)

Item name	technical index	Unit	Remark
Rated input voltage	100-240Vac
Input vlotage range	90-264Vac		or 120-350Vdc
The maximum input CURRENT	≤0.7A
Input inrush current	≤50A
Input low start	≤3S
Long-term reliablity	MTBF≥100000H

Output Features

Item name	technical index	Unit	Remark
No-load rated output voltage	5.0±0.1Vdc	Vdc
Full-load rated output voltage	5.0±0.2Vdc	Vdc
Short term maximum output current	6000mA	mA
Rated output current	4500mA	mA
Voltage regulation rate	≤±2	%
Load regulation rate	≤±5	%
Input low voltage efficiency	Vin=115Vac， Output full load ≥ 83	%
Input high voltage efficiency	Vin=230Vac， Output full load ≥ 85	%
Output ripple and noise (mVp-p)	≤120 Rated input voltage, output at full load. Using a 20MHz bandwidth oscilloscope, Test the load end with 10uF and 0.1uF capacitors.	mV
Switching on/off overshoot amplitude	（Rated input voltage, output with 10% load) ≤5%VO	%VO
Output overcurrent protection	Output 110-140% of maximum load	A
OUtput Short Circuit Protection	Short circuit directly during normal output, and automatically resume normal operation after the short circuit is removed		Do not damage the entire machine

Input Voltage & Load Characteristics

5W input voltage curve

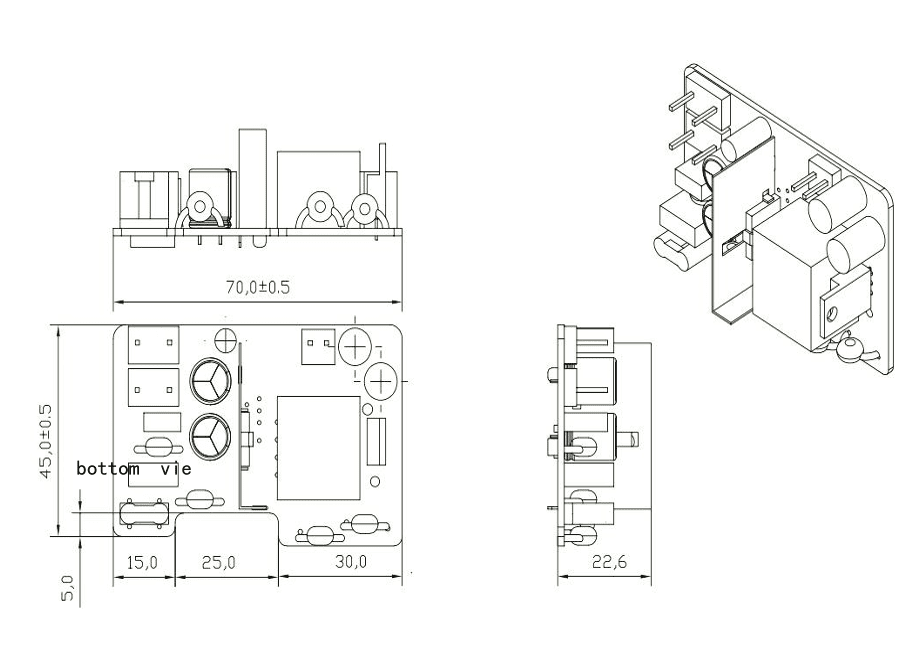

Dimension

dimension

Dimensional error:

1. Length, width, height, and pin spacing error ± 1mm

2. Pin length error ± 1mm

3. Pin diameter error -0.2mm

Unit: Millimeters
