Introduction

The HLK-7621A module use the MT7621A chipset.

The MT7621A integrates aual-core MIPS-1004Kc(880MHz), HNAT/HQoS/Samba/VPN accelerators, 5-port GbE switch, RGMII, USB3.0, USB2.0, 3xPCIe, SD-XC.

The powerful CPU with rich portfolio is suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN,AC (Access Control).

It can also connect to touch-panel, ZigBee/Z-Wave for Internet Service Router and Home Security Gateway.

For the next generation router, MT7621A provides several dedicated hardware engines to accelerate the NAT, QoS, Samba and VPN traffic.These accelerators relief the CPU for other upper layer applications.

Features

1.Embedded MIPS1004Kc ( 880 MHz, Dual-Core )

32 KB I-Cache and 32 KB D-Cache per core

256 KB L2 Cache (shared by Dual-Core

SMP capable

Single processor operation configurable

2.Gigabit Switch

5 ports with full-line rate

5-port 10/100/1000Mbps MDI transceivers

3.One RGMII/MII interface

4.16-bit DDR2/3 up to 256/512 Mbytes

5.SPI(2 chip select), NAND Flash(SLC), SDXC,eMMC(4 bits)

6.USB3 x 1+ USB2 x 1 or USB2 x 2 (all host)

7.PCIe host x 3

8.I2C, UART Lite x 3, JTAG, MDC, MDIO, GPIO

9.VoIP support ( I2S, PCM )

10.Audio interface (SPDIF-Tx, I2S, PCM)

11.Deliver the superb Samba performance via USB2.0/USB 3.0/SD-XC

12.HW storage accelerator

13.HW NAT

2Gbps wired speed

L2 bridge

IPv4 routing, NAT, NAPT

IPv6 routing, DS-Lite, 6RD, 6to4

14.HW QoS

16 hardware queues to guarantee the min/max bandwidth of each flow.

Seamlessly co-work with HW NAT engine.

2Gbps wired speed.

15.HW Crypto

16.Deliver 400~500 Mbps IPSec throughput

17.Green

Intelligent Clock Scaling (exclusive)

DDR2/3: ODT off, Self-refresh mode

18.Firmware: Linux 2.6 SDK, OpenWRT

19.RGMII iNIC Driver: Linux 2.4/2.6

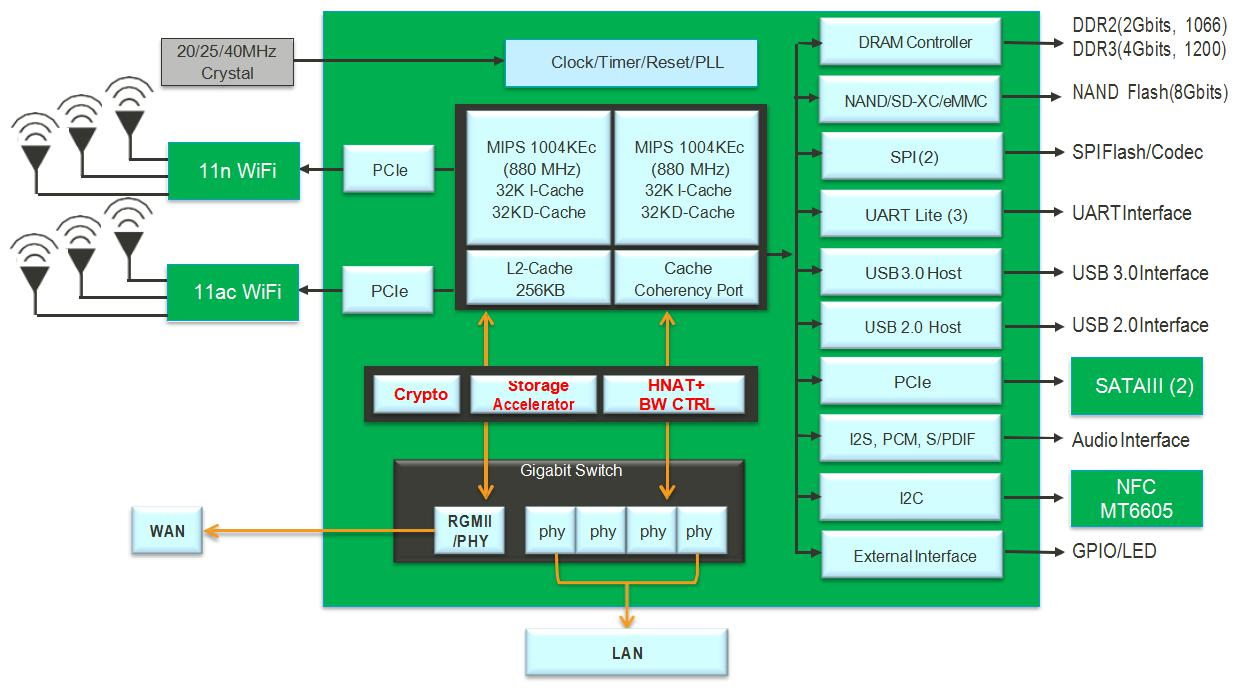

Functional block diagram

7621结构图

Size

7621 size

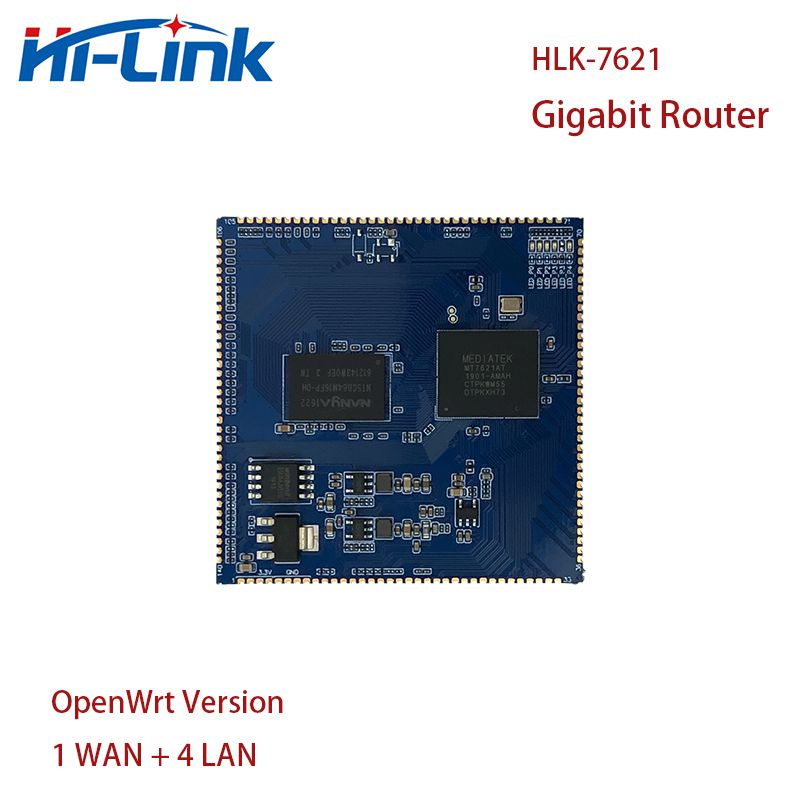

HLK-7621-2
