MT7688AN 2.4G Ethernet UART Wifi Wireless OpenWrt Router Module 128MBRAM 32MB FLASH HLK-7688A Support RAM/ flash customize

Download Files

https://d.hlktech.net/Mobile/Download

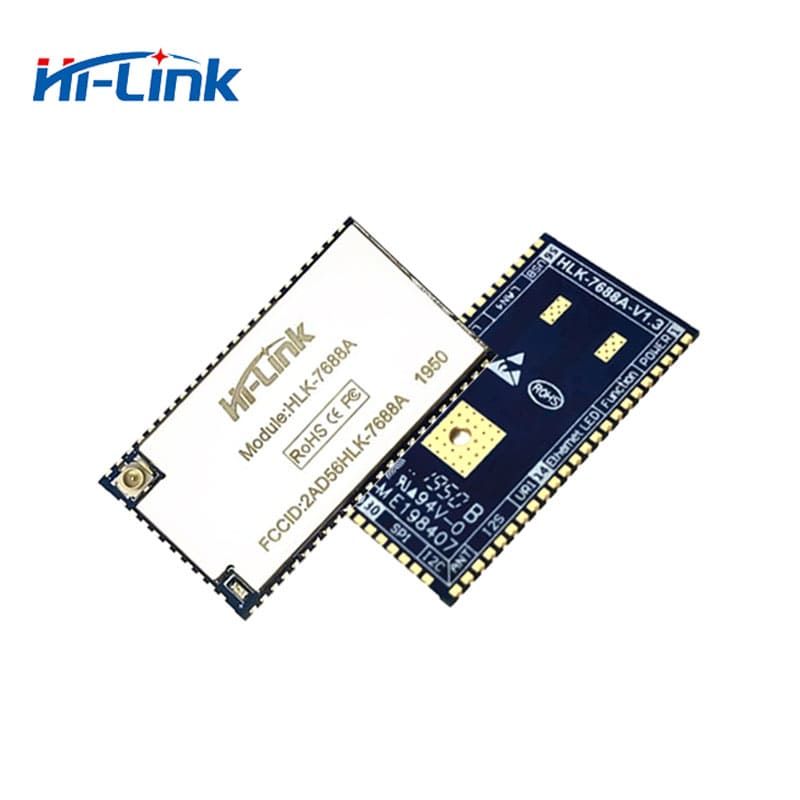

Introduction

HLK-MT7688A based on MT7688AN is a low cost and low power consumption IOT module developed by Hi-Link.

The module supports Linux, OpenWRT operating system and custom development. It could be widely applied to

smart devices or cloud services application with its rich interface and powerful processors.

Features

• High data processing ability，MCU frequency 580MHz

• 150M Mbps

• Support 802.11b/g/n

• 20/40 Channel bandwidth

• Support 802.11v

• Support AP,STA and AP,STA mixed

• Five 10/100M ETH PORT

• 1 USB2.0 Host interface port

• Interface SPI/SD-XC/eMMC

• Rich peripheral interfaces，SPI,I2C,I2S,PCM,UART,JTAG,GPIO

• Widely used in IOT

• Inbuilt powerful PMU

• Support 16 Multiple BSSID

• Support multiple security methods WEP64/128, TKIP, AES, WPA, WPA2, WAPI

• Support QoS，WMM，WMM-PS

• Support Linux 2.6.36 SDK，OpenWrt 3.10

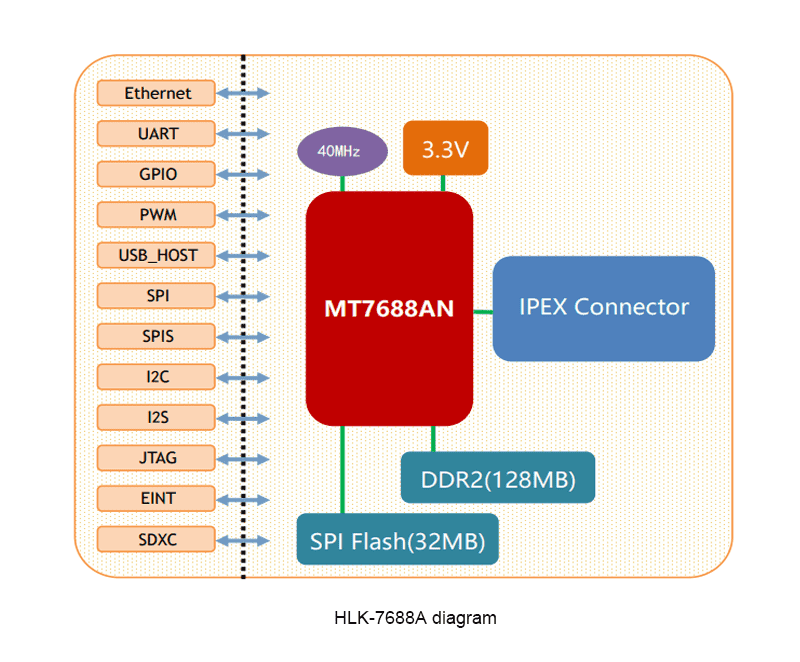

Diagram

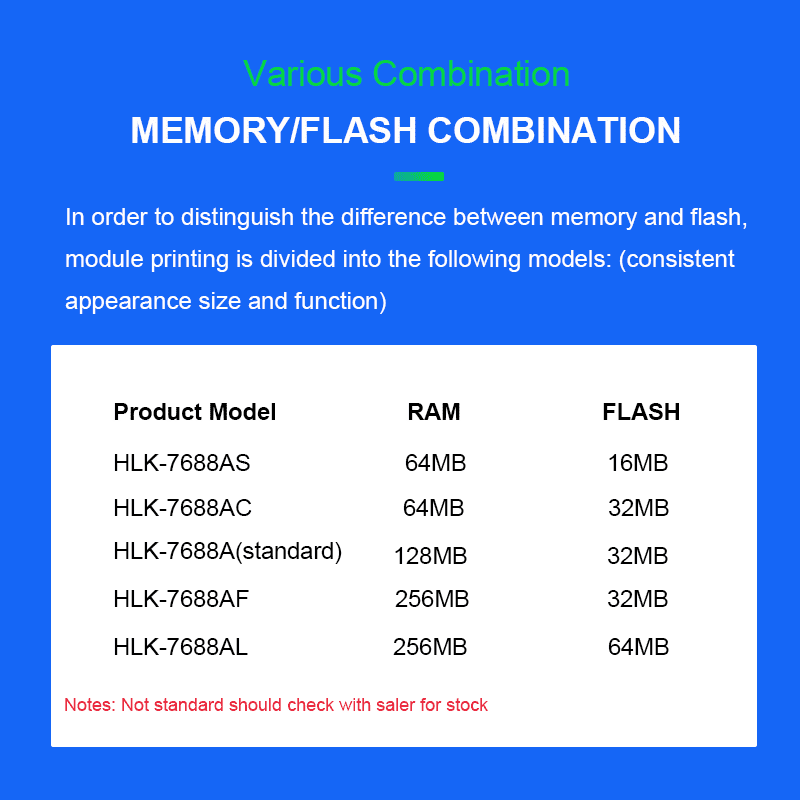

Specifications

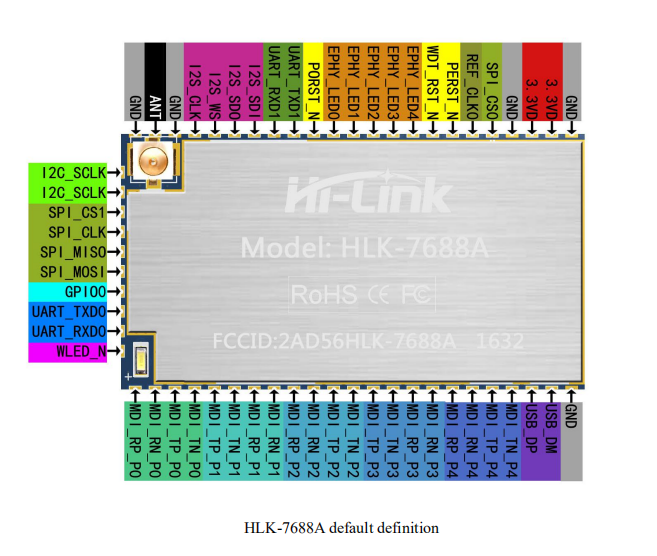

Module Pins Definition
