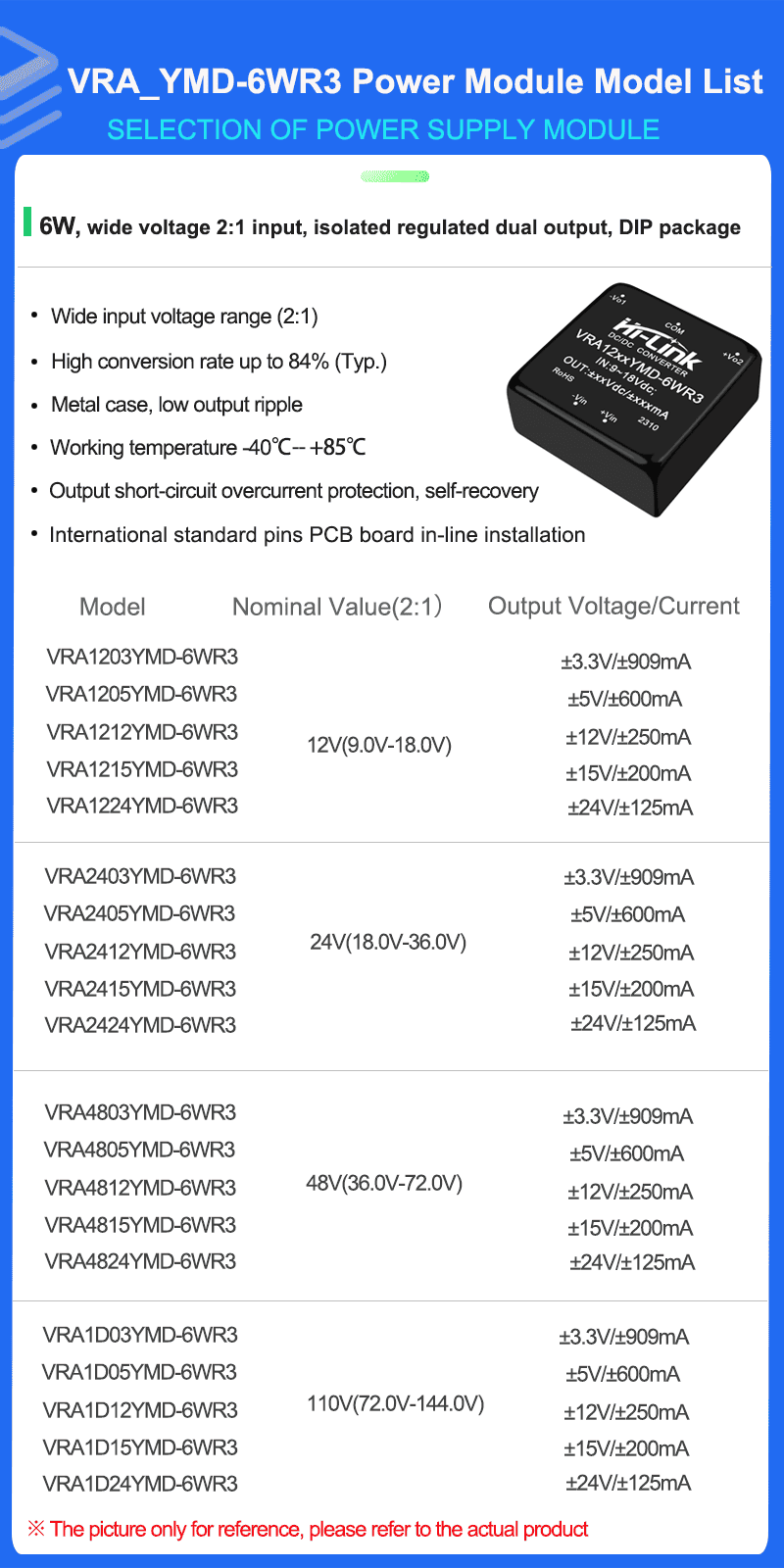

Product Feature
1. Wide input voltage range 2:1, isolated regulated output 6W
2. Isolation voltage 1500VDC
3. Transfer efficiency up to 84%
4. Quick Start：100mS(Typ)
5. Operating temperature range ：-40°C~+85°C
6. Small SIP package, metal case, low output ripple
7. International standard pin，direct installation of PCB board
8. Output short-circuit protection: continuous short circuit protection, automatic recovery
Enviroment Condition
| Project name |
Qualification |
Unit |
Notes |
| Working enviroment temperature |
-40—+85 |
℃ |
|
| Storage temperture |
-40—+125 ℃ |
℃ |
|
| Relative humidity |
5—95 |
% |
|
| Heat dissipation mode |
natural cooling |
|
|
| Atmospheric pressure |
80—106 Kpa |
Kpa |
|
| Ripple & Noise |
50/80(max) |
Mvp-p |
|
Input Characteristics
| Item |
Working conditions |
|
Min. |
Typ. |
Max. |
Unit |
| Input voltage range(fully loaded/unloaded） |
12VDC Input Series |
3.3V |
- |
428/25 |
440/30 |
mA |
| others |
- |
641/25 |
658/30 |
| 24VDC Input Series |
3.3V |
- |
214/13 |
220/15 |
| others |
- |
320/13 |
329/15 |
| 48VDC Input Series |
3.3V |
- |
107/7 |
110/8 |
| others |
- |
161 |
164/8 |
| 110VDC Input Series |
3.3V |
- |
47/3 |
48/4 |
| others |
- |
70/3 |
72/4 |
| Reflected Ripple Current |
12VDC Input Series |
-- |
- |
-- |
mA |
| 24VDC Input Series |
-- |
- |
-- |
| 48VDC Input Series |
-- |
- |
-- |
| 110VDC Input Series |
-- |
20 |
-- |
| Impulse voltage （Isec.max) |
12VDC Input Series |
-0.7 |
-- |
30 |
VDC |
| 24VDC Input Series |
-0.7 |
-- |
50 |
| 48VDC Input Series |
-0.7 |
-- |
100 |
| 110VDC Input Series |
-0.7 |
-- |
200 |
| Start voltage |
12VDC nominal input series, nominal input voltage |
- |
- |
9 |
| 24VDC nominal input series, nominal input voltage |
- |
- |
18 |
| 48VDC nominal input series, nominal input voltage |
- |
- |
36 |
| 110VDC nominal input series, nominal input voltage |
- |
- |
72 |
| Input undervoltage protection |
24VDC nominal input series, nominal input voltage |
- |
- |
- |
| 48VDC nominal input series, nominal input voltage |
- |
- |
- |
| 110VDC nominal input series, nominal input voltage |
- |
- |
- |
| Input filter type |
|
|
Capacitance filter type |
| Hot plugged |
|
|
Non-support |
Output Characteristics
| Project name |
Working and testing condition |
+V01 |
-V02 |
| Min. |
Typ. |
Max. |
Min. |
Typ. |
Max. |
| output load |
load percentage |
0% |
- |
100% |
0% |
- |
100% |
| Output Voltage Accuracy |
|
- |
±1.0% |
±2.0% |
- |
±2.0% |
±3.0% |
| Linear adjustment rate |
input voltage range |
- |
±0.2% |
±0.5% |
- |
±1.5% |
±2.0% |
| Load adjustment rate |
20%~100% rate
load, balanced
|
-- |
±0.5%
|
±1.0% |
- |
±4.0% |
±5.0% |
| Ripple & Noise |
Pure resistive load, 20HMz bandwidth, peak-to-peak |
-- |
50mVp-p |
80mVp-p |
- |
50mVp-p |
80mVp-p |
| Output voltage regulation |
Input voltage range |
- |
No adjustment end |
- |
- |
No adjustment endNo adjustment end |
- |
| Output short circuit protection |
Continuous short circuit protection, automatic recovery
|
| Notes: Ripple and Noise Test Methods Twisted Pair Test Method |
|
|
|
Note:
1、The above is only a list of typical products. If you need products beyond the list, please contact our sales. 2、The maximum capacitive load indicates the maximum capacitive load that + VO or - vo can be connected to,If the value is exceeded, the product will not start normally..

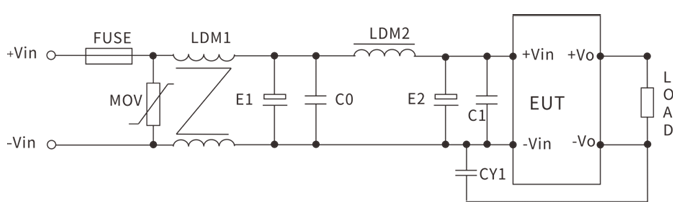

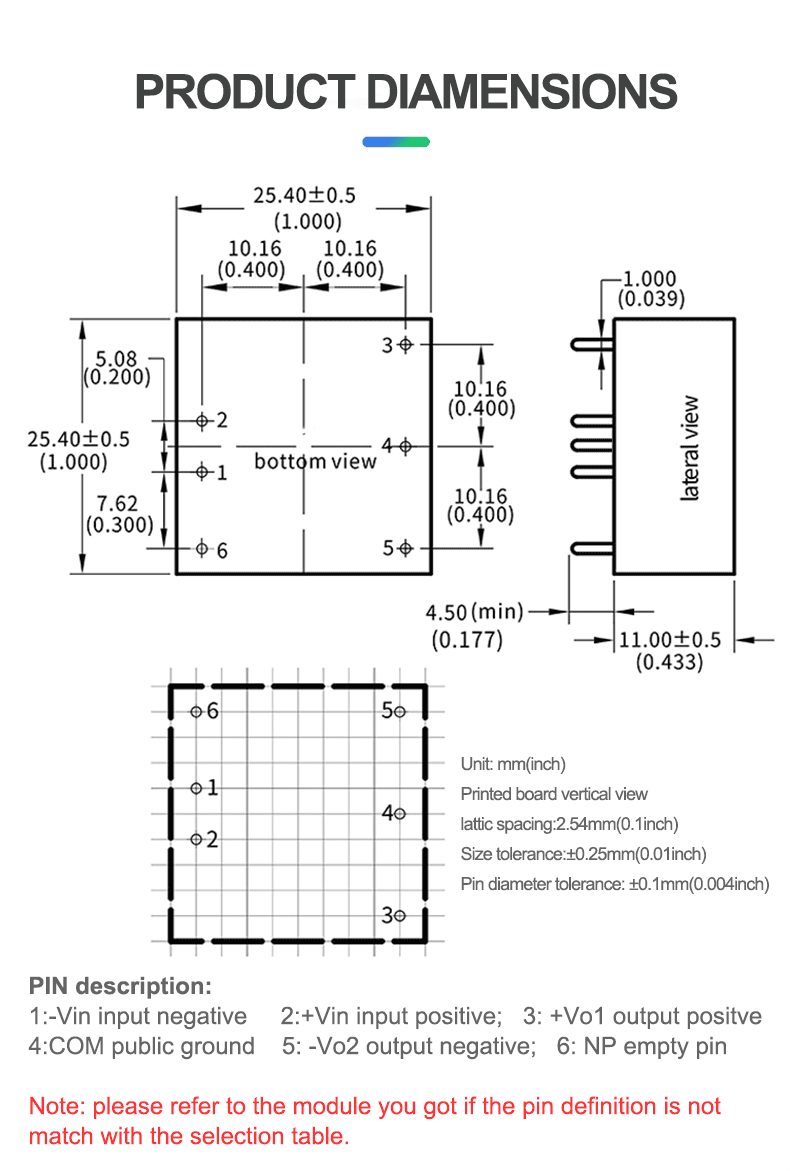

Typical Application Circuits
EMC parameter recommendation
| Component No. |
Function |
Recommended value |
| FMSE |
Slow blowing fuse, selected according to the actual input current of the customer |
| CY1 safety capacitor |
1nF/250Vac |
Notes：More details please feel free to contact hi-link team.
