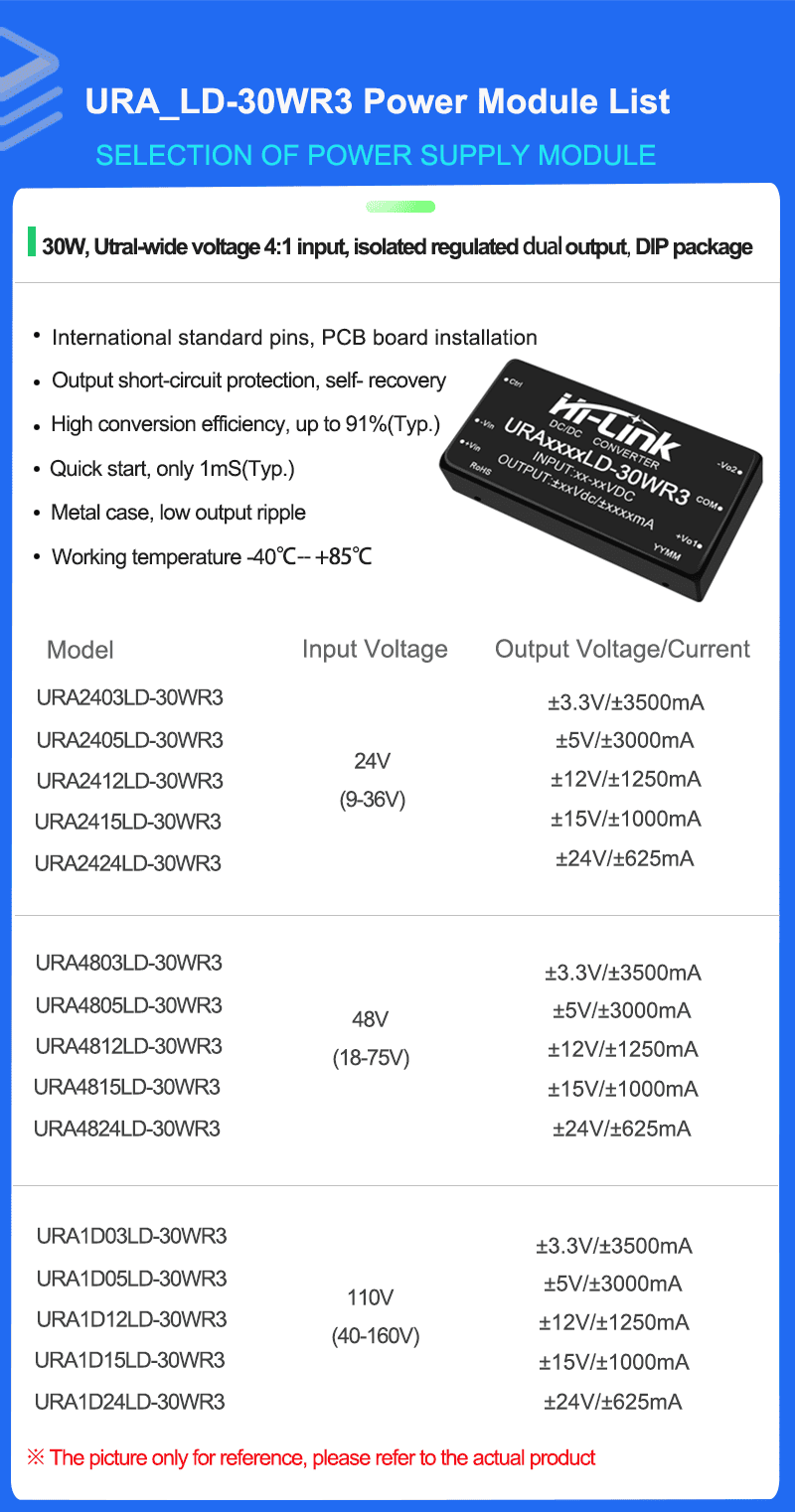

Product Feature
UR(A)B_LD-30WR3 series product output power is 30W，4:1 wide voltage input range，efficiency up to 91%，conversional isolation volatge of 1500VDC，allowable operating temperature is -40℃to+85℃，
with input under-voltage protection, output over-voltage, over-current,short-circuit protection function, bare metal meets CISPR32/EN55032CLASSA ， widely used in medical, industrial control, electri power, instrumentation,communication, railway and other fields.
-
Wide input voltage range(4:1),Output 30W
-
Conversion efficiency91%(Typ)
-
Isolation voltage 1500Vdc
-
Ultra low power consumption:0.036W(Typ）
-
Fast startup:1ms(Typ)
-
Working temperature range：-40°C~+85℃
-
Input undervoltage ， output short circuit ， overcurrent，overvolatge protection
-
Metal case,low output ripple
-
International standard pins,PCB board in-line
Enviroment Condition
| Project name |
Qualification |
Unit |
Notes |
| Working enviroment temperature |
-40—+85 |
℃ |
|
| Storage temperture |
-40—+80 ℃ |
℃ |
|
| Relative humidity |
5—95 |
% |
|
| Heat dissipation mode |
natural cooling |
|
|
| Atmospheric pressure |
80—106 Kpa |
Kpa |
|
| Vibrate |
Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes |
|
Meet the requirements of secondary road transportation |
Input Characteristics
| Project name |
Working conditions |
Unit |
Notes |
| Related input voltage |
48 |
Vdc |
|
| Input voltage range |
18-75 |
Vdc |
|
| Maximum input current |
≤1.45 |
A |
|
| Reflected ripple |
Nominal input voltage 40 |
mA |
DC 5V rated input voltage series
|
| Impulse voltage |
≤100 |
Vdc |
| Starting voltage |
18 |
Vdc |
| Input undervoltage protection |
12-15.5 |
Vdc |
| Start-up delay |
1 |
ms |
Rated input voltage and constant resistance load |
| Input filter type |
|
PI version |
| Hot plugged |
|
Non-support |
Output Characteristics(5V/6000mA)
| Project name |
Technical requirement |
Unit |
Notes |
| No load rated output voltage |
5V±2% |
Vdc |
|
| Short-time maximum output current |
≥6000 |
mA |
|
| Rated output current |
5900 |
mA |
|
| Voltage regulation |
±0.5 |
% |
|
| Load regulation |
±0.5 |
% |
|
| Transfer efficiency |
Vin=5Vdc, output full load 90 |
% |
|
| Output ripple and noise (mVp-p) |
Pure resistive load, 20MHz bandwidth, peak to peak |
mV |
|
| Output over-current protection |
the maximum load 110-200% |
Vdc |
|
| Insulation voltage |
Input- output, test in 1 minute, leakage current less than 1mA/1500V |
- |
|
| Insulation resisitance |
Input- output, insulation volaltge 500VDC/1000MΩ |
MΩ |
|
| Isolation capacitance |
Input- output, 100KHz/0.1V 1000pF |
- |
|
Note:
(1) For product model with output voltage ±5VDC or ±9VDC , the maximum output voltage accuracy is ±5% under 0% - 5% load condition
(2) When tested according to the 0%-00% load working condition, the load adjustment rate is ±5%
(3) 0%-5% load ripple & noise less than or equal to 5% Vo. Ripple and noise test method, Twisted pair test method, can add capacitive load at the output to reduce light load ripple

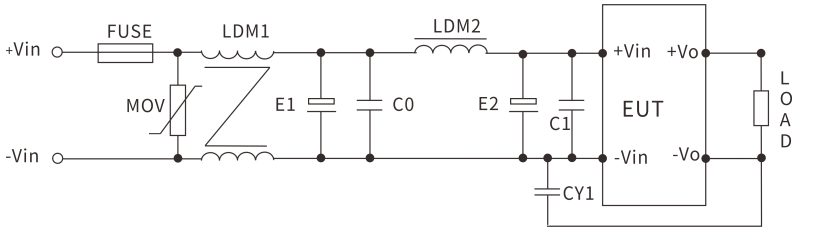

Typical Application Circuits
EMC parameter recommendation
| Component No. |
24V Input Product |
48V Input Product |
110V Input Product |
| FMSE Fuse |
Access the corresponding fuse accrding to customer needs |
| MOV/Varistor |
14D560K |
14D101K |
14D201K |
| LDM1/Common mode inductance |
10mH |
15mH |
30mH |
| CO,C1 Ceramic capacitors |
100μF/50V |
100μF/100V |
100μF/200V |
| E1,E2 Electrolytic capacitor |
1μF/50V |
1μF/100V |
0.47μF/250V |
| LDM2/Differential mode inductance |
10μH |
15μH |
68μH |
| CY1/Y2 Capacitance |
1nF/250vAC |
Notes：
* Fuses and varistors are basic parts of protection circuits (required).
* If the certification is required, the safety capacitor and common mode inductance cannot be omitted.
