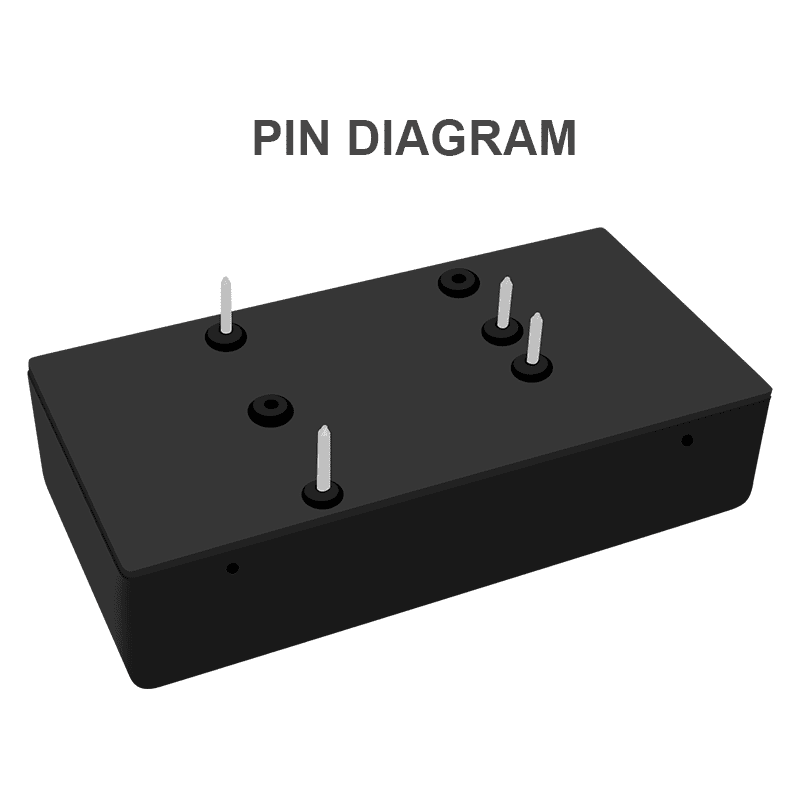

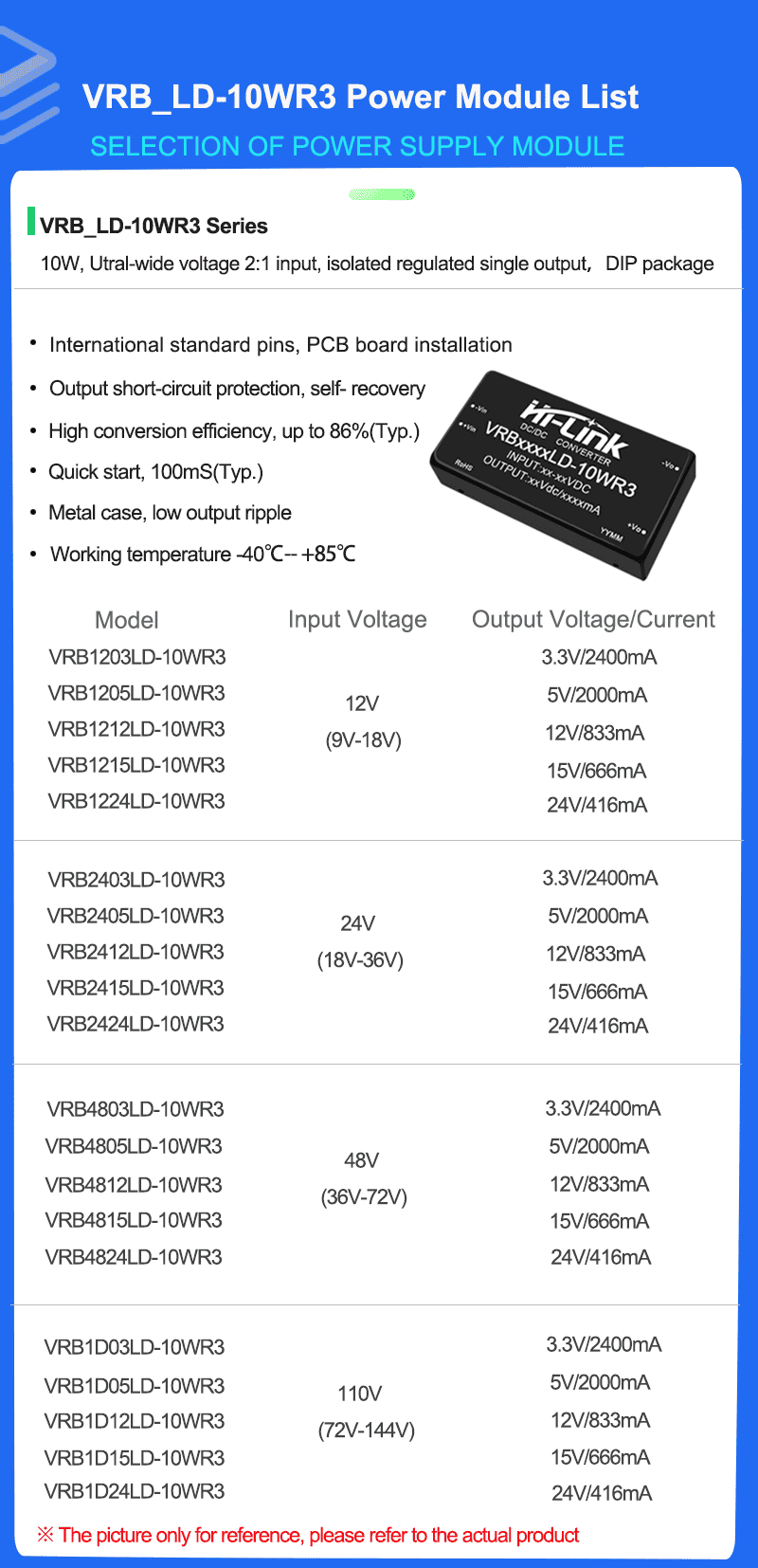

Product Feature
1. Wide input voltage range 2:1, isolated regulated output 10W
2. Isolation voltage 1500VDC
3. Transfer efficiency up to 86%
4. Quick Start：100mS(Typ)
5. Operating temperature range ：-40°C~+85°C
6. Small SIP package, metal case, low output ripple
7. International standard pin，direct installation of PCB board
8. Output short-circuit protection: continuous short circuit protection, automatic recovery
Input Characteristics
| Item |
Working conditions |
|
Min. |
Typ. |
Max. |
Unit |
| Input current(fully load/no-load） |
12VDC Input Series |
3.3V Output |
- |
714/25 |
733/42 |
|
| 5.0V Output |
- |
1067/25 |
1096/42 |
|
| 12.0V Output |
- |
845/25 |
867/42 |
|
| 15.0V Output |
- |
1003/25 |
1028/42 |
mA |
| 24.0V Output |
- |
911/25 |
1015/42 |
| 24VDC Input Series |
3.3V Output |
- |
357/13 |
366/21 |
| 5.0V Output |
- |
533/13 |
548/21 |
| 12.0V Output |
- |
423/13 |
434/21 |
| 15.0V Output |
- |
502/13 |
514/21 |
| 24.0V Output |
- |
455/13 |
508/21 |
| 48VDC Input Series |
3.3V Output |
- |
179/7 |
183/11 |
| 5.0V Output |
- |
267/7 |
274/11 |
| 12.0V Output |
- |
212/7 |
217/11 |
| 15.0V Output |
- |
251/7 |
257/11 |
| 24.0V Output |
- |
228/7 |
148/11 |
| 110VDC Input Series |
3.3V Output |
- |
78/3 |
80/2 |
| 5.0V Output |
- |
116/3 |
119/5 |
| 12.0V Output |
- |
109/3 |
111/5 |
| 15.0V Output |
- |
209/3 |
214/5 |
| 24.0V Output |
- |
105/3 |
107/5 |
| Reflected Ripple Current |
12VDC Input Series |
-- |
60 |
-- |
mA |
| 24VDC Input Series |
-- |
40 |
-- |
| 48VDC Input Series |
-- |
30 |
-- |
| 110VDC Input Series |
-- |
20 |
-- |
| Impulse voltage （Isec.max) |
12VDC Input Series |
-0.7 |
-- |
30 |
VDC |
| 24VDC Input Series |
-0.7 |
-- |
50 |
| 48VDC Input Series |
-0.7 |
-- |
10 |
| 110VDC Input Series |
-0.7 |
-- |
20 |
| Start voltage |
12VDC nominal input series, nominal input voltage |
- |
- |
9 |
| 24VDC nominal input series, nominal input voltage |
- |
- |
18 |
| 48VDC nominal input series, nominal input voltage |
- |
- |
36 |
| 110VDC nominal input series, nominal input voltage |
- |
- |
72 |
| Input under-voltage protection |
24VDC nominal input series, nominal input voltage |
- |
- |
- |
| 48VDC nominal input series, nominal input voltage |
- |
- |
- |
| 110VDC nominal input series, nominal input voltage |
- |
-- |
- |
| Start time |
Nominal input voltage and constant resistance load |
- |
100 |
-- |
ms |
| Input filter type |
|
|
PI Type |
| Hot plugged |
|
|
Non-support
|
| CNT（Ctrl）* |
Module turned on |
Ctrl dangling or TTL high level （3.5-12VDC） |
| Module turned off |
Ctrl Connect to GND or low level （0-1.2VDC） |
| Input current at shutdown |
- |
0 |
1 |
mA |
| Note: * The voltage of the Ctrl control pin is relative to the input pin GND, this series of products does not have this function. |
Output Characteristics
| Project name |
Working and testing condition |
+V01 |
-V02 |
| Min. |
Typ. |
Max. |
Min. |
Typ. |
Max. |
| output load |
load percentage |
0% |
- |
100% |
0% |
- |
100% |
| Output Voltage Accuracy |
|
- |
±1.0% |
±2.0% |
- |
±2.0% |
±3.0% |
| Linear adjustment rate |
input voltage range |
- |
±2.0% |
±0.5% |
- |
±1.5% |
±2.0% |
| Load adjustment rate |
20%~100% rate
load, balanced
|
-- |
±0.5%
|
±1.0% |
- |
±4.0% |
±5.0% |
| Ripple & Noise |
Pure resistive load, 20HMz bandwidth, peak-to-peak |
-- |
50mVp-p |
80mVp-p |
- |
50mVp-p |
80mVp-p |
| Output voltage regulation |
Input voltage range |
- |
No adjustment end |
- |
- |
No adjustment endNo adjustment end |
- |
| Output short circuit protection |
Continuous short circuit protection, automatic recovery
|
| Notes: Ripple and Noise Test Methods Twisted Pair Test Method |
Note:
1、The above is only a list of typical products. If you need products beyond the list, please contact our sales. 2、The maximum capacitive load indicates the maximum capacitive load that + VO or - vo can be connected to,If the value is exceeded, the product will not start normally..

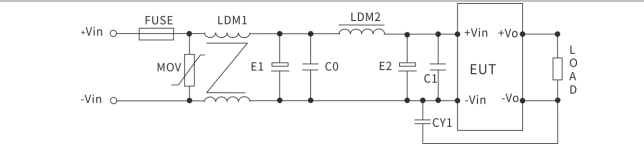

Typical Application Circuits
EMC parameter recommendation
| Component No. |
Function |
Recommended value |
| FMSE |
Slow blowing fuse, selected according to the actual input current of the customer |
| CY1 safety capacitor |
1nF/250Vac |
Notes：More details please feel free to contact hi-link team.
