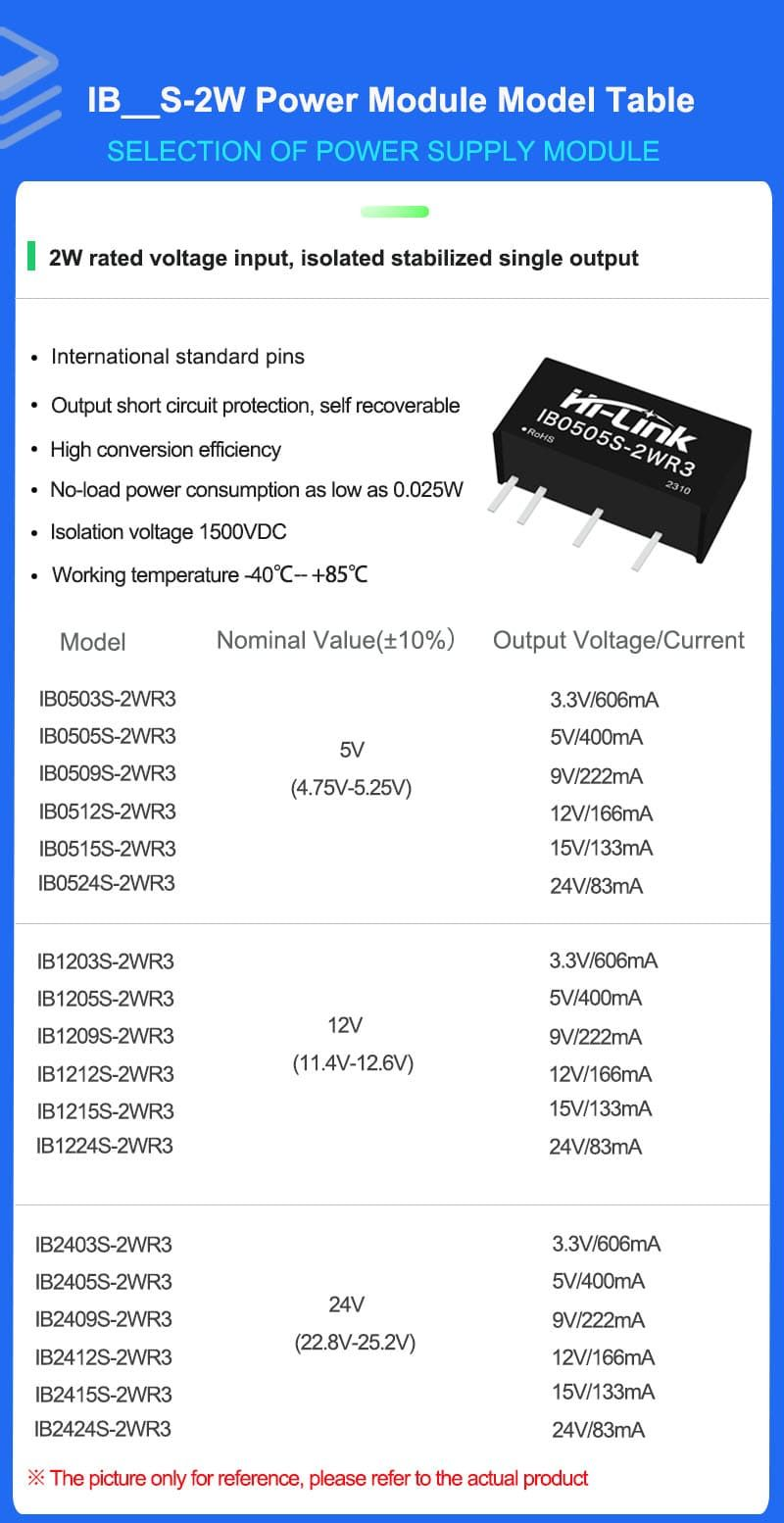

IB1212S-2WR3 IB1203/IB1209/IB1205/IB1224S-2W Hi-link DC-DC isolated power supply module with short-circuit protection

IB1212S-2WR3 IB1203/IB1209/IB1205/IB1224S-2W Hi-link DC-DC isolated power supply module with short-circuit protection

{{ product.price_format }}
{{ product.origin_price_format }}
库存:
SKU:{{ product.sku }}
型号: {{ product.model }}
重量: {{ product.weight }} 千克

{{ variable.name }}

{{ value.name }}

数量:

商品详情



Product Features:

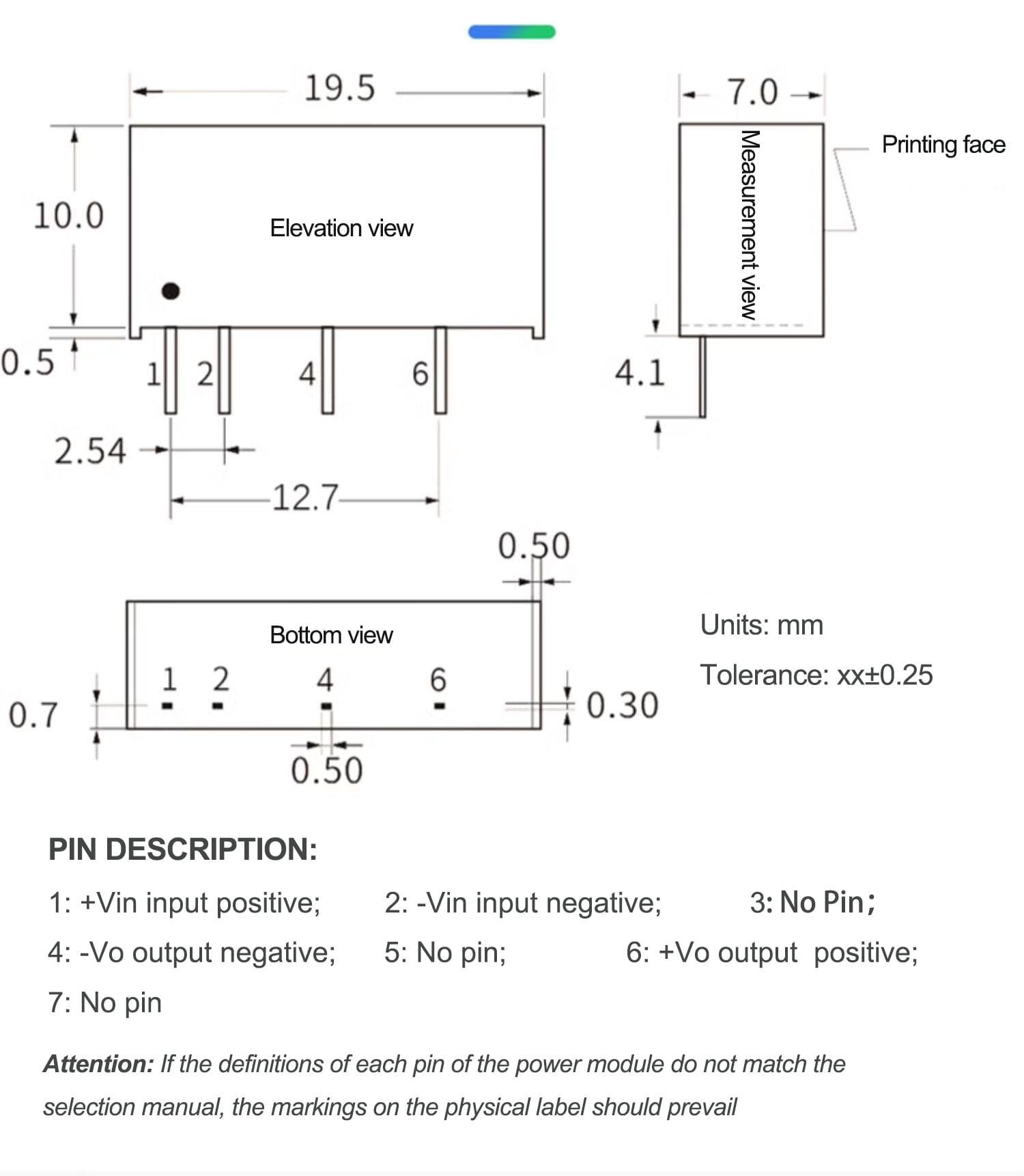

  • 7PinSIP international standard pin

  • Isolation voltage: 1500VDC

  • Low static current and high conversion efficiency

  • Low ripple coefficient and low noise

  • Working environment temperature: -40 ℃~+85 ℃

  • MTBF ≥ 3.5 million hours (3500000 Hrs)

  • Output short circuit protection: sustainable short circuit protection, automatic recovery

  • Built in soft start technology

  • Special specification products can be designed according to customer needs



Input characteristic:

Item Working Conditions Min. Typ. Max. Unit
Input voltage range 5VDC input series 4.75 5 5.25 Vdc
  12VDC input series 10.8 12 13.2
  24VDC input series 22.8 24 25.2
Max output power   -- -- 2 W
Input fliter typle

Capacitive filtering
Hot plug   Non-support
*This series of modules does not have input anti reverse connection function. It is strictly prohibited to input positive and negative reverse connections, otherwise it will cause irreversible damage to the module



Output characteristic:

Item Working and testing condition Min. Typ. Max. Unit
Output load load percentage 10 -- 100 %
Output Voltage Accuracy See Error Envelope Curve -- -- ±1 %
Linear adjustment rate Input voltage variation ±5% -- -- ±0.5 %
Load adjustment rate 10%~100% load -- +1 +2 %
Ripple & Noise Pure resistive load, 20HMz bandwidth, peak-to-peak -- 30 -- mVp-p
Temperature Drift Coefficient Full load   -- -- ±0.03 %/℃
Output short circuit protection Continuous short circuit protection, automatic recovery --
Notes: Ripple and Noise Test Methods Twisted Pair Test Method



General characteristic:

Item Working condition Min. Typ. Max. Unit
Insulation voltage Input output, test time of 1 minute, leakage current less than 1mA 1500 -- -- VDC
Insulation resistance  Input output, insulation voltage 500VDC 1000-M Ω 1000 -- -- MΩ
Isolation capacitor Input output, 100KHz/0.1V --40-- pF -- 40 -- pF
Working temperature  Use reference temperature derating curve chart -40 -- +85 ℃
Storage temperature   -40 -- +125
Temperature rise of the casing during operation   -- 25 --
Storage humidity No condensation 5 -- 95 %RH
Pin resistance to welding temperature Welding point distance from the shell 1.5mm, 10 seconds -- -- +300 ℃
Switching frequency  Full load, nominal voltage input -- 100 300 KHz
Shock   10-55Hz, 10G, 30 Min. along X, Y and Z
Shell material   Black flame retardant and heat-resistant plastic (UL94V-0)
Minimum time between failures MIL-HDBK-217F@25℃ 3.5X10 6 -- -- Hrs
