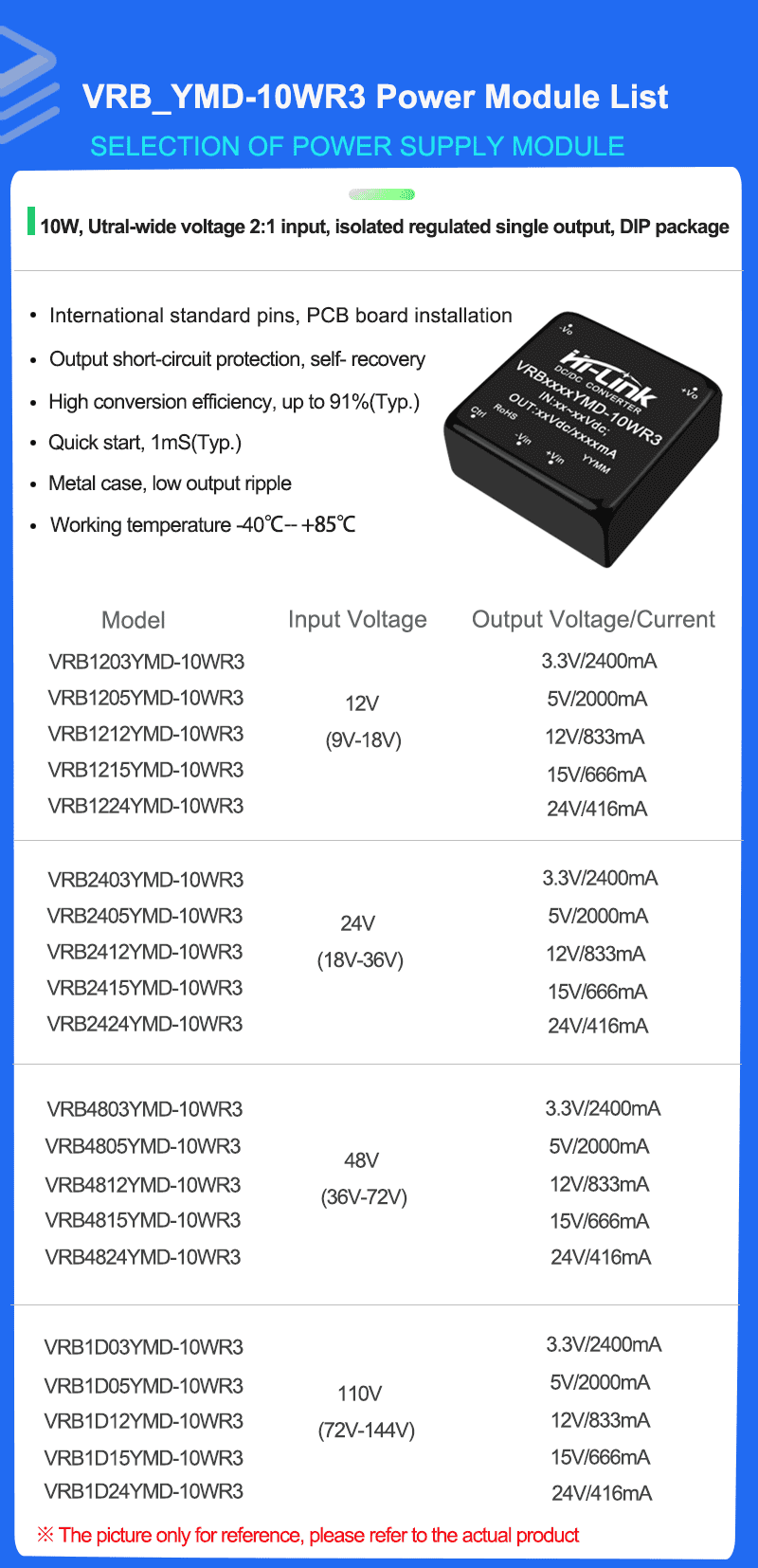

Product Feature
-
Ultra wide range input (2:1), 10W output
-
Conversion efficiency 91% (Typ)
-
Isolation voltage 1500Vdc
-
Standby power loss: 0.036W(Typ)
-
Ultra fast startup: 1ms(Typ)
-
Working temperature: -40°C ~ +85°C
-
Input undervoltage, output short circuit, overcurrent, overvoltage protection
-
Metal housing, low output ripple
Enviroment Condition
| Project name |
Qualification |
Unit |
Notes |
| Working enviroment temperature |
-40—+85 |
℃ |
|
| Storage temperture |
-40—+125 ℃ |
℃ |
|
| Relative humidity |
5—95 |
% |
|
| Heat dissipation mode |
natural cooling |
|
|
| Atmospheric pressure |
80—106 Kpa |
Kpa |
|
| Ripple & Noise |
50/80(max) |
Mvp-p |
|
Input Characteristics
| Item |
Working conditions |
|
Min. |
Typ. |
Max. |
Unit |
| Input voltage range(fully loaded/unloaded） |
12VDC Input Series |
3.3V |
- |
804/2 |
826/4 |
|
| others |
- |
980/2 |
1004/4 |
|
| 24VDC Input Series |
3.3V |
- |
402/1 |
1004/4 |
|
| others |
- |
490/1 |
413/2 |
| 48VDC Input Series |
3.3V |
- |
201/0.5 |
207/1 |
| others |
- |
87/0.3 |
251/1 |
| 110VDC Input Series |
3.3V |
- |
78/3 |
90/0.5 |
| others |
- |
100/0.3 |
109/0.5 |
| Reflected Ripple Current |
12VDC Input Series |
-- |
60 |
-- |
mA |
| 24VDC Input Series |
-- |
40 |
-- |
| 48VDC Input Series |
-- |
30 |
-- |
| 110VDC Input Series |
-- |
20 |
-- |
| Impulse voltage （Isec.max) |
12VDC Input Series |
-0.7 |
-- |
30 |
VDC |
| 24VDC Input Series |
-0.7 |
-- |
50 |
| 48VDC Input Series |
-0.7 |
-- |
100 |
| 110VDC Input Series |
-0.7 |
-- |
200 |
| Start voltage |
12VDC nominal input series, nominal input voltage |
- |
- |
9 |
| 24VDC nominal input series, nominal input voltage |
- |
- |
9 |
| 48VDC nominal input series, nominal input voltage |
- |
- |
18 |
| 110VDC nominal input series, nominal input voltage |
- |
- |
40 |
| Input undervoltage protection |
12VDC nominal input series, nominal input voltage |
5.5 |
6.5 |
|
| 24VDC nominal input series, nominal input voltage |
5.5 |
6.5 |
- |
| 48VDC nominal input series, nominal input voltage |
12 |
15.5 |
- |
| 110VDC nominal input series, nominal input voltage |
32 |
36 |
- |
|
Start time
|
Nominal input voltage and constant resistance load |
- |
1 |
- |
mS |
| Input filter type |
|
PI type
|
| Hot plugged |
|
Non-support
|
| CNT (Ctrl)* |
Module turned on |
Ctrl dangling or TTL high level (3.5-12VDC) |
|
| Module turned off |
Ctrl connect to GND or low level (0-1.2VDC) |
|
| Input current at shutdown |
- |
0 |
1 |
mA
|
Output Characteristics
| Project name |
Working and testing condition |
+V01 |
-V02 |
| Min. |
Typ. |
Max. |
Min. |
Typ. |
Max. |
| output load |
load percentage |
0% |
- |
100% |
0% |
- |
100% |
| Output Voltage Accuracy |
|
- |
±1.0% |
±2.0% |
- |
±2.0% |
±3.0% |
| Linear adjustment rate |
input voltage range |
- |
±0.2% |
±0.5% |
- |
±1.5% |
±2.0% |
| Load adjustment rate |
20%~100% rate
load, balanced
|
-- |
±0.5%
|
±1.0% |
- |
±4.0% |
±5.0% |
| Ripple & Noise |
Pure resistive load, 20HMz bandwidth, peak-to-peak |
-- |
50mVp-p |
80mVp-p |
- |
50mVp-p |
80mVp-p |
| Output voltage regulation |
Input voltage range |
- |
No adjustment end |
- |
- |
No adjustment endNo adjustment end |
- |
| Output short circuit protection |
Continuous short circuit protection, automatic recovery
|
| Notes: Ripple and Noise Test Methods Twisted Pair Test Method |
|
|
|
Note:
1、The above is only a list of typical products. If you need products beyond the list, please contact our sales. 2、The maximum capacitive load indicates the maximum capacitive load that + VO or - vo can be connected to,If the value is exceeded, the product will not start normally..
Typical Application Circuits
EMC parameter recommendation
| Component No. |
Function |
Recommended value |
| FMSE |
Slow blowing fuse, selected according to the actual input current of the customer |
| CY1 safety capacitor |
1nF/250Vac |
Notes：More details please feel free to contact hi-link team.
