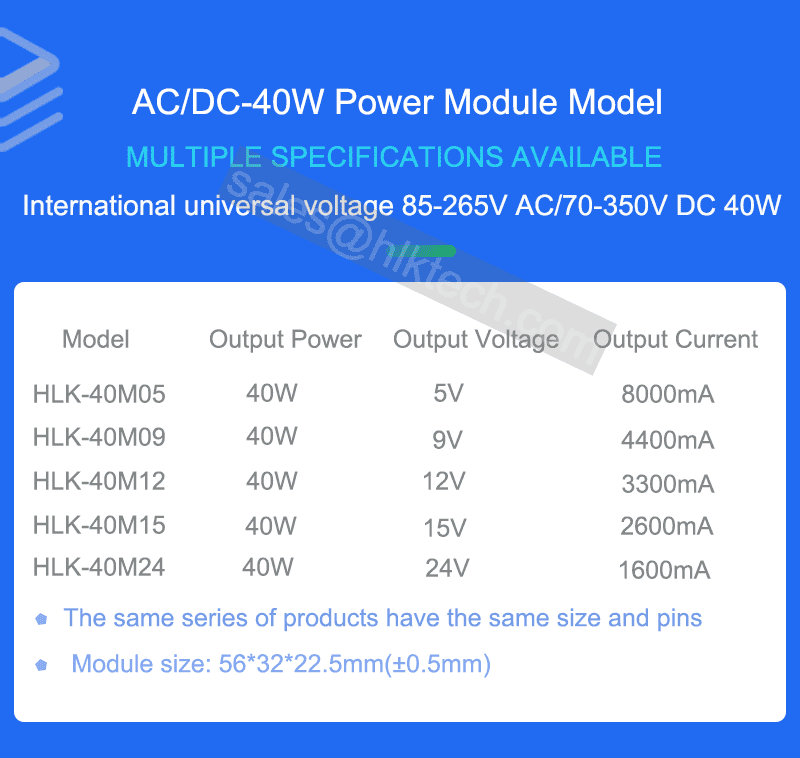

AC/DC 40w GaN Step Down mini Power Supply Module Converter Intelligent household switch power module 40M09 40M12 40M15 40M24

库存:

SKU:{{ product.sku }}

型号: {{ product.model }}

重量: {{ product.weight }} 千克

数量:

商品详情

Download files:

Product Features

GNS-Gallium Nitride Solution

Wide range input 85-264VAC/70-350VDC

Input and output isolation voltage 3000VAC

No-load power consumption ≤0.1W

Working temperature range:-25℃

Fully enclosed plastic housing, in keeping with UL94V-0 level

High output short circuit and over-current protection and self recovery glue potting, dustproof, moisture-proof, shockproof, flame-retardant

Meet UL/CE/EMC and safety testing requirements

Using high-quality enviromentally friendly waterproof thermal conductive

Environment Condition

Item	Technical Parameters	Notes
Working Temerature	-25—+60 ℃
Storage temperature	-40—+80 ℃
Relative humidity	5—95 %
Thermal methods	Natural cooling
Atmospheric pressure	80—106 Kpa
Altitude	≤2000 m
Vibration coefficient	10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes	Meets requirements for secondary road transportation

Input Features( test at room temperature)

Item	Technical Parameters	Notes
Rated input voltage	100-240Vac
Input vlotage range	85-264VAC	or 70-350VDC
The maximum input voltage	270VAC
The maximum input CURRENT	≤0.3A
Input inrush current	≤34A
Input low start	≤50mS
External fuse recommended	2A/250Vac or 10Ω wire wound resistance,	Slow blow

Note: Tested at room temperature

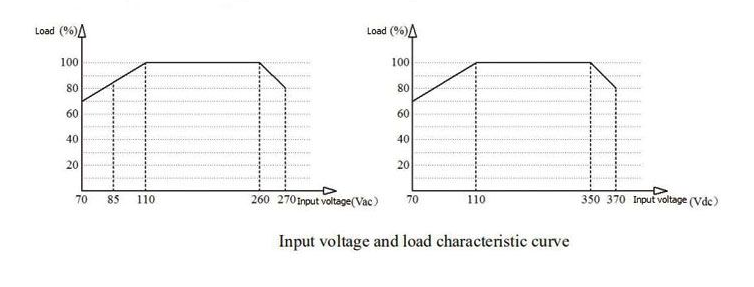

Input Voltage & Load Characteristics

Working Environment Temperture & Load Characteristics

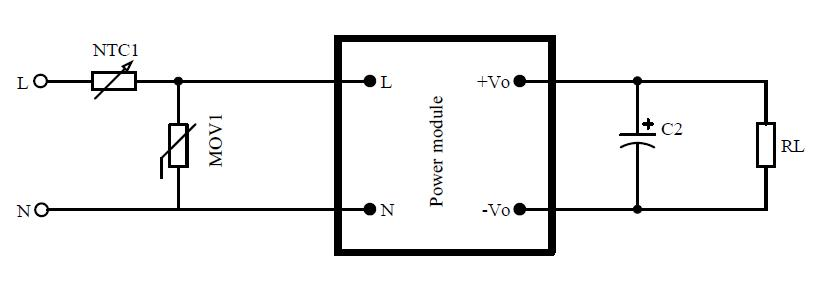

Typical Application Circuit

Safety Characteristics

Meet UL/CE requirements

(UL/CE certification requires customers to self-certify)

Safe compatible with battery

The input end design adopts UL certification 0.5A insurance

The fire ration of PCB board is 94-V0

Safety standards comply with UL1012,EN60950,UL60950

Insulation resistance I/P-O/P＞100M 0hms/500Vdc 25℃ 70%RH

Conforms to radiation EN55011, EN55022(CISPR22)

Electrostatic discharge IEC/EN 61000-4--2 level 4 8KV/15KV

Temperature rise safety design

Under normal conditons, the maximum temperature rise of the inner surface of the power supply capacitor,

main converter, etc. does not exceed 90℃，and the maximum temperature rise of the shell surface does not exceed 60℃

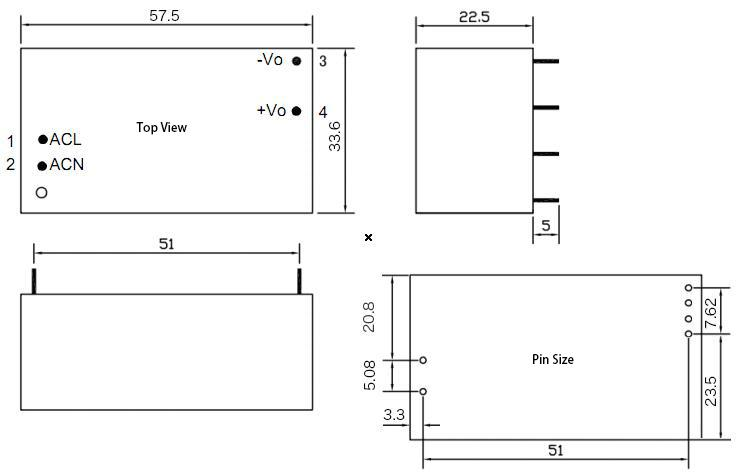

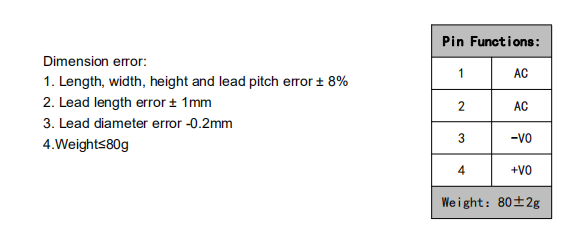

Dimension and Weight
