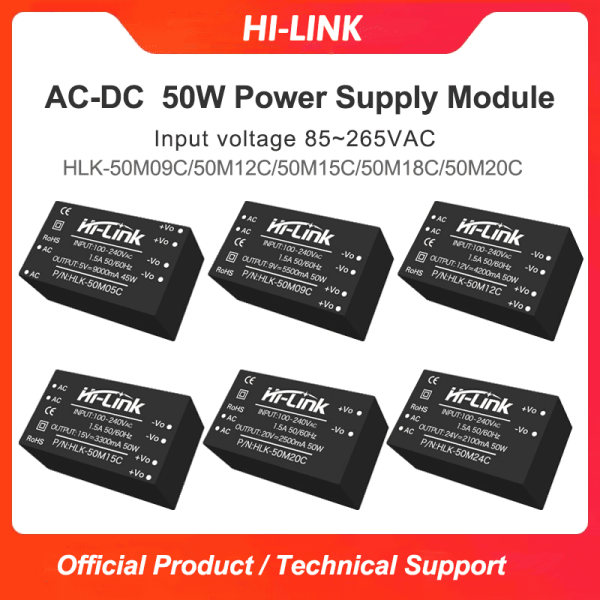

Product Features
-
Ultra small and the smallest volume in the industry in terms of homogeneity
-
Global universal input voltage (100~240Vac)
-
Low power consumption, green environmental protection, no-load loss<0.21W
-
Low ripple, low noise
-
Good output short circuit and overcurrent protection with self recovery capability
-
High efficiency and high power density
-
Input/output isolation withstand voltage 3000Vac
-
100% full load aging and testing
-
High reliability, long-life design, continuous working time greater than 100000 hours 9
-
Meet UL, CCC, and CE requirements; Product design meets EMC and safety testing requirements
-
Adopting high-quality environmentally friendly waterproof thermal conductive adhesive for sealing, moisture-proof and vibration proof, meeting the IP65 standard for waterproof and dustproof
-
Economic solutions with high cost-effectiveness
-
Can work without external circuits
Environment Condition
Project name
|
Technical standard |
Unit |
Remark |
| Working Temerature |
-25—+60 |
℃ |
|
| Storage temperature |
-40—+80 |
℃ |
|
| Relative humidity |
5—95 |
% |
|
| Thermal methods |
Natural cooling |
|
|
| Atmospheric pressure |
80—106 |
Kpa |
|
| Altitude |
≤2000 |
m |
|
| Vibration coefficient |
10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes |
|
Meets requirements for secondary road transportation |
Input Features( test at room temperature)
| Project name |
Technical requirement |
Unit |
Remark |
| Rated input voltage |
100-240 |
Vac |
|
| Input vlotage range |
85-264VAC/120-350VDC |
Vdc |
|
| The maximum input current |
≤1.5 |
A |
|
| Input inrush current |
≤60 |
A |
|
| Input low start |
≤50 |
mS |
|
| External fuse recommended |
3.15A/250Vac, Slow blow |
|
|

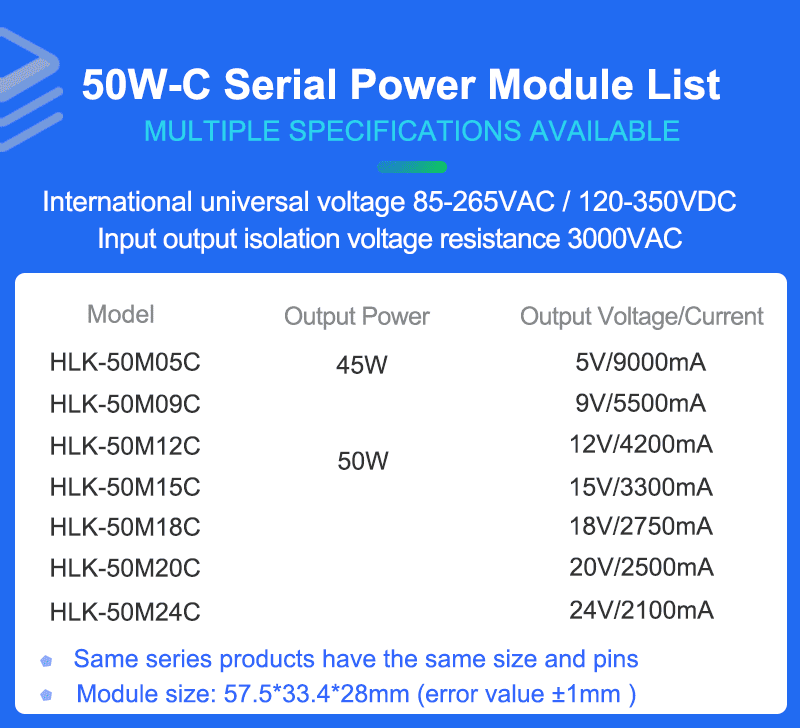

Output Features(9V/5500mA)
| Project name |
Technical requirement |
Unit |
Remark |
| No load rated output voltage |
9+0.3 |
vdc |
|
| Full-load rated output voltage |
9±0.3 |
vdc |
|
| Short term maximum output current |
≥5500 |
mA |
|
| Output current |
5500 |
mA |
|
| Voltage regulation |
士0.2 |
% |
|
| Load Regulation |
士0.5
|
% |
|
| Input low voltage efficiency |
Vin=115Vac， Output full load>90 |
% |
|
| Input high voltage efficiency |
Vin=230Vac，output full load>90 |
% |
|
|
Output ripple and noise
(mVp-p)
|
≤100
Rated input voltage, output at full load. Use a 20MHz bandwidth oscilloscope to test the load end with 47uF and 0.1uF capacitors.
|
mV |
|
| Output over-current protection |
Output 130-180% of maximum load |
A |
|
| Short Circuit Protection |
Short circuit directly during normal output, and automatically resume normal operation after the short circuit is removed |
|
Do not damage the entire machine |
Output Features(12V/4200mA)
| Project name |
Technical requirement |
Unit |
Remark |
| No load rated output voltage |
12+0.3 |
vdc |
|
| Full-load rated output voltage |
12±0.3 |
vdc |
|
| Short term maximum output current |
≥4500 |
mA |
|
| Output current |
4200 |
mA |
|
| Voltage regulation |
士0.2 |
% |
|
| Load Regulation |
士0.5
|
% |
|
| Input low voltage efficiency |
Vin=115Vac， Output full load>91 |
% |
|
| Input high voltage efficiency |
Vin=230Vac，output full load>91 |
% |
|
|
Output ripple and noise
(mVp-p)
|
≤100
Rated input voltage, output at full load. Use a 20MHz bandwidth oscilloscope to test the load end with 47uF and 0.1uF capacitors.
|
mV |
|
| Output over-current protection |
Output 130-180% of maximum load |
A |
|
| Short Circuit Protection |
Short circuit directly during normal output, and automatically resume normal operation after the short circuit is removed |
|
Do not damage the entire machine |
Output Features(15V/3500mA)
| Project name |
Technical requirement |
Unit |
Remark |
| No load rated output voltage |
15+0.3 |
vdc |
|
| Full-load rated output voltage |
15±0.3 |
vdc |
|
| Short term maximum output current |
≥3500 |
mA |
|
| Output current |
3300 |
mA |
|
| Voltage regulation |
士0.2 |
% |
|
| Load Regulation |
士0.5
|
% |
|
| Input low voltage efficiency |
Vin=115Vac， Output full load>91 |
% |
|
| Input high voltage efficiency |
Vin=230Vac，output full load>91 |
% |
|
|
Output ripple and noise
(mVp-p)
|
≤100
Rated input voltage, output at full load. Use a 20MHz bandwidth oscilloscope to test the load end with 47uF and 0.1uF capacitors.
|
mV |
|
| Output over-current protection |
Output 130-180% of maximum load |
A |
|
| Short Circuit Protection |
Short circuit directly during normal output, and automatically resume normal operation after the short circuit is removed |
|
Do not damage the entire machine |
Output Features(24V/2100mA)
| Project name |
Technical requirement |
Unit |
Remark |
| No load rated output voltage |
24+0.3 |
vdc |
|
| Full-load rated output voltage |
18±0.4 |
vdc |
|
| Short term maximum output current |
≥2200 |
mA |
|
| Output current |
2100 |
mA |
|
| Voltage regulation |
士0.2 |
% |
|
| Load Regulation |
士0.5
|
% |
|
| Input low voltage efficiency |
Vin=115Vac， Output full load>91 |
% |
|
| Input high voltage efficiency |
Vin=230Vac，output full load>91 |
% |
|
|
Output ripple and noise
(mVp-p)
|
≤100
Rated input voltage, output at full load. Use a 20MHz bandwidth oscilloscope to test the load end with 47uF and 0.1uF capacitors.
|
mV |
|
| Output over-current protection |
Output 130-180% of maximum load |
A |
|
| Short Circuit Protection |
Short circuit directly during normal output, and automatically resume normal operation after the short circuit is removed |
|
Do not damage the entire machine |

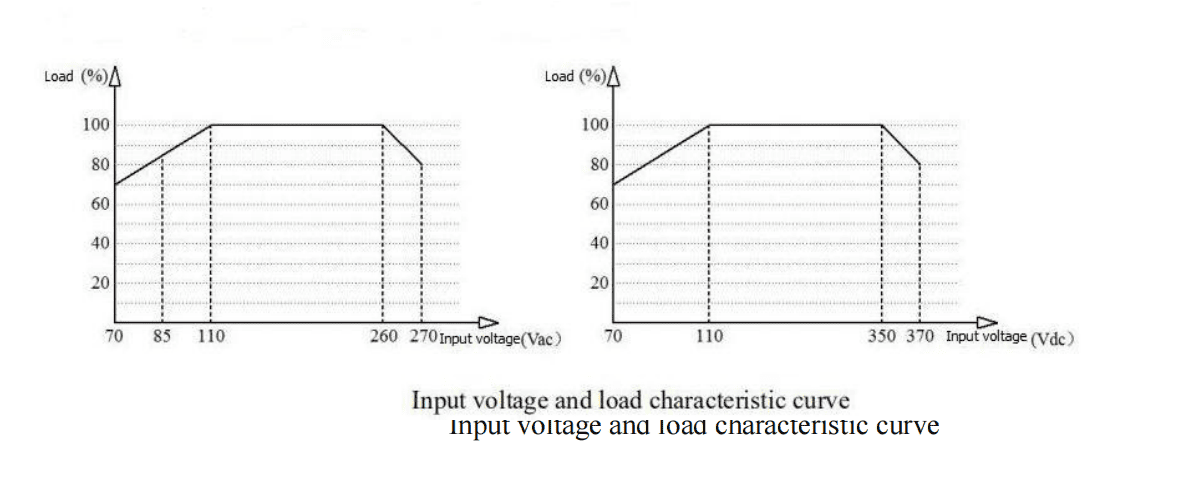

Input Voltage & Load Characteristics

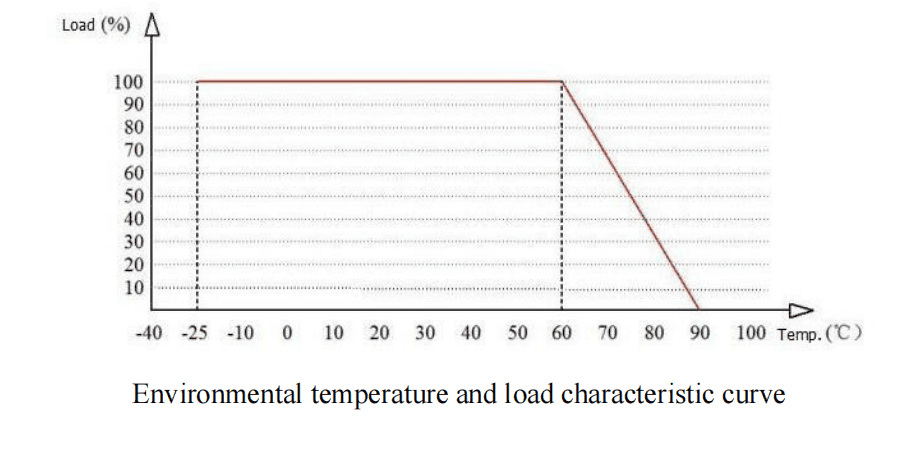

Working Environment Temperature & Load Characteristics
Typical Application Circuit

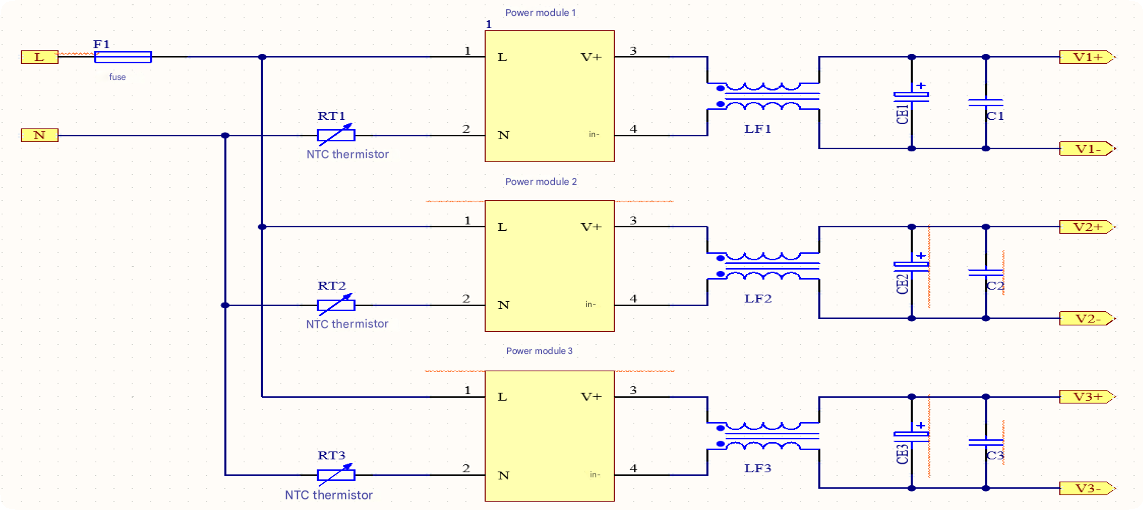

Multi Channel Application Circuit
Parameter Recommendation
F1/Fuse:1A/250Vac or 10Ω wire wound resistor, slow fuse
MOV1/Varistor:10D561K(The cumulative surge is to protect the module from damage)
C1/Safety capacitance: 0.1uF/275VAC(Filtering/safety protection/EMC certification)
L1/Common-mode inductance:Sensible value 10-30mH(testing requirements 1KHZ/0.3V current:100-500mA). EMI filtering
Safety Characteristics
Meet UL/CE requirements(UL/CE certification requires customers to self-certify)
Safe compatible with battery
The input end design adopts UL certification 1A insurance
The fire ration of PCB board is 94-V0
Safety standards comply with UL1012,EN60950,UL60950
Insulation voltage I/P-O/P＞2500Vac
Insulation resistance I/P-O/P＞100M 0hms/500Vdc 25℃ 70%RH
Conforms to radiation EN55011, EN55022(CISPR22)
Electrostatic discharge IEC/EN 61000-4--2 level4 8KV/15KV
recommended
