Product Feature

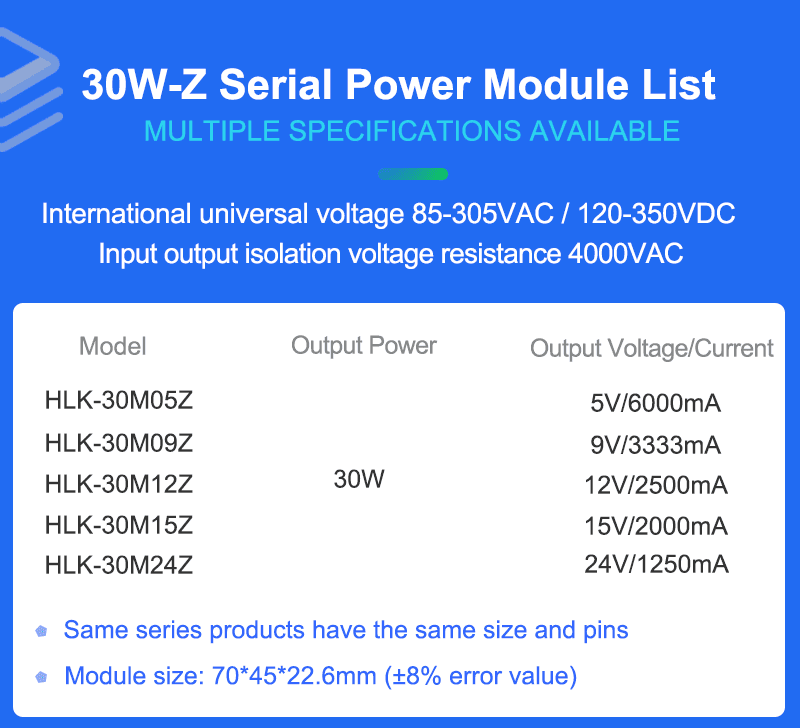

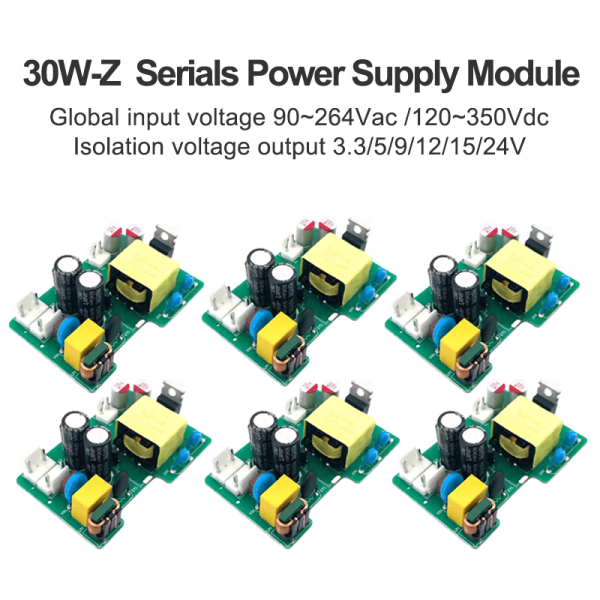

The HLK-30M-Z series bare board power module is a small-sized, high-efficiency module power supply designed by Hi-link Electronics for customers. Having global input voltage, advantages include range, low temperature rise, low power consumption, high efficiency, high reliability, and high safety isolation. Widely used in smart homes, automation control, and communication in industries such as telecommunications equipment and instrumentation.
Product Specifications
-
Ultra thin, compact, and small volume in the industry
-
Global universal input voltage (100~240Vac)
-
Low power consumption, green environmental protection, no-load loss<0.5W
-
Low ripple and low noise
-
Good output short-circuit and overcurrent protection and self recovery
-
Input/output isolation withstand voltage 4000Vac, surge resistance 4KV
-
100% full load aging and testing
-
High reliability and long-life design, with continuous working time greater than 70000 hours
-
Meet the circuit requirements of UL and CE; Product design meets EMC and safety testing requirements
-
Adopting high-quality environmental protection, moisture resistance, and vibration resistance to meet various requirements and standards
-
Economic solutions with high cost-effectiveness
-
Can work without external circuits
-
High efficiency and high power density
Environment condition
| Item name |
technical index |
Unit |
Remark |
| Working Temerature |
-25—+60 |
℃ |
|
| Storage Temerature |
-40—+80 |
℃ |
|
| Relative humidity |
5—95 |
% |
|
| Thermal methods |
natual cooling |
|
|
| Atmospheric pressure |
80—106 |
Kpa |
|
| Altitude |
≤2000 |
m |
|
| Vibration coefficient |
10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes
|
Meets requirements for secondary road transportation |
Input Features(test at room temperature)
| Item name |
technical index |
Unit |
Remark |
| Rated input voltage |
100-240Vac |
|
|
| Input vlotage range |
90-264Vac |
|
or 120-350Vdc |
| The maximum input CURRENT |
≤0.7A |
|
|
| Input inrush current |
≤50A |
|
|
| Input low start |
≤3S |
|
|
| Long-term reliablity |
MTBF≥100000H |
|
|
Output Features (5V/6000mA)
| Item name |
Technical index |
Unit |
Remark |
| No-load rated output voltage |
5.0±0.1Vdc |
Vdc |
|
| Full-load rated output voltage |
5.0±0.2Vdc |
Vdc |
|
| Short term maximum output current |
7200mA |
mA |
|
| Rated output current |
6000mA |
mA |
|
| Voltage regulation rate |
≤±2
|
% |
|
| Load regulation rate |
≤±5 |
% |
|
|
Input low voltage efficiency
|
Vin=115Vac， Output full load ≥ 85
|
% |
|
|
Input high voltage efficiency
|
Vin=230Vac， Output full load ≥ 87 |
% |
|
|
Output ripple and noise
(mVp-p)
|
≤120
Rated input voltage, output at full load. Using a 20MHz bandwidth oscilloscope,
Test the load end with 10uF and 0.1uF capacitors.
|
mV |
|
| Switching on/off overshoot amplitude |
（Rated input voltage, output with 10% load) ≤10%VO |
%VO |
|
| Output overcurrent protection |
Output 110-130% of maximum load |
A |
|
| OUtput Short Circuit Protection |
Short circuit directly during normal output, and automatically resume normal operation after the short circuit is removed
|
|
Do not damage the entire machine |
Output Features (12V/2500mA)
| Item name |
Technical index |
Unit |
Remark |
| No-load rated output voltage |
12.0±0.1Vdc |
Vdc |
|
| Full-load rated output voltage |
12.0±0.2Vdc |
Vdc |
|
| Short term maximum output current |
3000mA |
mA |
|
| Rated output current |
2500mA |
mA |
|
| Voltage regulation rate |
≤±2
|
% |
|
| Load regulation rate |
≤±5 |
% |
|
|
Input low voltage efficiency
|
Vin=115Vac， Output full load ≥ 85
|
% |
|
|
Input high voltage efficiency
|
Vin=230Vac， Output full load ≥ 87 |
% |
|
|
Output ripple and noise
(mVp-p)
|
≤120
Rated input voltage, output at full load. Using a 20MHz bandwidth oscilloscope,
Test the load end with 10uF and 0.1uF capacitors.
|
mV |
|
| Switching on/off overshoot amplitude |
（Rated input voltage, output with 10% load) ≤10%VO |
%VO |
|
| Output overcurrent protection |
Output 110-130% of maximum load |
A |
|
| OUtput Short Circuit Protection |
Short circuit directly during normal output, and automatically resume normal operation after the short circuit is removed
|
|
Do not damage the entire machine |
Output Features (24V/1250mA)
| Item name |
Technical index |
Unit |
Remark |
| No-load rated output voltage |
24.0±0.1Vdc |
Vdc |
|
| Full-load rated output voltage |
24.0±0.2Vdc |
Vdc |
|
| Short term maximum output current |
1500mA |
mA |
|
| Rated output current |
1250mA |
mA |
|
| Voltage regulation rate |
≤±2
|
% |
|
| Load regulation rate |
≤±5 |
% |
|
|
Input low voltage efficiency
|
Vin=115Vac， Output full load ≥ 85
|
% |
|
|
Input high voltage efficiency
|
Vin=230Vac， Output full load ≥ 87 |
% |
|
|
Output ripple and noise
(mVp-p)
|
≤120
Rated input voltage, output at full load. Using a 20MHz bandwidth oscilloscope,
Test the load end with 10uF and 0.1uF capacitors.
|
mV |
|
| Switching on/off overshoot amplitude |
（Rated input voltage, output with 10% load) ≤5%VO |
%VO |
|
| Output overcurrent protection |
Output 110-130% of maximum load |
A |
|
| OUtput Short Circuit Protection |
Short circuit directly during normal output, and automatically resume normal operation after the short circuit is removed
|
|
Do not damage the entire machine |

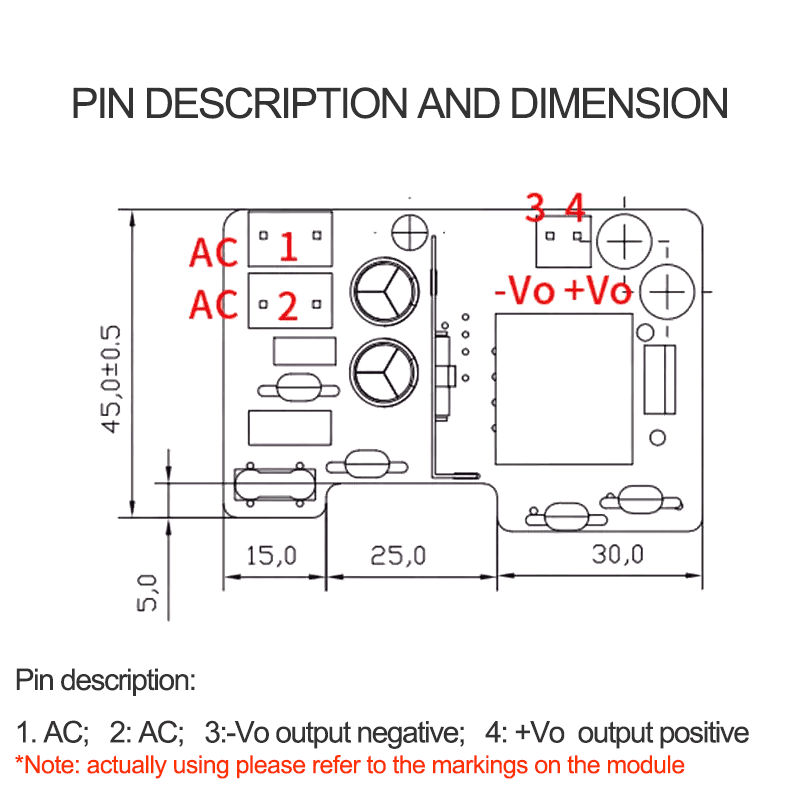

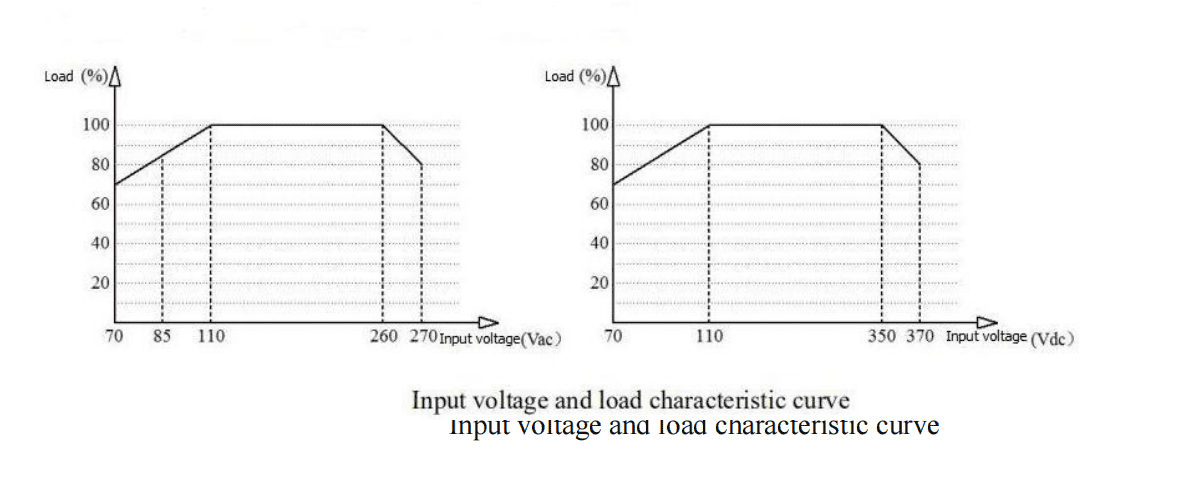

Input Voltage & Load Characteristics
recommended
