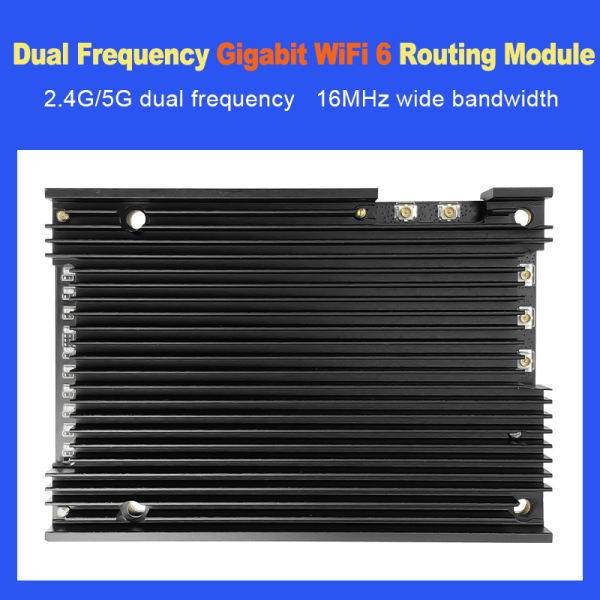

Dual Band WiFi 6 Gigabit AX3000 OpenWrt Ethernet UART WIFI Routing Module MT7981B+MT7976C+MT7531A chip Gateway Module with Cooling Fin HLK-RM65

Download Files

https://d.hlktech.net/Mobile/Download

Introduciton

HLK-RM65 is a high-performance embedded WIFI6 AX3000 module launched by Hi-Link Electronics, which is highly integrated the on chip system wireless network router module uses the MT7981B+MT7976C+MT7531A scheme, with a theoretical maximum wireless speed 574Mbps+2402Mbps. Used for high wireless performance, home entertainment, and home automation.

The SoC used is manufactured using advanced silicon technology and integrates dual core ARM ® Cortex-A53MPCoreTM, working up to 1.3GHz frequency and more DRAM bandwidth. It also includes various peripherals, including SGMII and USB3.0 (host) port. two 2.5Gbps HSGMII Ethernet interfaces have also been implemented. MT7981B, combined with RF chips, can provide

the WIFI6 AX3000 wireless router platform provides a dual frequency concurrent chipset solution.

Features

Power (2.4GHz and 5GHz) MIMO 802.11 A/B/G/N/AC/AX RF, power 20/40/80/160MHz
Flash/DDR3 expansion contains DDR3/DDR4-2133 2GB/4GB
Power: 2.4-2.4835GHz 5.180-5.885GHz
Chengdu 2.4GHz/5GHz PA, LNA
Cable connection method: I-PEX generation 1
Mouth wan. lan1. lan2. lan3. lan4. lan5. usb3.0;
Wide area network access PPPoE, mobile IP, IP, 3G/4G/5G
Static address configuration, virtual server configuration, port forwarding DMZ
Organization name: DC3.3V5A

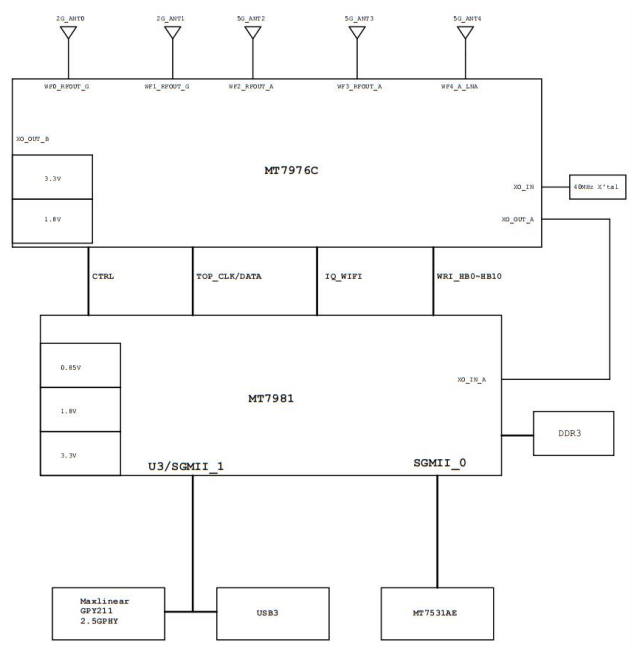

Diagram

Technical Specifications

Model	Mode	HLK-RM65
Wireless parameters	Wireless standards	2.4-2.4835GHz				5.180-5.885GHz
	Transmitting power	802.11b: +23±1.5dBm (11M)				802.11a: +20±1.5dBm (54M)
		802.11g: +20±2dBm (54M)				802.11n(20M): +18±2dBm (MCS7)
		802.11n(20M): +19±2dBm (MCS7)				802.11n(40M): +18±1.5dBm (MCS7)
		802.11n(40M): +19±1.5dBm (MCS7)				801.11ac(20M):+17.5±2dBm (MCS9)
		801.11ac(20M):+17±2dBm (MCS9)				801.11ac(40M):+17.5±1.5dBm (MCS9)
		801.11ac:(40M)+17±1.5dBm (MCS9)				801.11ac(80M):+17.5±1.5dBm (MCS9)
		802.11ax(20M): +17±1.5dBm (MCS11)				802.11ax(20M): +17±1.5dBm (MCS11)
		802.11ax(40M): +16.5±1.5dBm (MCS11)				802.11ax(40M): +17±1.5dBm (MCS11)
						802.11ax(80M): +17±1.5dBm (MCS11)
						802.11ax(160M): +15.5±1.5dBm (MCS11)
	Receiver sensitivity	Unit:dBm	ch1	ch6	ch13	unit:dBm	ch50	ch114	ch163
		2G BW20: (MCS0) -	-93.5	-93.5	-93.5	5G BW20: (MCS0)	-92.5	-92.5	-92.5
		2G BW20:(MCS7)	-74.5	-74	-74	5G BW20:(MCS7)	-73.5	-73.5	-73.5
		2G BW20: (MCS9)	-68.5	-68	-68	5G BW20: (MCS9)	-68	-68	-68
		2G BW20: (MCS11)	-63	-63	-63.5	5G BW20: (MCS11)	-62	-62	-62
		2G BW40: (MCS0)	-90.5	-90.5	-90.5	5G BW160: (MCS0)	-83	-83	-83
		2G BW40: (MCS7)	-71.5	-71.5	-71.5	5G BW160: (MCS7)	-64.5	-64.5	-64.5
		2G BW40: (MCS9)	-65.5	-65.5	-65.5	5G BW160: (MCS9)	-58.5	-59	-59
		2G BW40: (MCS11)	-60	-60	-60	5G BW160: (MCS11)	-53	-53.5	-53.5
	Antenna form	External: I-PEX first generation antenna base * 5
Hardware parameters	Storage	DDR3: 256M(2Gbit); Nand Flash: 128M(1Gbit)
	Hardware port	UART,GPIO, SPI,USB,PWM
	Ethernet port	Gigabit Ethernet port * 6: WAN * 1, LAN * 5
	USB	Partial foot multiplexing			USB3.0*
	PCIe				PCIe*1
	SGMII				2.5G SGMII*1
	Working voltage	3.3V
	Working current	Continuously sending=>Average: 2.8A@3.3V (It is recommended to have a 3.3V power supply capacity of over 5A) In normal mode=>Average: 1.27A@3.3
	IO drive capability	VMax：12ma
	Temperature	Working temperature:-20℃~80℃
	Passage size	60*90mm
	Storage temperature	Temperature: -40~+85 ℃, relative humidity: 5% -90% RH (non condensing)
Software parameters	Wireless network type	STA/AP/APClient
	Upgrade command	Web page upgrade, command network port upgrade
	Network protocol	IPv4, TCP/UDP
	Software environment	Openwrt
	User profile	Web page configuration

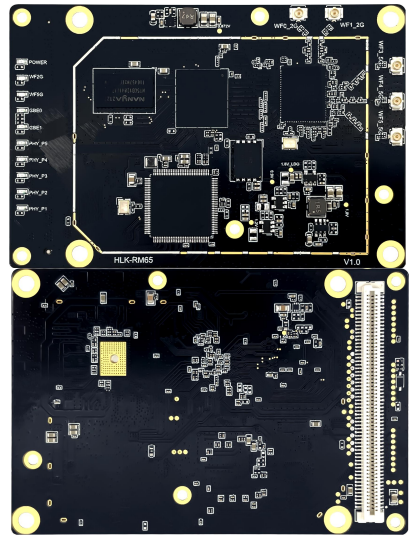

Product pictures

Electrical parameters

Parameter	Min	typical	Max	Unit
Module supply voltage	3.1	3.3	3.5	V
Chip supply voltage	3.1	3.3	3.5	V
I/O voltage	3.1	3.3	3.5	V
Module average power consumption	4.0			W
Module current peak	2.8			A
Power supply current requirements		≥5		A
Power supply ripple requirements		≤50		mV
ESD contact discharge		±2		KV
ESD non-contact discharge		±2		KV
