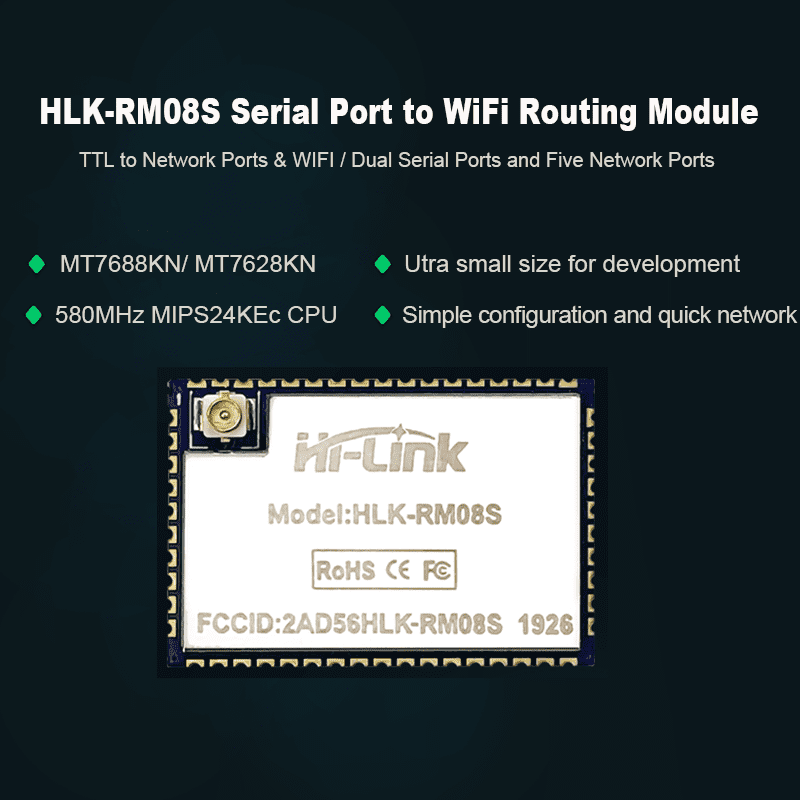

SMT package MT7688KN Chipset IOT Wireless Serial Port to Router Wifi module Transparent transmission model communucation wifi module HLK-RM08S

SMT package MT7688KN Chipset IOT Wireless Serial Port to Router Wifi module Transparent transmission model communucation wifi module HLK-RM08S

{{ product.price_format }}
{{ product.origin_price_format }}
Stock:
SKU:{{ product.sku }}
Model: {{ product.model }}
weight: {{ product.weight }} Kilogram

{{ variable.name }}

{{ value.name }}

Quantity:

Product Details



Download Files

https://d.hlktech.net/Mobile/Download



Product Parameters



  • High data processing ability，MCU frequency 580MHz
  • 150M Mbps
  • Support 802.11b/g/n mode
  • 20/40 channel bandwidth
  • Support 802.11v
  • Support AP,STA and AP,STA mixed
  • Fifth 10/100M adaptive com port
  • One USB2.0 host interface
  • Multiple interfaces SPI/SD-XC/eMMC
  • Rich peripheral interfaces，SPI,I2C,I2S,PCM,UART,JTAG,GPIO
  • Widely used in IOT
  • Inbuilt powerful PMU
  • Support 16 Multiple BSSID
  • Support QoS，WMM，WMM-PS

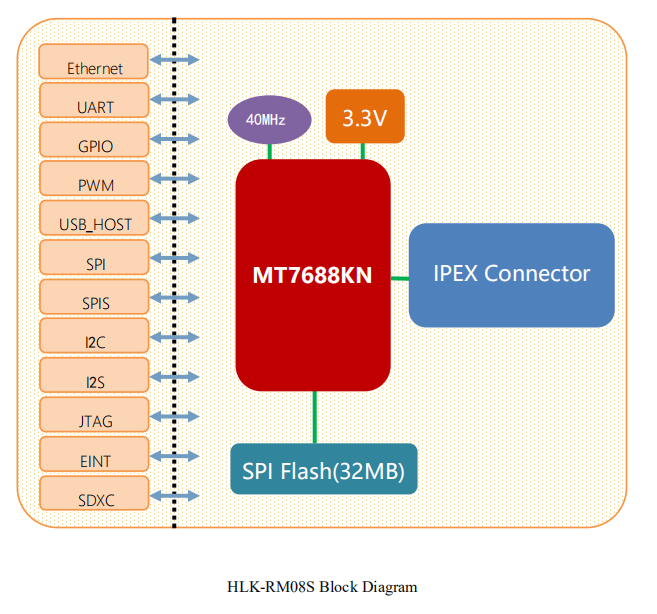

Block Diagram

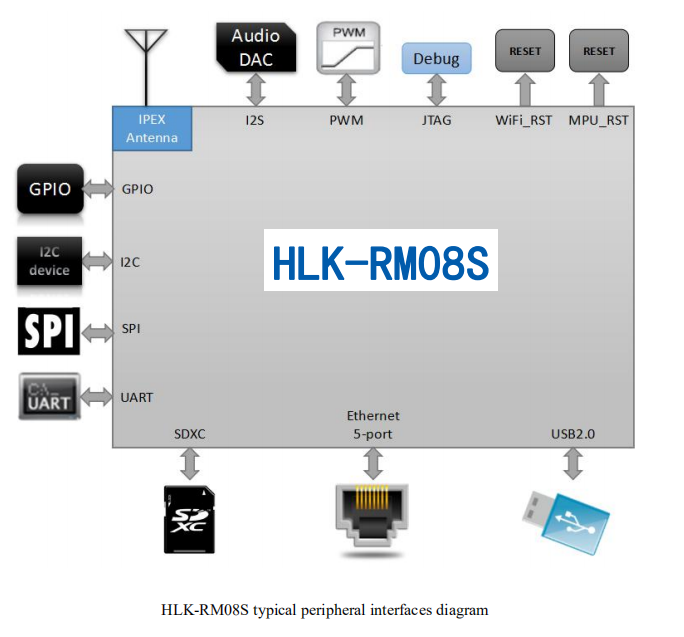

Typical Applications






Specificaion



Item Parameter
Model HLK-RM08S
Main Chip MT7688KN
I-Cache, D-Cache 64KB,32KB
Kemel MIPS24KEc
Main frequency 580MHz
RAM 64Mb
FLASH 32Mb
RF 1T1R 802.11n   2.4GHz
USB2.0 1
UART 2
Temperature Environmental temperature:-40℃~85℃
Humidity Working: 10-95%  (Nondondensing)
Storage: 5-95% (Nondondensing)
Size 17.4*25.8*2.8mm

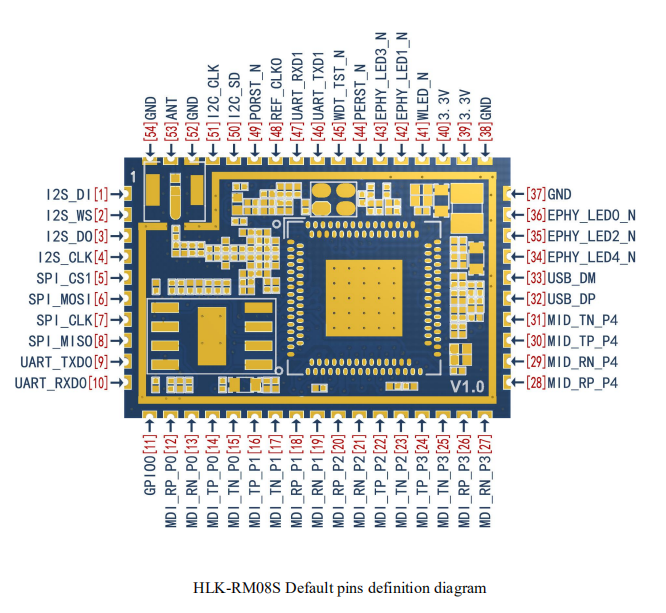

Pins Definition diagram
