Brief Introduction

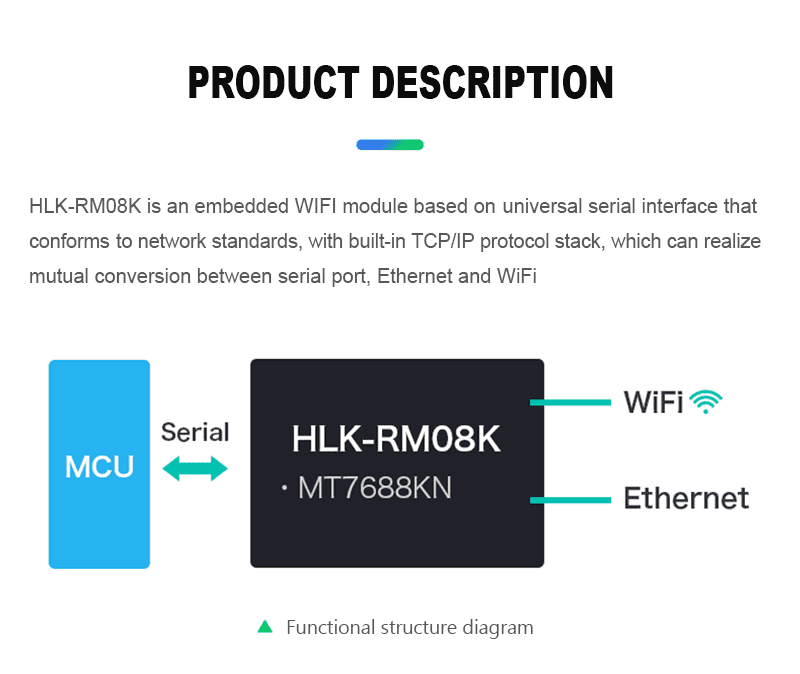

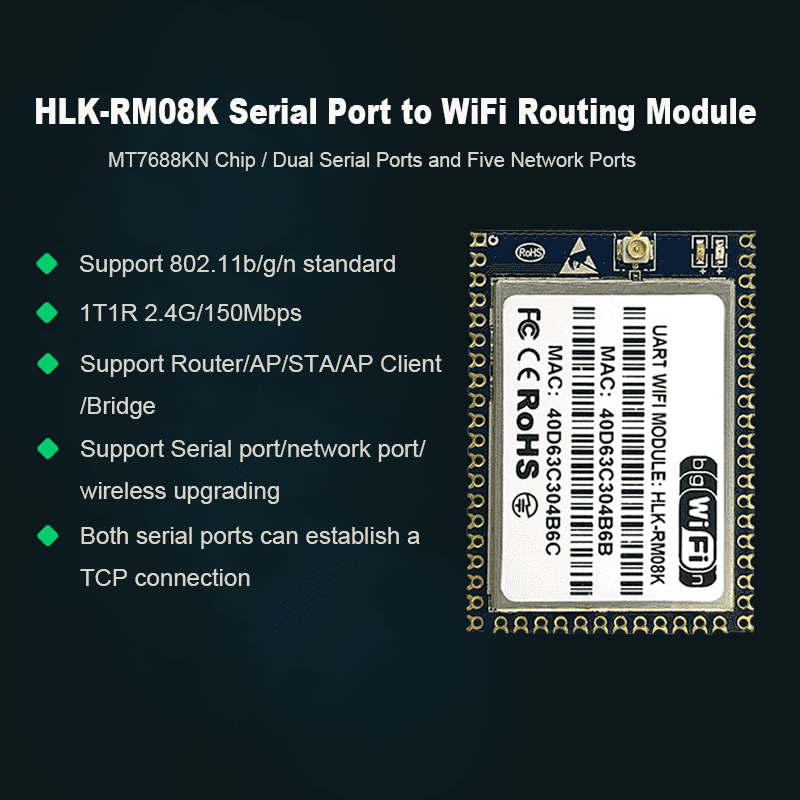

HLK-RM08K is a new low-cost embedded UART-ETH-WIFI module (serial port - Ethernet - Wireless network) developed by Shenzhen Hi-Link co., Ltd This product is an embedded module based on the universal serial interface network standard, built-in TCP / IP protocol stock, enabling the user serial port, Ethernet, wireless network (wifi) interface between the conversions. Through the HLK-RM08K module, the traditional serial devices do not need to change any configuration; data can be transmitted through the Internet network. Provide a quick solution for the user’s serial devices to transfer data via Ethernet.

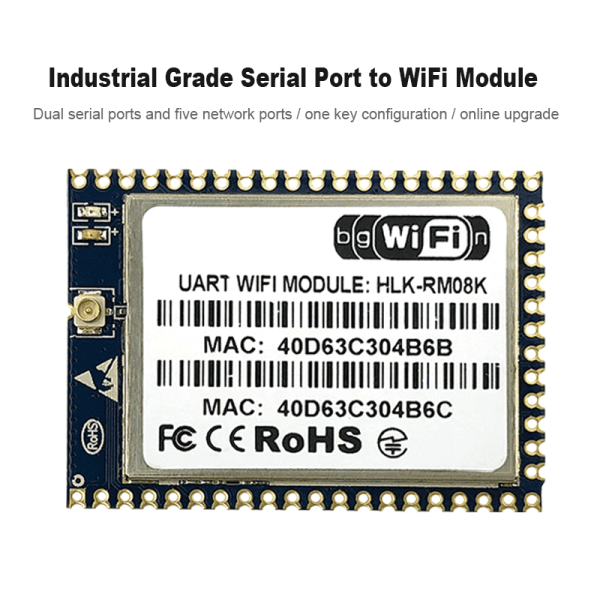

RM08K-4

Technical Specifications

Network Standard	Wireless: IEEE802.11n/ IEEE802.11g/IEEE802.11b
Network Standard	Wireless: IEEE802.3/ IEEE802.3u
Wireless Transmission Rate	11n:maximum up to 150Mbps
	11g:maximum up to 54Mbps
	11b:maximum up to 11Mbps
Tracks Number	1-14
Frequency Power	2.4-2.483G
Emission Range	12-15DBM
Interface	1WAN, 4 LAN, 2 Serial ports
Antenna
Antenna Type	Ecternal Antenna(IPEX)
Functional Parameters
WIFI work mode	Client/AP/Router
WDS Function	Support WDS wireless bridge connection
Wireless Security	Wireless MAC address filtering
	Wirelss ssecurity function switch
	64/128/152 bit WEP encryption
	WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism
Network Management	Remote web management
	Configuration file import and export
	WEB software upgrade
Serial to Ethernet
Maximum transmission	230400bps
TCP connection	Max connection number ＞20
UDP connection	Max connection number ＞20
Serial band rate	1200~2500000bps(2500000/n 1<=n<=65535 )
Other Parameters
Status indicator	Status indicator
Environment standard	Opearation temperature:-20-55℃
	Operating humidity:10%-90%RH(noncondensing)
	Storage temperature: -40-80℃
	Storage humidity: 5%-90%RH(noncondensing)
Additional properties	Frequency bandwidth optional: 20MHz. 40MHz. Automatic

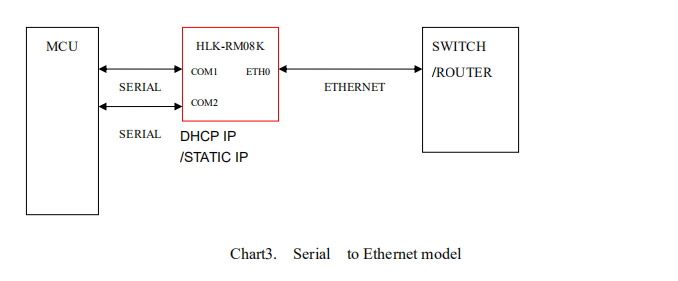

Serial to Ethernet

In this mode, ETH0 enable, WIFI function close. Ethernet can be configured as dynamic IP address (DHCP), can also be configured as static IP address (STATIC).

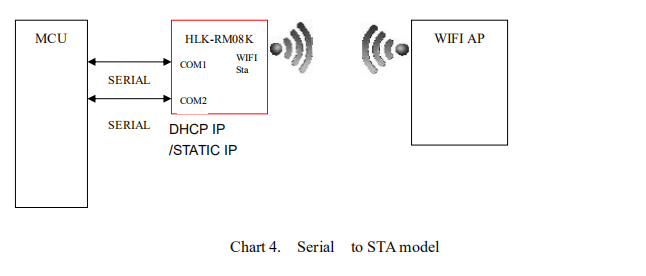

Serial to WIFI STA

In this mode, WIFI enable, module works in the STA mode, ETH function close. WIFI STA can be configured as dynamic IP address (DHCP), can also be configured as static IP address (STATIC).

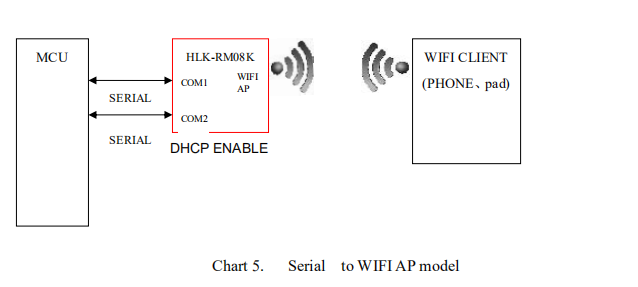

Serial to WIFI AP

In this mode, WIFI enable, module works in the AP mode, ETH function close. In this mode, WIFI device can connect with the module and become the device under WIFI LAN.

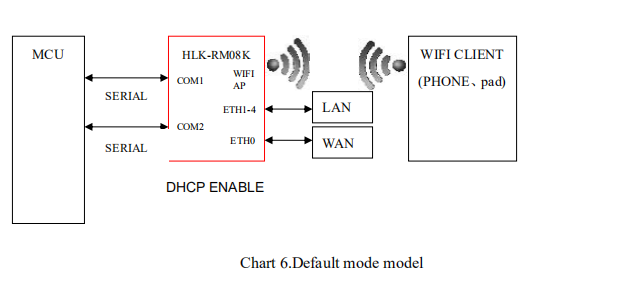

Default mode

In this mode, WIFI enable, module works in the AP mode, ETH function enable. ETH0 works as WAN, ETH1-4 works as LAN. In this mode, WIFI device can connect with the module and become the device under WIFI LAN. WAN default IP is dynamic IP address. LAN, WIFI for the same local area network, enabled by default DHCP Server .
