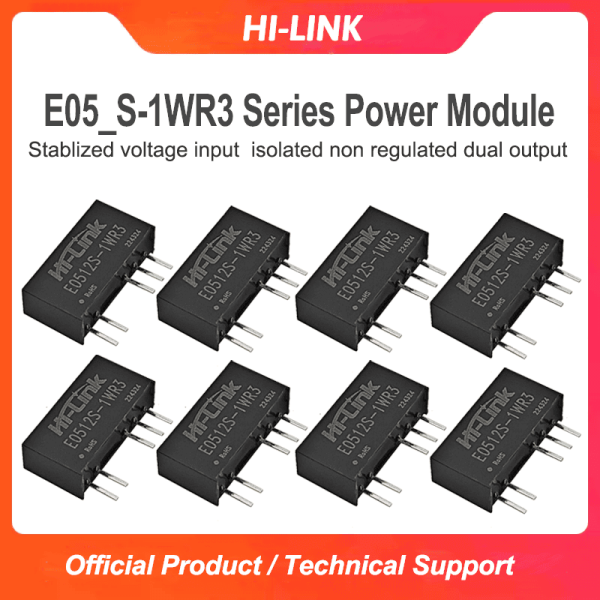

E0505S-1WR3 E0509/E0512/E0515/E0524S-1WR3 DC-DC isolated non stabilized dual output power converter module with short-circuit protection

E0505S-1WR3 E0509/E0512/E0515/E0524S-1WR3 DC-DC isolated non stabilized dual output power converter module with short-circuit protection

E0505S-1WR3 E0509/E0512/E0515/E0524S-1WR3 DC-DC isolated non stabilized dual output power converter module with short-circuit protection

{{ product.price_format }}

{{ product.origin_price_format }}

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }}

{{ value.name }}

Quantity:

Product Details

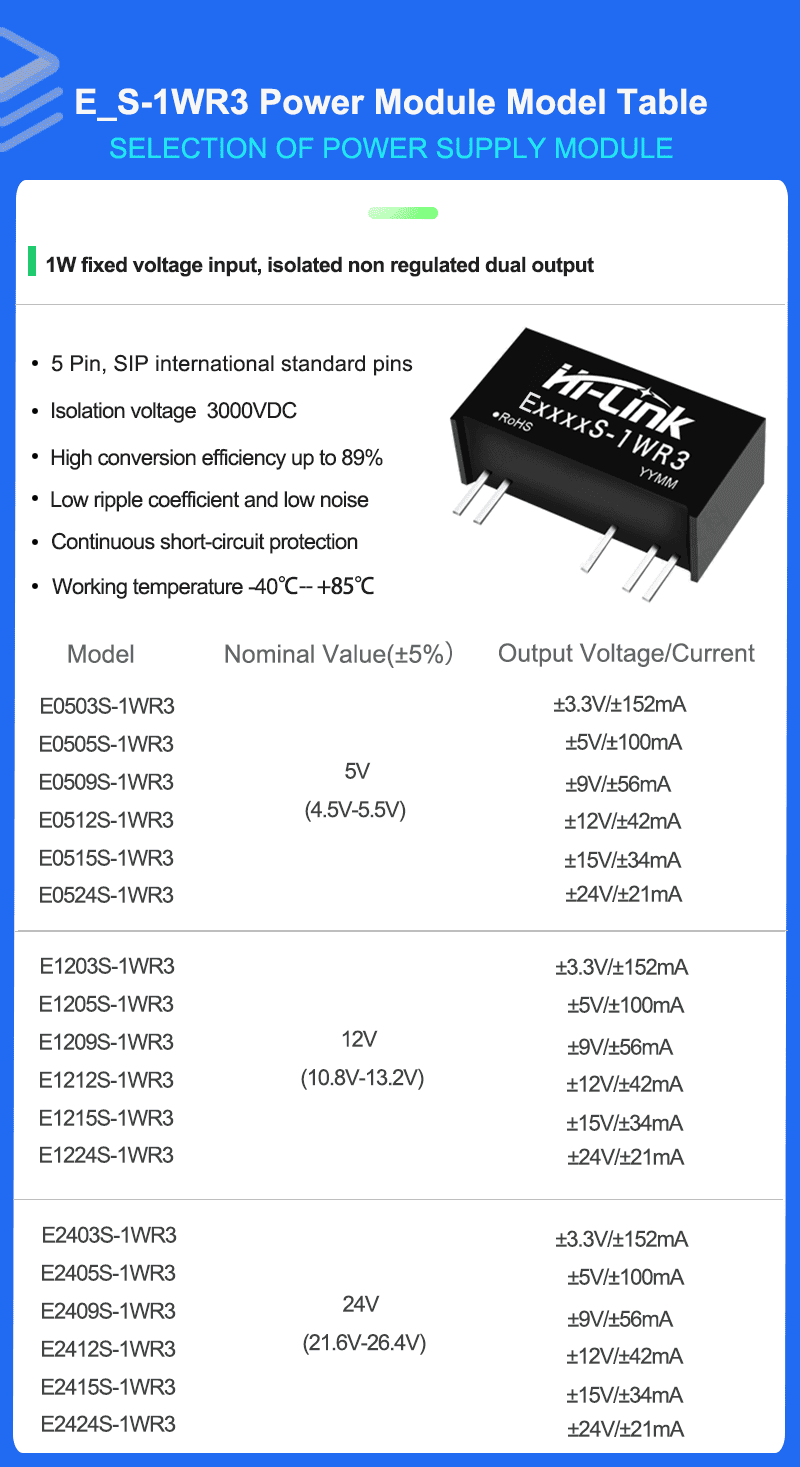

Product Features:

5Pin SIP international standard pin
Isolation voltage: 3000VDC
High conversion efficiency, up to 89%
Low ripple coefficient and low noise
Working environment temperature: -40 ℃~+85 ℃
MTBF ≥ 3.5 million hours (3500000 Hrs)
Output short circuit protection: sustainable short circuit protection, automatic recovery
Built in soft start technology
Special specification products can be designed according to customer needs

Input characteristic:

Item	Working Conditions	Min.	Typ.	Max.	Unit
	3.3VDC input series	--	370/3	--/15
	5VDC input series	--	235/3	--/15
Input voltage range	12VDC input series	--	99/3	--/15	Vdc
	15VDC input series	--	99/3	--/15
	24VDC input series	--	51/3	--/15
Reflected ripple current		--	15	--
Impulse Voltage	3.3VDC input series	-0.7	--	5	Vdc
	5VDC input series	-0.7	--	9
	12VDC input series	-0.7	--	18
	15VDC input series	-0.7	--	21
	24VDC input series	-0.7	--	30
Input fliter typle		Capacitive filtering
Hot plug		Non-support

Output characteristic:

Item	Working and testing condition		Min.	Typ.	Max.	Unit
Output load	load percentage		10	--	100	%
Output Voltage Accuracy			--	--	±15.0	%
Linear adjustment rate	Input voltage variation ±1%	3.3V output	--	--	±1.5	%
Linear adjustment rate	Input voltage variation ±1%	others	--	--	±1.2	%
Load adjustment rate	10%~100% load	3.3VDC output	--	10	--	%
		5VDC output	--	8	--	%
		9VDC output	--	8	--	%
		12VDC output	--	7	--	%
		15VDC output	--	6	--	%
		24VDC output	--	6	--	%
Ripple & Noise	Pure resistive load, 20HMz bandwidth, peak-to-peak		--	45	100	mVp-p
Temperature Drift Coefficient	Full load		--	--	±0.03	%/℃
Output short circuit protection	Continuous short circuit protection, automatic recovery
Notes: Ripple and Noise Test Methods Twisted Pair Test Method

General characteristic:

Item	Working condition	Min.	Typ.	Max.	Unit
Insulation voltage	Input output, test time of 1 minute, leakage current less than 1mA	3000	--	--	VDC
Insulation resistance	Input output, insulation voltage 500VDC 1000-M Ω	1000	--	--	MΩ
Isolation capacitor	Input output, 100KHz/0.1V --40-- pF	--	20	--	pF
Working temperature	Use reference temperature derating curve chart	-40	--	+85	℃
Storage temperature		-40	--	+125
Temperature rise of the casing during operation		--	25	--
Storage humidity	No condensation	5	--	95	%RH
Pin resistance to welding temperature	Welding point distance from the shell 1.5mm, 10 seconds	--	--	+300	℃
Switching frequency	Full load, nominal voltage input	--	100	--	KHz
Shock		10-55Hz, 10G, 30 Min. along X, Y and Z
Shell material		Black flame retardant and heat-resistant plastic (UL94V-0)
Minimum time between failures	MIL-HDBK-217F@25℃	3.5X10 6	--	--	Hrs
