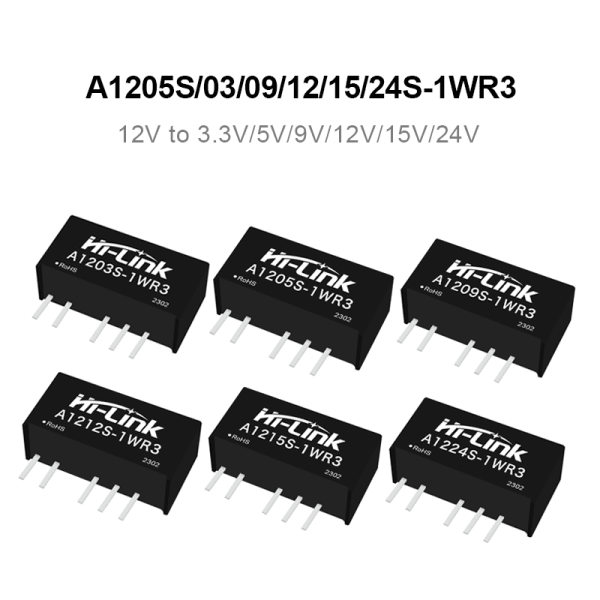

A1205S-1WR3/A1212S/A1215S/A1224S-1WR3 Dual output 12V to 3.3V/5V/9V/12V/15V/24V 1W DC to DC power module/converter

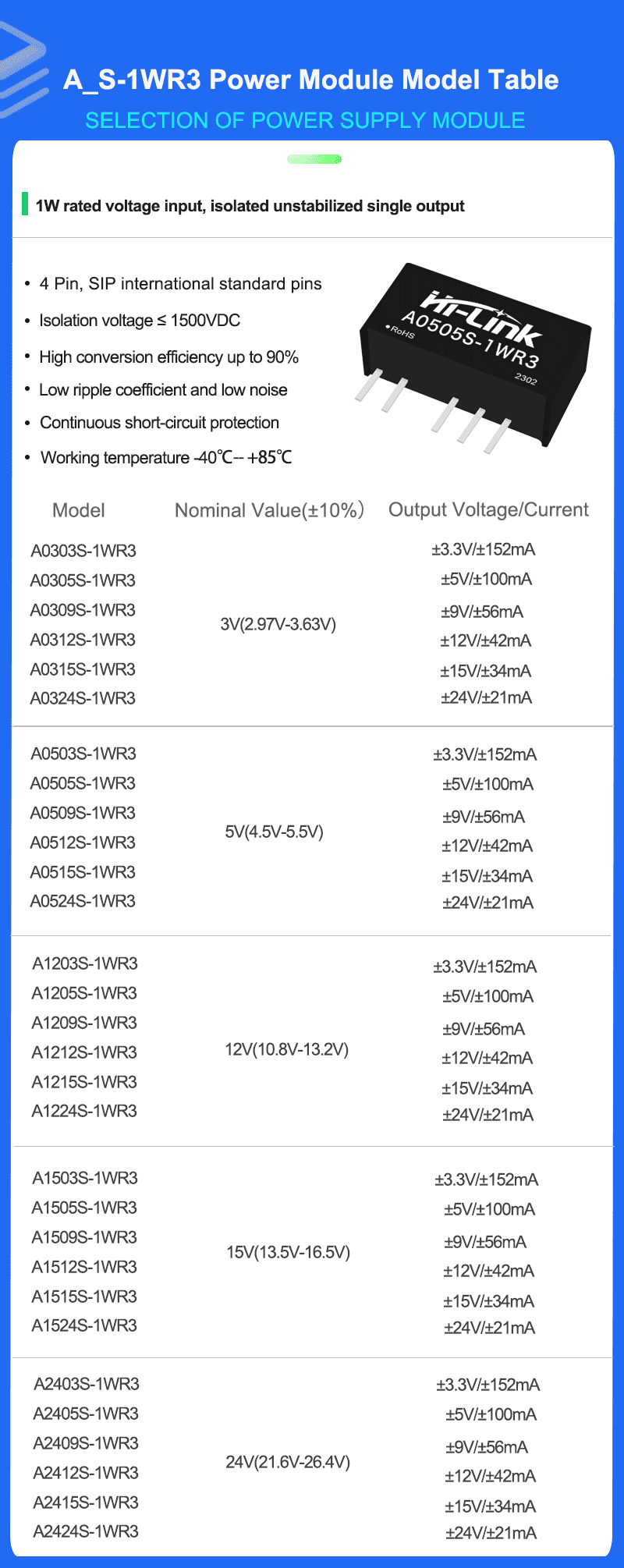

Product Details

Download files:

https://d.hlktech.net/Mobile/Download

Product Feature

1. Fixed voltage input, isolated and regulated output, power 1W

2. isolation voltage≤1500VDC

3. Low static current and high conversion efficiency

4. Low ripple, low noise

5. output short-circuit protection ：Sustainable short circuit protection, automatic recovery

6. operating temperature range ：-40°C~+85°C

7. Small SIP package，plastic shell

8. High reliability and long life design,continuous working time MTBF≥3.5 million hours (3500000Hrs)

Enviroment Condition

Project name	Qualification	Unit	Notes
Working enviroment temperature	-40—+85	℃
Storage temperture	-40—+80 ℃	℃
Relative humidity	5—95	%
Heat dissipation mode	natural cooling
Atmospheric pressure	80—106 Kpa	Kpa
Vibrate	Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes		Meet the requirements of secondary road transportation

Input Characteristics

Items	Working conditions	Min.	Typ.	Max.	Unit
Input current (fully loaded/ unloaded)	3.3VDC Input	--	378/6	--/12	mA
	5VDC Input	--	224/5	--/10
	12VDC Input	--	93/3	--/5
	15VDC Input	--	74/2	--/4
	24VDC Input	--	47/1	--/2
Reflected Ripple Current	4.5	--	15	--	mA
Impulse voltage (Isec.max)	3.3VDC Input	-0.7	--	5	VDC
	5VDC Input	-0.7	--	9
	12VDC Input	-0.7	--	18
	15VDC Input	-0.7	--	21
	24VDC Input	-0.7	--	30
Input filter type		Capacitive filtering
Hot plug		Not available

Output Characteristics

Items	Working and test conditions		Min.	Typ.	Max.	Unit
Output load	Load percentage		10	--	100	%
Output VoltageAccuracy	Refer to Error Envelope Curve		--	--	±15.0	%
Linear adjustment rate	Input voltage variation ±1%	3.3V Output	--	--	±1.5	%
Linear adjustment rate	Input voltage variation ±1%	Others	--	--	±1.2	%
Load Regulation	10%~100% Load	3.3VDC Output	--	18	12	%
		5VDC Output	--	12		%
		9VDC Output	--	8		%
		12VDC Output	--	7		%
		15VDC Output	--	6		%
		24VDC Output	--	5		%
Ripple & Noise	Pure resistive load, 20MHz bandwidth, peak-to-peak		--	30	80	mVp-p
Temperature Drift Coefficient	Full load		--	--	±0.03	%/°C
Output short circuit protection	Continuous short circuit protection, automatic recovery
Note: ①The test method of ripple and noise is twisted pair test method.

Typical Application Circuits

1. General application:

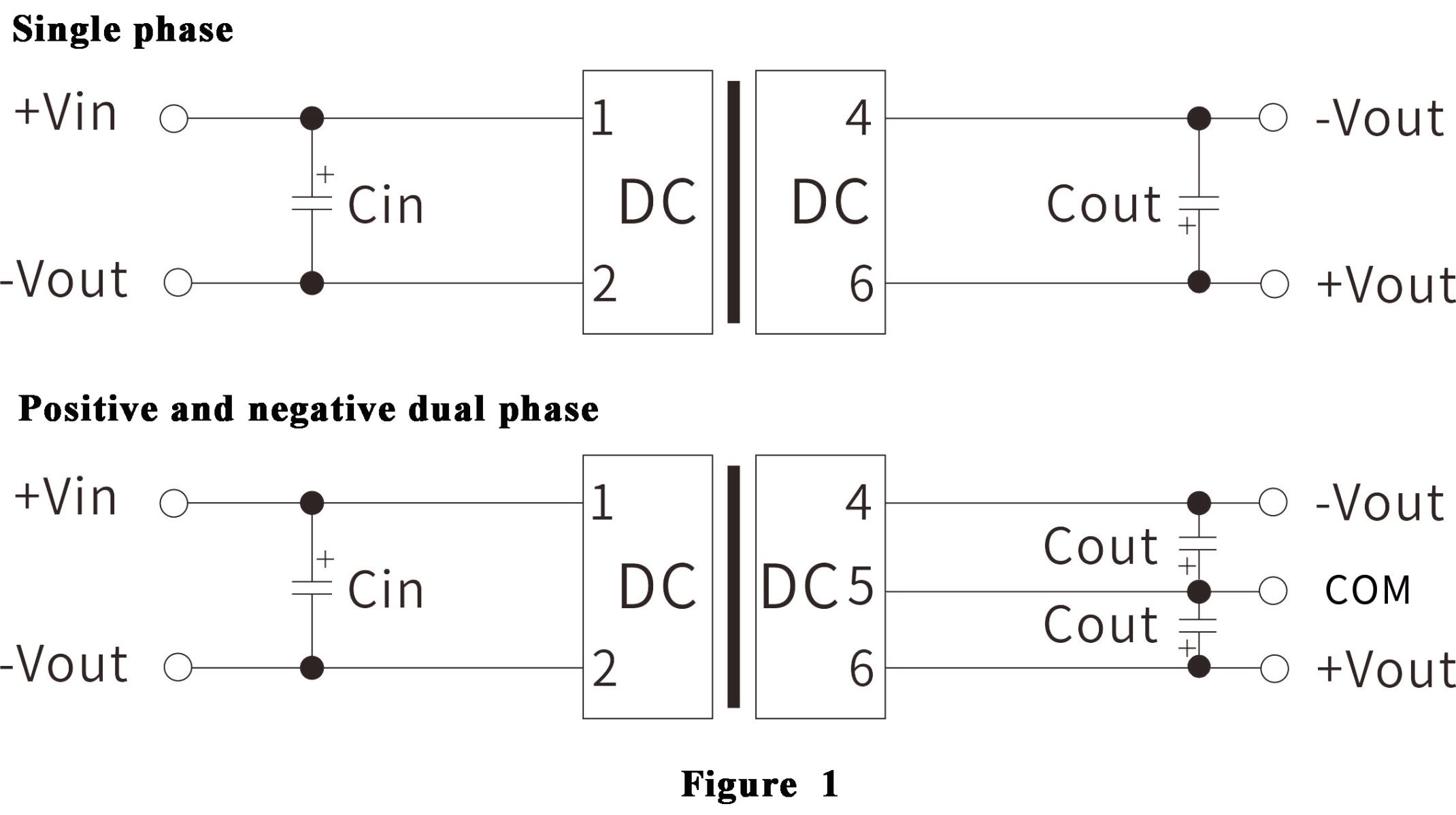

If it is required to further reduce the input and output ripple, a capacitor filter network can be connected to the input and output

ends, and the application circuit is shown in Figure 1.

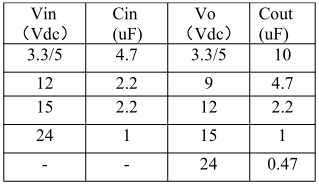

However, attention should be paid to the selection of appropriate filter capacitors. If the capacitor is too large, it is likely to

cause startup problems. For each output, under the condition of ensuring safe and reliable operation, the recommended

capacitive load value is shown in Table 1

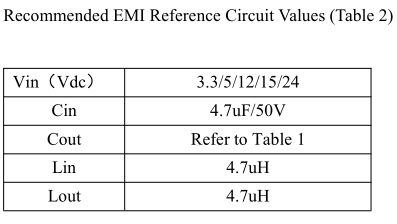

EMI typical application circuit

Notes：Output Load Requirements

In order to ensure that the module can work efficiently and reliably, the minimum output load cannot be less than 10% of the rated load when in use. If the power you need is really small, please connect a resistor in parallel between the positive and negative poles of the output terminal (the sum of the actual power used by the resistor is greater than or equal to 10% of the rated power and the rated power of the selected resistor must be greater than 5 times the actual power used, otherwise the temperature of the resistor will be higher).

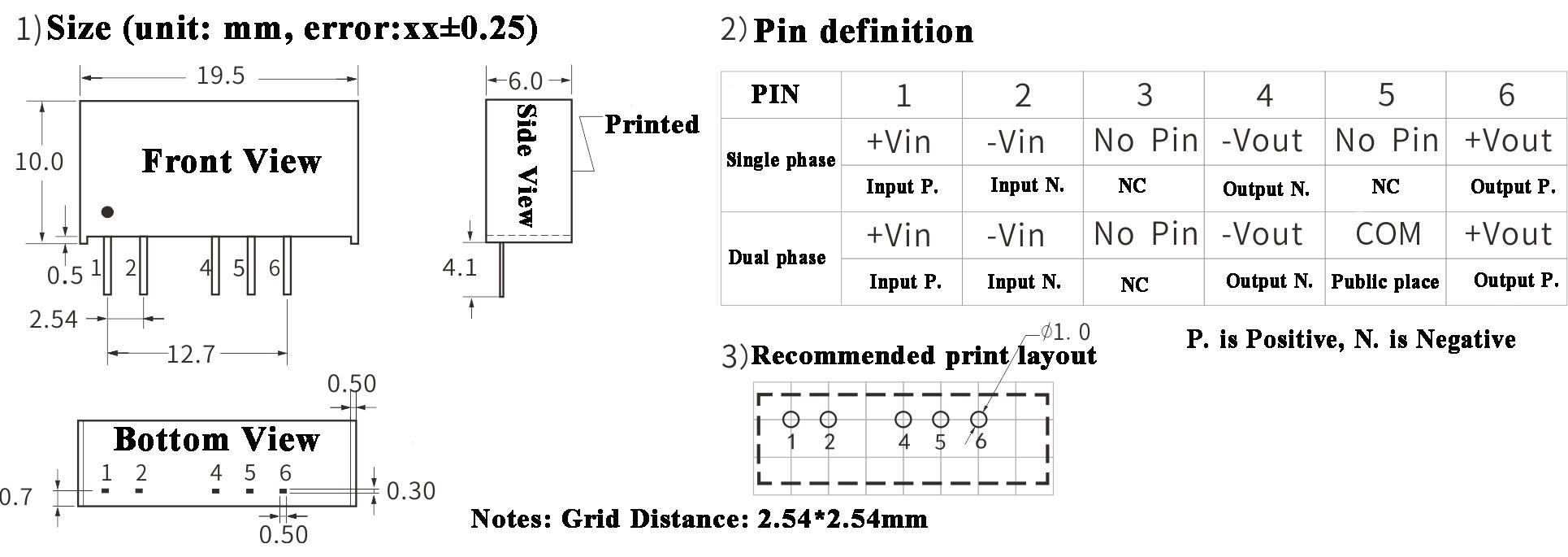

Product appearance size and pin definition, recommended printing layout
