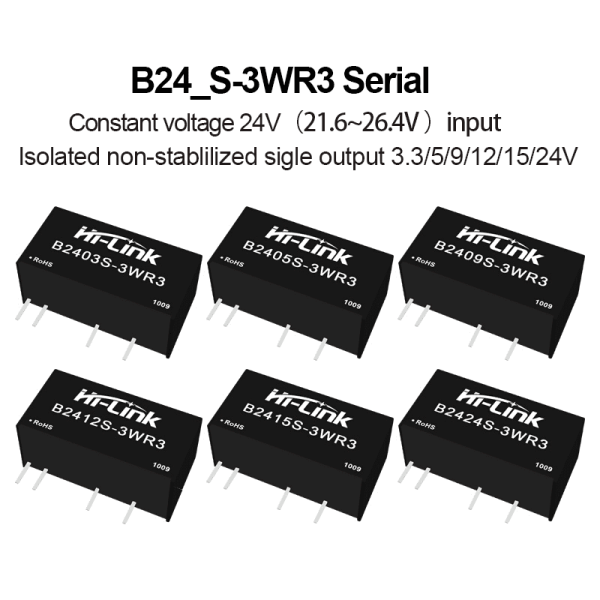

B2405S-3WR3 power module B2403/B2409/B2412/B2415/B2424S-3WR3 isolated non stabilized voltage power converter

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

Quantity:

Product Details

Download files:

https://d.hlktech.net/Mobile/Download

Product Feature

Constant voltage input, isolatedunregulated output, 3W power
Isolation voltage: 1500VDC
Low no-load power consumption: 0.025W
Efficiency: up to 90% (Typ.)
Working temperature: -40°C~+85°C
MTBF > 3.5 million hours
Output short circuit protection: sustainable short circuit protection,automatic recovery
Small SIP package, Plastic housingInternational standard pin out
Ripple/noise (20MHz bandwidth)30mVp-p

Input Characteristics

Item	Working conditions	Min.	Typ.	Max.	Unit
Input current (full load/no load)	5VDC Input Series	--	682/5	--/10	mA
	9VDC Input Series	--	379/5	--/10
	12VDC Input Series	--	284/2	--/5
	15VDC Input Series	--	227/2	--/4
	24VDC Input Series	--	142/1	--/2
Reflection ripple current		--	15	--	mA
Impulse voltage（1sec.max.)	5VDC Input Series	-0.7	--	9	VDC
	9VDC Input Series	-0.7	--	15
	12VDC Input Series	-0.7		18
	15VDC Input Series	-0.7	--	21
	24VDC Input Series	-0.7	--	30
Input filter type		Capacitance filter type
Hot plugged		Non-support

Output Characteristics

Items	Working and testing condition		Min.	Typ.	Max.	Unit
Output load	Load percetage		10	--	100	%
Output Voltage Accuracy	See error envelope graph		--	--	±15.0	%
Linear adjustment rate	Input voltage variation ±1%	3.3V output	--	--	±1.5	%
Linear adjustment rate	Input voltage variation ±1%	Others	--	--	±1.2	%
Load adjustment rate	10%~100% load	5VDC Output	--	12	--	%
		9VDC Output	--	8	--	%
		12VDC Output	--	7	--	%
		15VDC Output	--	6	--	%
		24VDC Output	--	5	--	%
Ripple & Noise	Pure resistive load, 20HMz bandwidth, peak-to-peak		--	30	80	mVp-p
Temperature Drift Coefficient	Full load		--	--	±0.03	%/℃
Output short circuit protection	Continuous short circuit protection, automatic recovery
Notes: Ripple and Noise Test Methods Twisted Pair Test Method

Note:

1、The above is only a list of typical products. If you need products beyond the list, please contact our sales. 2、The maximum capacitive load indicates the maximum capacitive load that + VO or - vo can be connected to,If the value is exceeded, the product will not start normally..

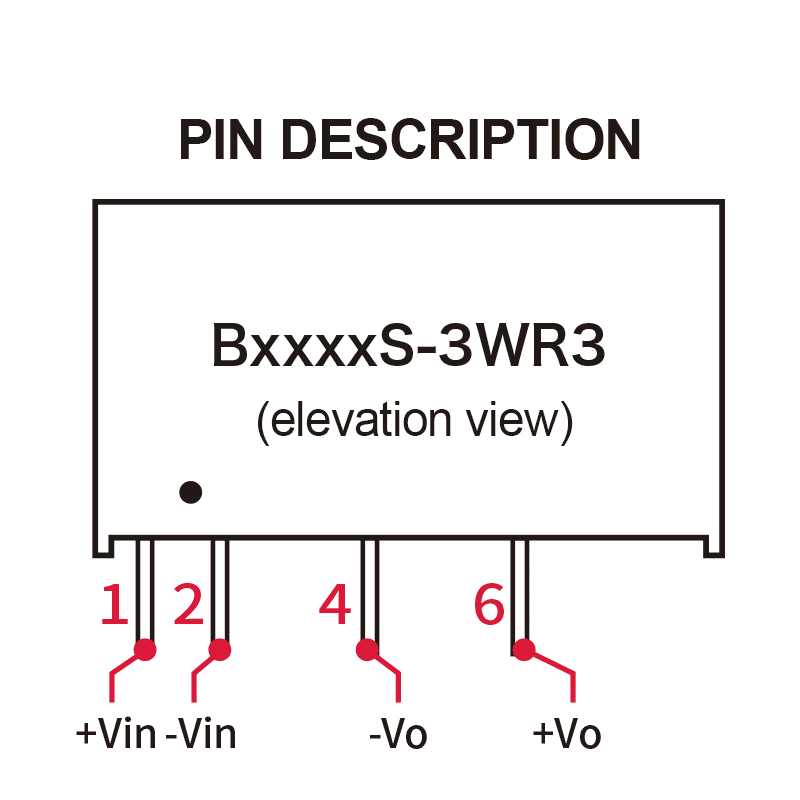

Pin description

B24_S-3WR3-PIN DEFINITION 拷贝

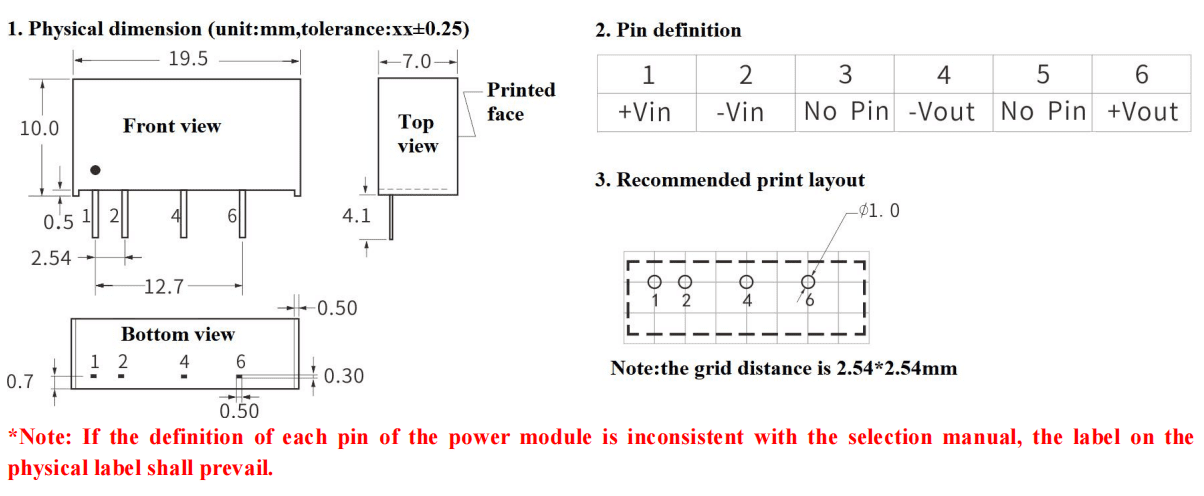

Dimension

dimension

Notes：More details please feel free to contact hi-link team.
