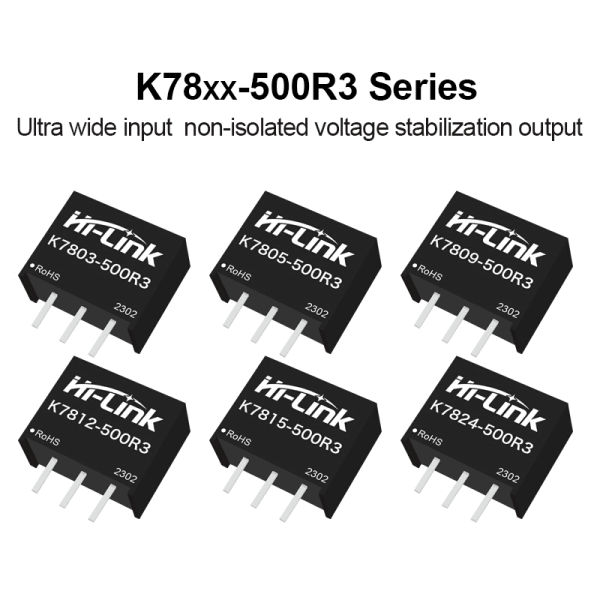

K7805-500R3/K7803-500R3/K7812-500R3 24V to 3.3V 9V 5V 12V 15V DC DC Non-isolated voltage stabilization power module

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

Quantity:

Product Details

Download files:

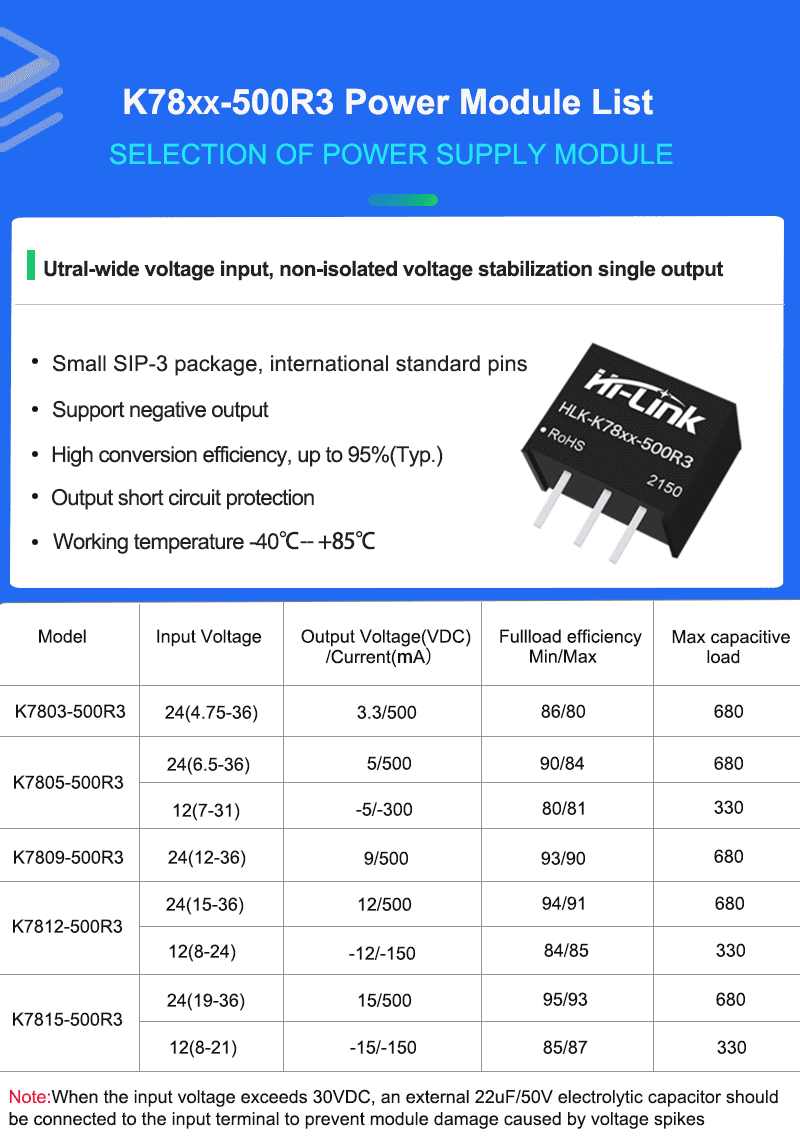

Product Feature

1. Small SIP-3 package, international standard pin

2. Transfer efficiency up to 95%

3. Support negative output

4. Output short-circuit protection

5. Operating temperature range ：-40°C~+85°C

Input Characteristics

Output Characteristics

Project name	Working and testing condition		Min.	Typ.	Max.	Unit
Output Voltage Accuracy	full load, input voltage range	K7803-500R3	--	±2.0	±4.0	%
Output Voltage Accuracy	full load, input voltage range	others	--	±2.0	±3.0	%

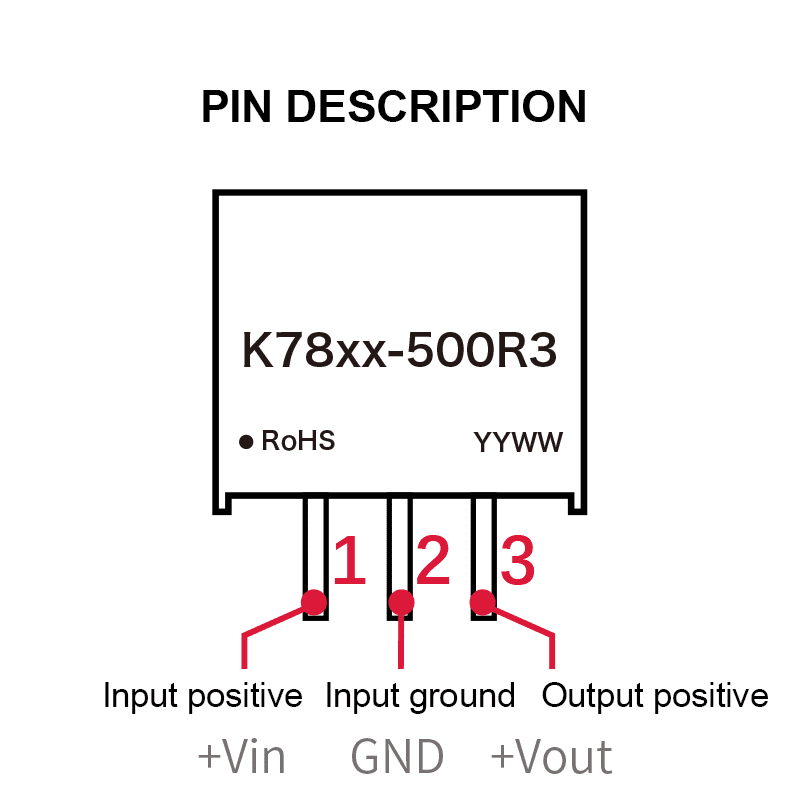

pin description 拷贝

More details please feel free to contact hi-link team.
