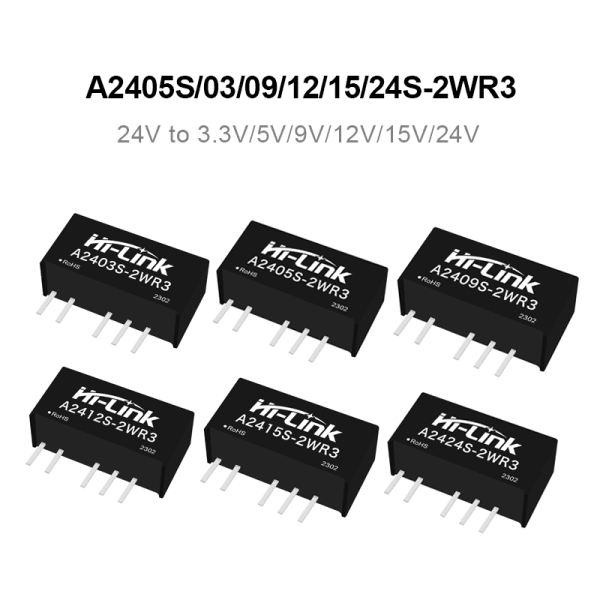

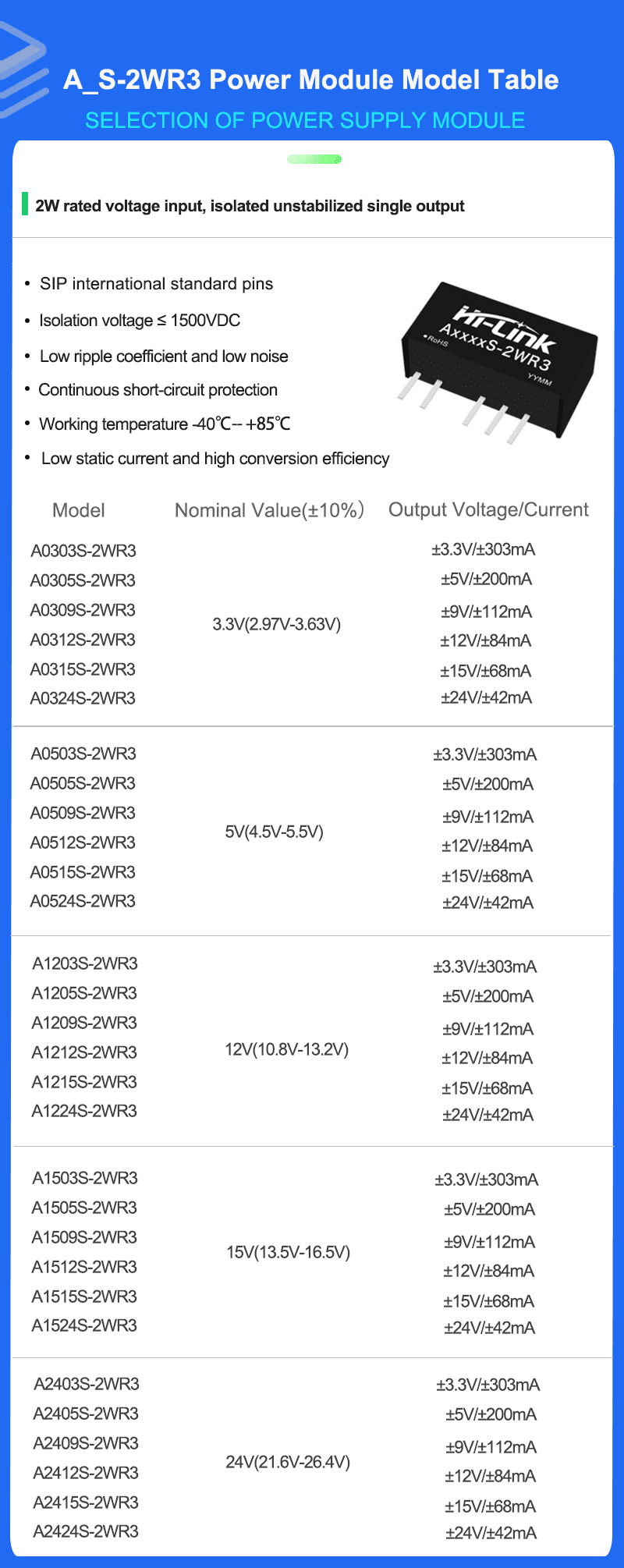

A2405S-2WR3/A2403S/A2412S/A2415S/A2424S-2WR3 Dual output 24V to 3.3V/5V/9V/12V/15V/24V 2W DC to DC power module/converter

Product Details

Download files:

https://d.hlktech.net/Mobile/Download

Product Feature

1. characteristic:Constant voltage input, isolated non stabilized voltage single output,2W

2. Isolation voltage 1500VDC

3. Low static current and high conversion efficiency

4. Ripple/noise (20MHz bandwidth): 30mVp-p (Typ.)

5. Output short-circuit protection: continuous short circuit protection, automatic recovery

6. The voltage of the input power supply is relatively stable.（Voltage variation range±10%Vin）

7. Operating temperature range ：-40°C~+85°C

8. Small SIP package

9. International standard pin，direct installation of PCB board.

10. High reliability and long life design,continuous working time MTBF≥3.5 million hours (3500000Hrs)

Enviroment Condition

Project name	Qualification	Unit	Notes
Working enviroment temperature	-40—+85	℃
Storage temperture	-40—+125 ℃	℃
Relative humidity	5—95	%
Heat dissipation mode	natural cooling
Atmospheric pressure	80—106 Kpa	Kpa
Ripple & Noise	30/80(max)	Mvp-p

Input Characteristics

Item	Working conditions	Min.	Typ.	Max.	Unit
Input current (full load/no load)	5VDC Input Series	--	454/5	--/10	m'A
	9VDC Input Series	--	250/5	--/10
	12VDC Input Series	--	186/2	--/5
	15VDC Input Series	--	148/2	--/4
	24VDC Input Series	--	92/1	--/2
Reflection ripple current		--	15	--	m'A
Impulse voltage	3.3VDC Input Series	-0.7	--	5	VDC
	5VDC Input Series	-0.7	--	9
	9VDC Input Series	-0.7	--	15
	12VDC Input Series	-0.7	--	18
	15VDC Input Series	-0.7	--	21
	24VDC Input Series	-0.7	--	30
Input filter type		Capacitance filter type
Hot plugged		Non-support

Output Characteristics

Project name	Working and testing condition		Min.	Typ.	Max.	Unit
Output load	load percentage		10	--	100	%
Output Voltage Accuracy	See Error Envelope Curve		--	--	±15.0	%
Linear adjustment rate	Input voltage variation ±1%	3.3V Input	--	--	±1.5	%
Linear adjustment rate	Input voltage variation ±1%	others	--	--	±1.2	%
Load adjustment rate	10%~100% load	3.3VDC Output	--	18	--	%
		5VDC Output	--	12	--	%
		9VDC Output	--	8	--	%
		12VDC Output	--	7	--	%
		15VDC Output	--	6	--	%
		24VDC Output	--	5	--	%
Ripple & Noise	Pure resistive load, 20HMz bandwidth, peak-to-peak		--	30	80	mVp-p
Temperature Drift Coefficient	Full load		--	--	±0.03	%/℃
Output short circuit protection	Continuous short circuit protection, automatic recovery		--
Notes: Ripple and Noise Test Methods Twisted Pair Test Method

Note:

1、The above is only a list of typical products. If you need products beyond the list, please contact our sales. 2、The maximum capacitive load indicates the maximum capacitive load that + VO or - vo can be connected to,If the value is exceeded, the product will not start normally..

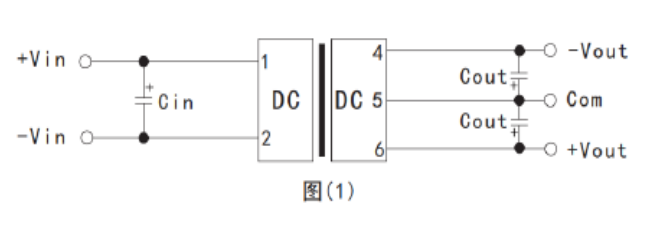

Typical Application Circuits

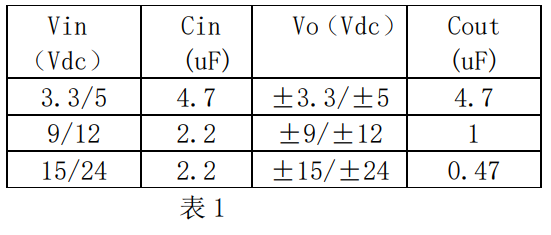

EMC parameter recommendation

Component No.	Function	Recommended value
Cin Capacitance	Filter capacitor	4.7μA/50V
Cout Capacitance	Filter capacitor	Refer to usual application
Lin inductance	Filter inductance	Inductance: 4.7uH
Lout inductance	Cin Capacitance	Inductance: 4.7uH

Notes：Output Load Requirements

In order to ensure that the module can work efficiently and reliably, the minimum output load should not be less than 10% of the rated load.If the power you need is really small, please connect a resistor in parallel between the positive and negative poles of the output terminal (the sum of the actual power used by the resistor is greater than or equal to 10% of the rated power and the rated power of the selected resistor must be greater than 5 times of the actual power used, otherwise the temperature of the resistor will be higher)
