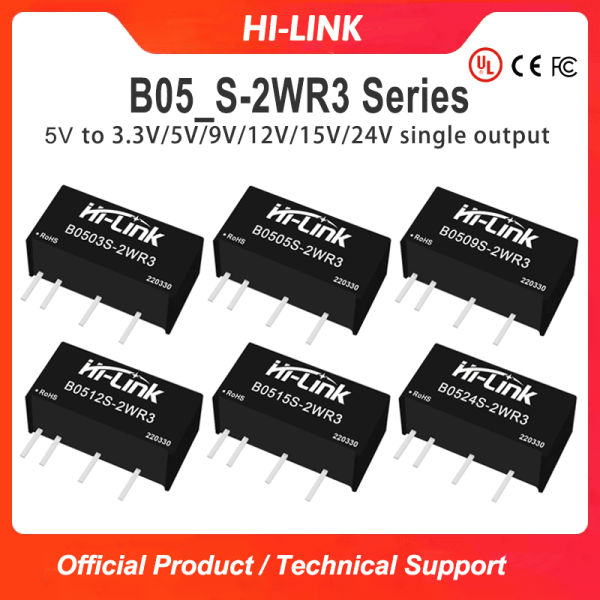

B0505S-2WR3 B0503S/B0509S/B0512S/B0524S-2WR3 DC to DC 5V to 5V/3.3V/9V/12v/24v 2W power converter module passed UL/CE/FCC certifications

Product Details

Download files:

https://d.hlktech.net/Mobile/Download

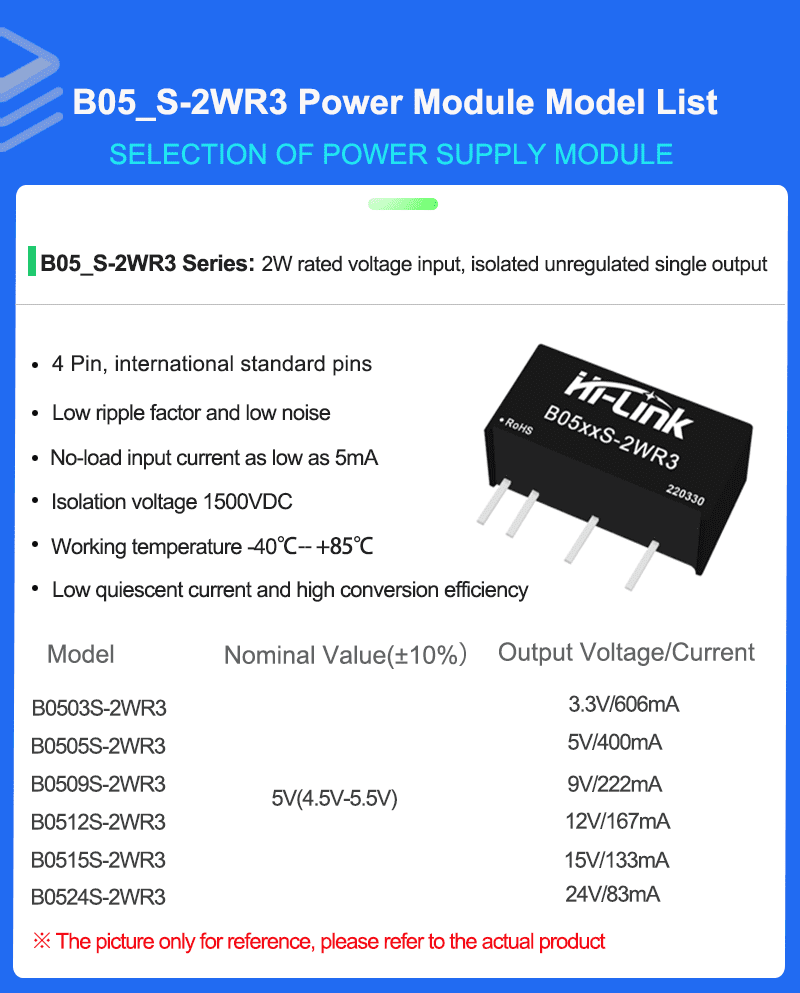

1. characteristic:Constant voltage input, isolated non stabilized voltage single output,2W

2. Isolation voltage 1500VDC

3. Low no-load power consumption 0.025W(Typ.)

4. Transfer efficiency up to 90%

5. Output short-circuit protection: continuous short circuit protection, automatic recovery

6. The voltage of the input power supply is relatively stable.（Voltage variation range±10%Vin）

7. Operating temperature range ：-40°C~+85°C

8. Small SIP package,Plastic Housing

9. International standard pin

10. High reliability and long life design,continuous working time MTBF≥3.5 million hours (3500000Hrs)

Enviroment Condition

Project name	Qualification	Unit	Notes
Working enviroment temperature	-40—+85	℃
Storage temperture	-40—+125 ℃	℃
Relative humidity	5—95	%
Heat dissipation mode	natural cooling
Atmospheric pressure	80—106 Kpa	Kpa
Ripple & Noise	30/80(max)	Mvp-p

Input Characteristics

Item	Working conditions	Min.	Typ.	Max.	Unit
Input current (full load/no load)	5VDC Input Series	--	454/5	--/10	m'A
	9VDC Input Series	--	250/5	--/10
	12VDC Input Series	--	186/2	--/5
	15VDC Input Series	--	148/2	--/4
	24VDC Input Series	--	92/1	--/2
Reflection ripple current		--	15	--	m'A
Impulse voltage	3.3VDC Input Series	-0.7	--	5	VDC
	5VDC Input Series	-0.7	--	9
	9VDC Input Series	-0.7	--	15
	12VDC Input Series	-0.7	--	18
	15VDC Input Series	-0.7	--	21
	24VDC Input Series	-0.7	--	30
Input filter type		Capacitive filtering
Hot plugged		Non-support

Output Characteristics

Project name	Working and testing condition		Min.	Typ.	Max.	Unit
Output load	load percentage		10	--	100	%
Output Voltage Accuracy	See Error Envelope Curve		--	--	±15.0	%
Linear adjustment rate	Input voltage variation ±1%	3.3V Input	--	--	±1.5	%
Linear adjustment rate	Input voltage variation ±1%	others	--	--	±1.2	%
Load adjustment rate	10%~100% load	3.3VDC Output	--	18	--	%
		5VDC Output	--	12	--	%
		9VDC Output	--	8	--	%
		12VDC Output	--	7	--	%
		15VDC Output	--	6	--	%
		24VDC Output	--	5	--	%
Ripple & Noise	Pure resistive load, 20HMz bandwidth, peak-to-peak		--	30	80	mVp-p
Temperature Drift Coefficient	Full load		--	--	±0.03	%/℃
Output short circuit protection	Continuous short circuit protection, automatic recovery		--
Notes: Ripple and Noise Test Methods Twisted Pair Test Method

Note:

1、The above is only a list of typical products. If you need products beyond the list, please contact our sales. 2、The maximum capacitive load indicates the maximum capacitive load that + VO or - vo can be connected to,If the value is exceeded, the product will not start normally..

Typical Application Circuits

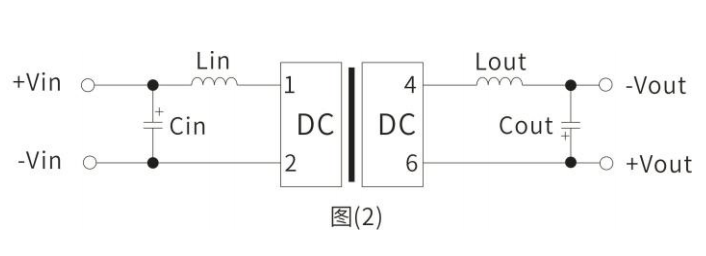

ELECTRIC DIAGRAM

EMC parameter recommendation

Component No.	Function	Recommended value
Cin Capacitance	Filter capacitor	4.7μA/50V
Cout Capacitance	Filter capacitor	Refer to usual application
Lin inductance	Filter inductance	Inductance: 4.7uH
Lout inductance	Cin Capacitance	Inductance: 4.7uH

Notes：Output Load Requirements

In order to ensure that the module can work efficiently and reliably, the minimum output load should not be less than 10% of the rated load.If the power you need is really small, please connect a resistor in parallel between the positive and negative poles of the output terminal (the sum of the actual power used by the resistor is greater than or equal to 10% of the rated power and the rated power of the selected resistor must be greater than 5 times of the actual power used, otherwise the temperature of the resistor will be higher)
