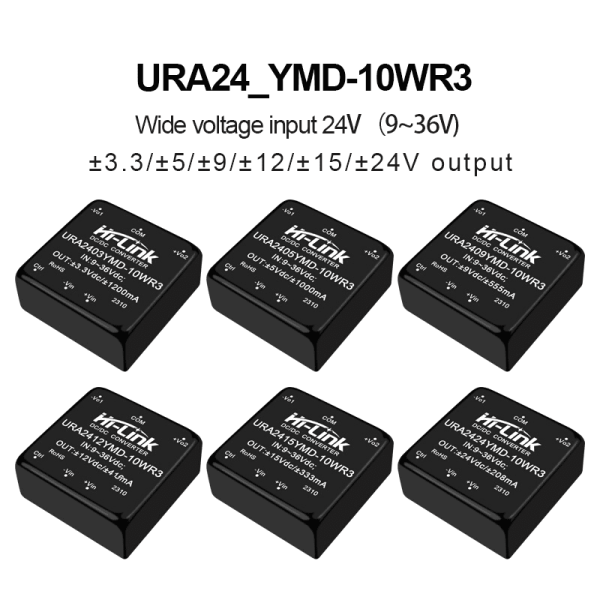

URA2405YMD-10WR3 URA2412/URA2424YMD DCDC isolated power module 110V to 3.3/9/12/15/24 dual output power converter

Product Details

Download files:

https://d.hlktech.net/Mobile/Download

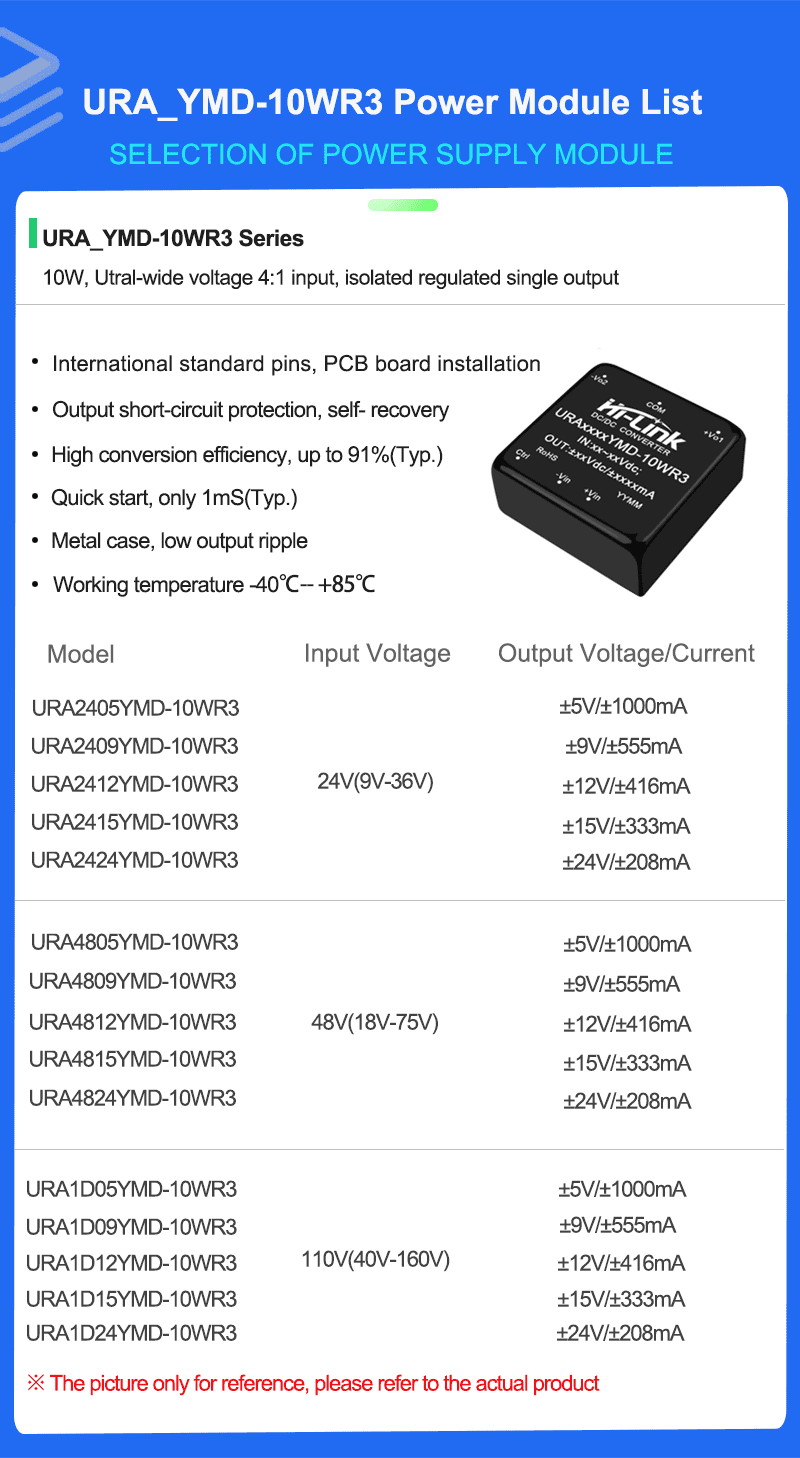

Product Feature

1. Wide input voltage range 4:1, isolated regulated output 10W

2. Isolation voltage 1500VDC

3. Transfer efficiency up to 91%

4. Ultra-long standby power consumption 0.036W(Typle)

5. Quick Start：1mS(Typ)

6. Operating temperature range ：-40°C~+85°C

7. Metal case, low output ripple

8. International standard pin，direct installation of PCB board

9. Output short-circuit protection: continuous short circuit protection, automatic recovery

Enviroment Condition

Project name	Qualification	Unit	Notes
Working enviroment temperature	-40—+85	℃
Storage temperture	-40—+125 ℃	℃
Relative humidity	5—95	%
Heat dissipation mode	natural cooling
Atmospheric pressure	80—106 Kpa	Kpa
Ripple & Noise	50/80(max)	Mvp-p

Input Characteristics

Item	Working conditions		Min.	Typ.	Max.	Unit
Input currency( full loaded/ Unloaded	24VDC Input Series	3.3V	-	402/1	413/2	mA
	24VDC Input Series	others	-	490/1	502/2
	48VDC Input Series	3.3V	-	201/0.5	207/1
	48VDC Input Series	others	-	245/0.5	251/1
	110VDC Input Series	3.3V	-	87/0.3	90/0.5
	110VDC Input Series	others	-	100/0.3	109/0.5
Reflected ripple current	24VDC Input Series		--	40	--
	48VDC Input Series		--	30	--
	110VDC Input Series		--	20	--
Impulse voltage （Isec.max)	24VDC Input Series		-0.7	--	50
	48VDC Input Series		-0.7	--	100
	110VDC Input Series		-0.7	--	200
Start voltage	24VDC nominal input series, nominal input voltage		-	-	9
	48VDC nominal input series, nominal input voltage		-	-	18
	110VDC nominal input series, nominal input voltage		-	-	40
Input undervoltage protection	24VDC nominal input series, nominal input voltage		5.5	6.5	-
	48VDC nominal input series, nominal input voltage		12	15.5	-
	110VDC nominal input series, nominal input voltage		32	36	-
Input filter type			Capacitance filter type
Hot plugged			Non-support

Output Characteristics

Project name	Working and testing condition	+V01			-V02
Project name	Working and testing condition	Min.	Typ.	Max.	Min.	Typ.	Max.
output load	load percentage	0%	-	100%	0%	-	100%
Output Voltage Accuracy		-	±1.0%	±2.0%	-	±2.0%	±3.0%
Linear adjustment rate	input voltage range	-	±2.0%	±0.5%	-	±1.5%	±2.0%
Load adjustment rate	20%~100% rate load, balanced	--	±0.5%	±1.0%	-	±4.0%	±5.0%
Ripple & Noise	Pure resistive load, 20HMz bandwidth, peak-to-peak	--	50mVp-p	80mVp-p	-	50mVp-p	80mVp-p
Output voltage regulation	Input voltage range	-	No adjustment end	-	-	No adjustment endNo adjustment end	-
Output short circuit protection	Continuous short circuit protection, automatic recovery
Notes: Ripple and Noise Test Methods Twisted Pair Test Method

Note:

1、The above is only a list of typical products. If you need products beyond the list, please contact our sales. 2、The maximum capacitive load indicates the maximum capacitive load that + VO or - vo can be connected to,If the value is exceeded, the product will not start normally..

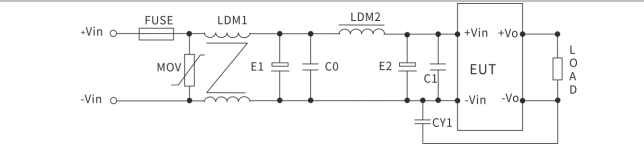

Typical Application Circuits

EMC parameter recommendation

Component No.	Function	Recommended value
FMSE	Slow blowing fuse, selected according to the actual input current of the customer
CY1 safety capacitor	1nF/250Vac

Notes：More details please feel free to contact hi-link team.
