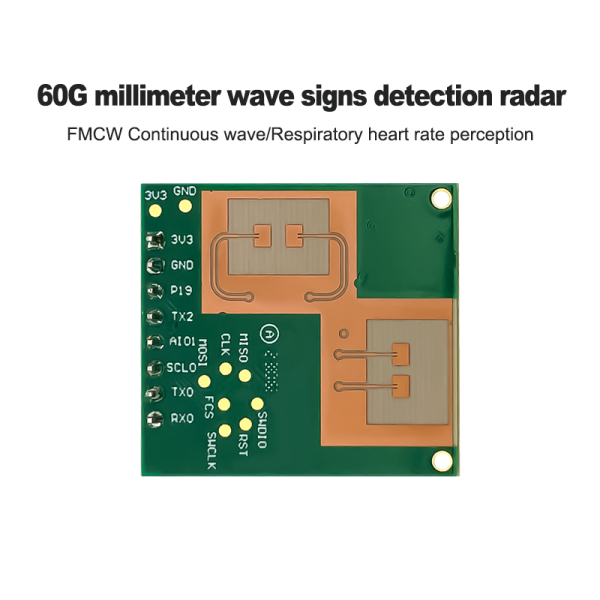

60G Millimeter Wave Respiratory and Heartbeat Detection Radar Module HLK-LD6002 Non-contact Intelligent Monitoring with 2T2R

Product introduction

HLK-LD6002 is a radar sensor module developed based on ADT6101P chip, single chip integrated 57~64GHz radio frequency transceiver system, 2T2R PCB microstrip antenna, 1MB flash, radar signal processing unit, ARM ® Cortex® -M3 kernel. This module is based on the FMCW radar mechanism, to detect the surface reflection radar echo of the human body, combined with the radar signal processing algorithm, to realize the single real-time respiratory heart rate frequency measurement.

Product characteristics

• Radar detection based on FMCW signal

• No contact perception of human Breathing and heart rate

• The maximum detection distance of human Breathing heart rate is 1.5m

• Universal UART interface, to provide the communication protocol

• Reserve multiple groups of IO ports and multiple communication interfaces to support customer

  secondary development, suitable for multiple scenarios

• Small size, only 25*31.5mm, support needle row connection

• Not affected by temperature, humidity, noise, airflow, dust, light and other environment

Applications

• Smart home applications

      According to the respiratory heart rate measurement, to achieve home empowerment

• Health control

      Respiratory heart rate data is monitored in real time

• Wisdom health

      The elderly breathing heart rate monitoring, abnormal immediately report to the police

Specifications

① Functional parameters

② Electrical characteristics

③ RF characteristics

Hardware description

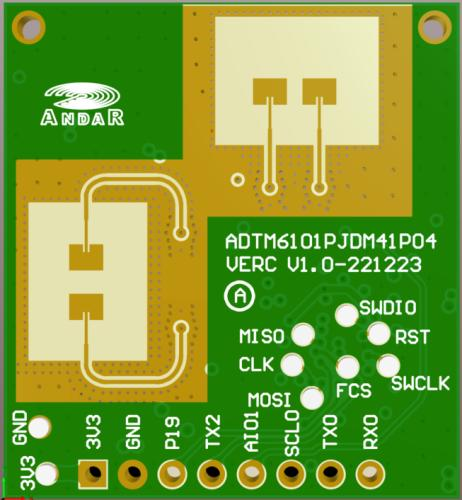

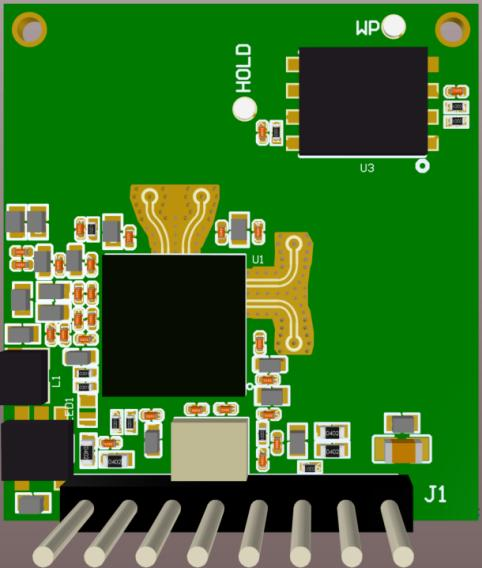

                                                                   Top view                                                                                              Back view

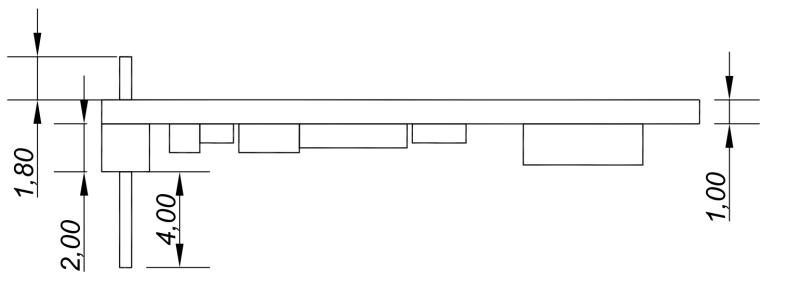

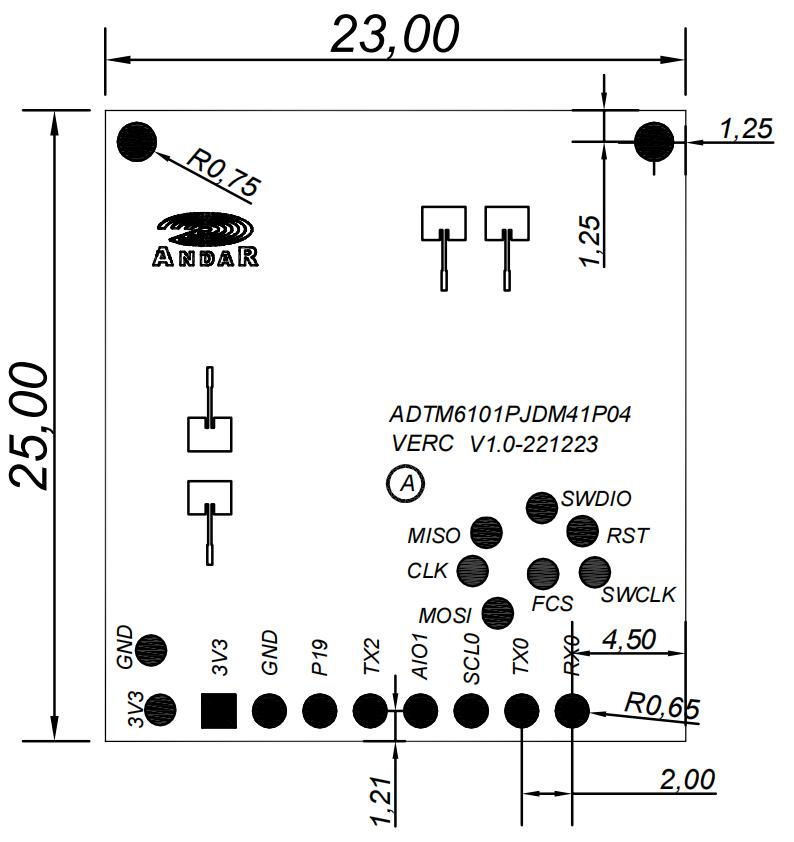

Pin definition
