Hi-link 60G radar sensor module test board LD6001 Test Kit intelligent sensing detection of human body area position, quantity statistics, and walking trajectory

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

Quantity:

Product Details

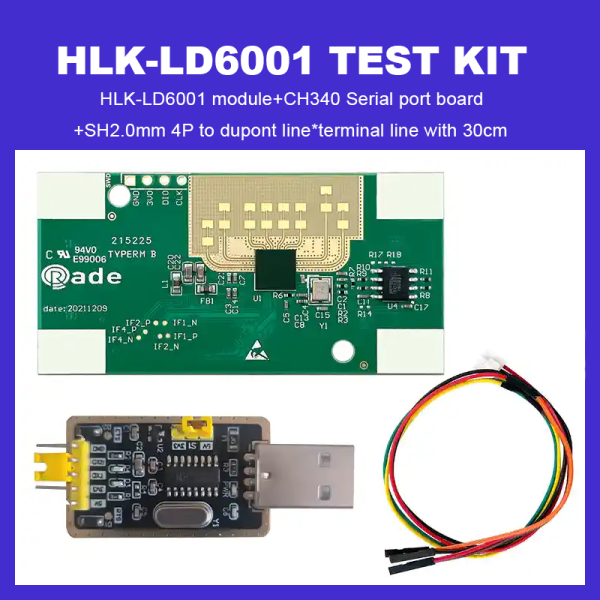

HLK-LD6001-1 拷贝 Product introduction

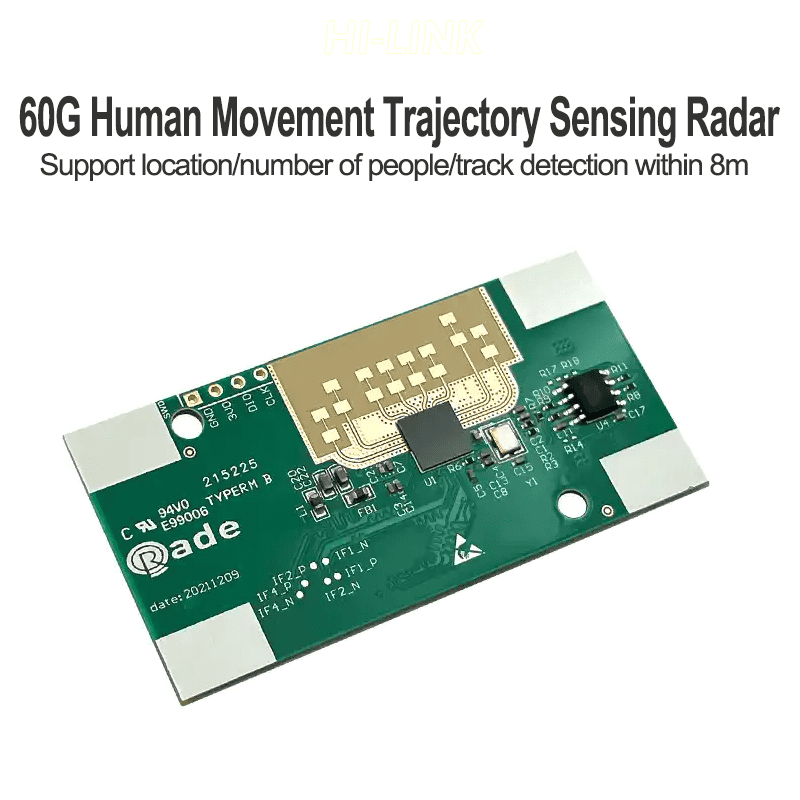

The LD6001 module is a 4T3R (four channel transmitter, three channel receiver) fully integrated 60GHz millimeter wave radar module. Can be used to detect the location and quantity of human body areas (up to 8 people), walking trajectories, etc.

Product parameters

Parameters	Value	Unit	Remark
Working frequency range	60	GHz
Sending voltage	12	dBm
Modulation Type	FMCW	/	Frequency modulated continuous wave
Sweep frequency broadband	4	GHz
Horizontal width of antenna beam	±60	°
Antenna beam elevation width	±30	°
Detect the farthest distance	8	m
Working voltage	5	V
Average power consumption	1.1	W
Working teperature	-15~70	℃
Dimension	60*30	mm
Start time	3	s

Installation requirement

Install the module on a vertical wall with a height of 2.2 meters, and tilt the front of the module (with the antenna facing upwards) at an angle of 10 degrees. It is generally recommended to install it according to this method for the most ideal effect, but it can also be installed slightly higher or the angle can be adjusted slightly as needed. The actual test effect shall prevail.

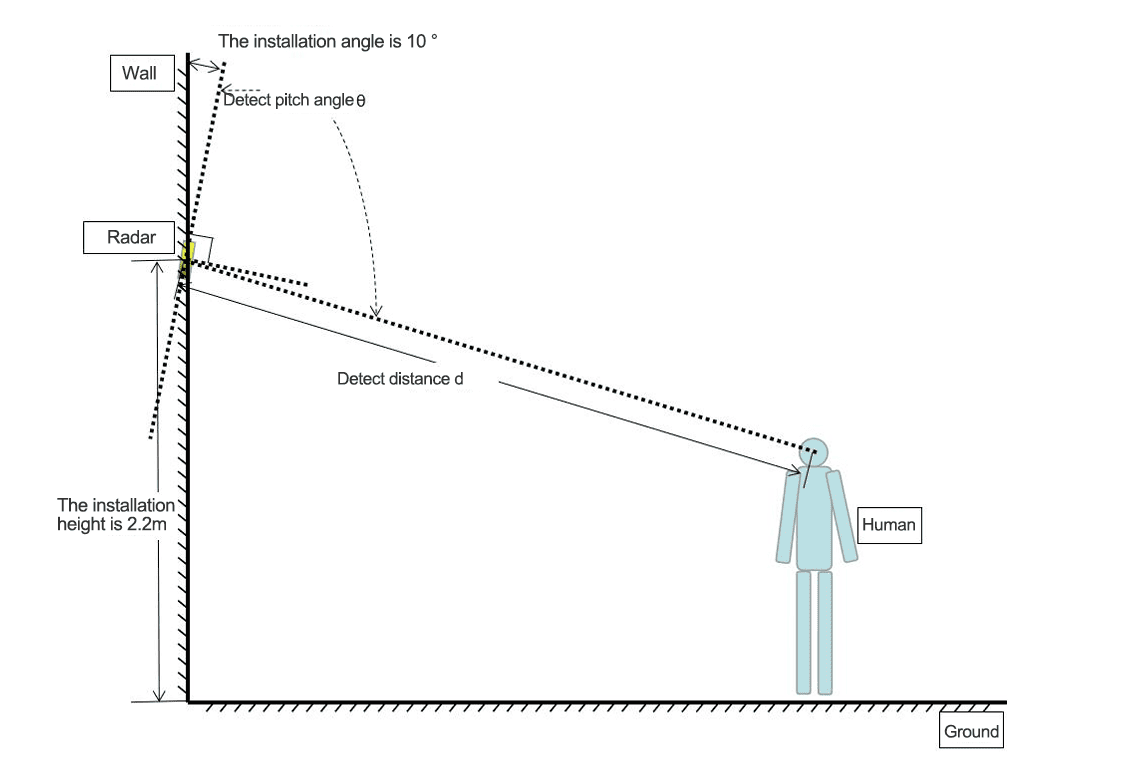

The schematic diagram of the target installation effect, as well as the distance, horizontal angle, and pitch angle, are shown in the following figure:

LD6001 pic 拷贝
